GE Inverter Snubber Board DS200IQXSG1AAA

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a DS200IQXSG1AAA to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

DS200IQXSG1AAA

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (4)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (4)
  • Click a star to rate this product
GE Inverter Snubber Board DS200IQXSG1AAA

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a DS200IQXSG1AAA to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

DS200IQXSG1AAA Technical Specifications

Manufacturer GE General Electric
Part Number DS200IQXSG1AAA
Product Type PC Board Line Protection Card
Series Mark V

Product Description

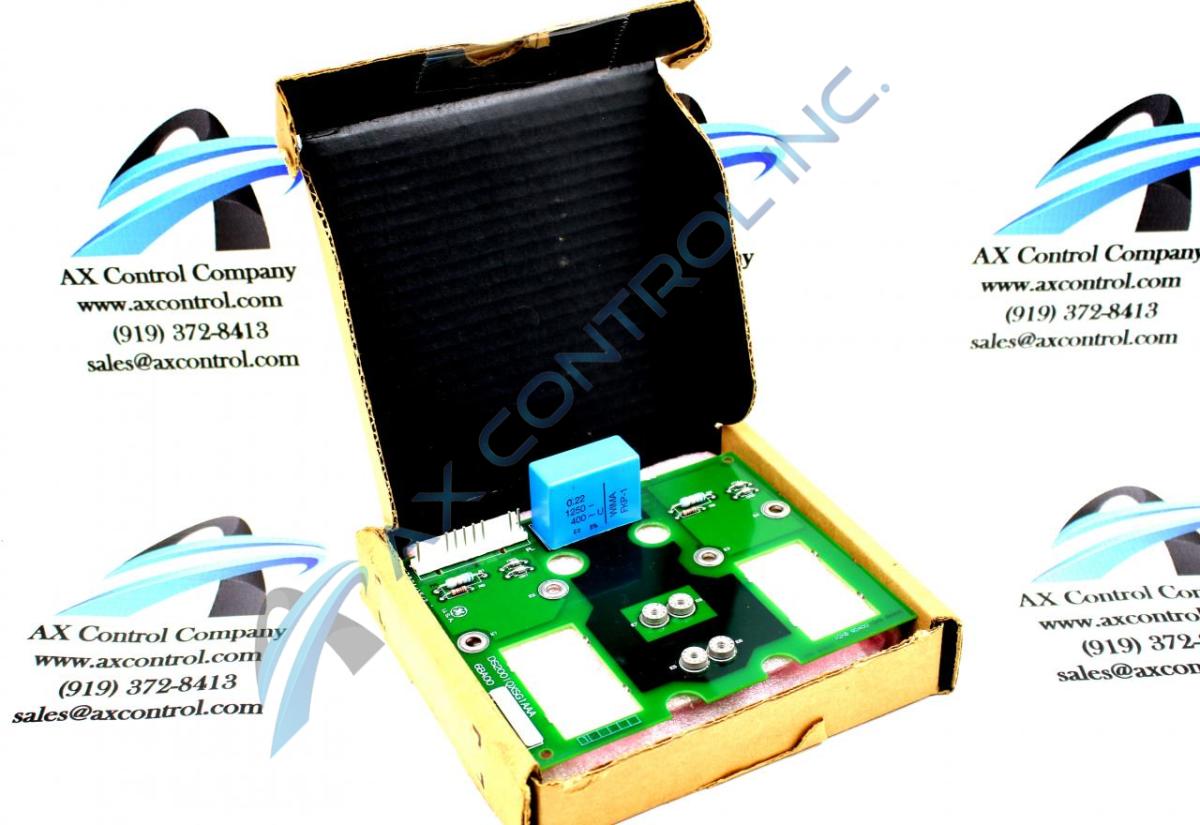

The GE Inverter Snubber Board DS200IQXSG1AAA features 8 terminal connectors. The terminals are labeled E1 through E8. The GE Inverter Snubber Board DS200IQXSG1AAA also contains 1 8-pin connector and 1 film capacitor mounted on the board.  The board is one of multiple boards installed in the board cabinet. The dimensions are 6.25 by 5 inches and the four holes in the corners align with matching installation holes in the board rack. If new screws are not available, use the same screws that secured the old board.

Because of the heat generated by the boards and the moving parts in the drive, cooling is an important consideration when the drive is installed. The drive must have a source of clean air that can freely flow through the drive to keep the components within the allowed temperature range.  The drive is designed so that cool and clean air enters the drive at the bottom and rises through the interior of the drive. It passes around and over the components and draws heat away from the drive.

Another consideration is that the drive not be near other equipment that generates heat and that the walls surrounding the drive are not heated by devices on the other side of the walls.

If the drive become too hot and exceeds the temperature range, an over temperature condition is detected and the drive will automatically stop. This safety features will prevent damage to the components. It also prevents a fire hazard from developing.



Frequently Asked Questions about DS200IQXSG1AAA

How many pins is DS200IQXSG1AAA's terminal strip?
DS200IQXSG1AAA has an 8-pin terminal strip. The pins on DS200IQXSG1AAA's terminal strip are divided, though. There is one pin on the far left of DS200IQXSG1AAA, 5 pins in the middle of DS200IQXSG1AAA's strip, and 2 pins to the left of DS200IQXSG1AAA's terminal strip.
What kind of battery does DS200IQXSG1AAA have?
DS200IQXSG1AAA has a WIMA FKP-1 0.22, 1250, 400~U battery. The battery on DS200IQXSG1AAA is light blue in color and is labeled with C5 on DS200IQXSG1AAA.
How is DS200IQXSG1AAA designed?
DS200IQXSG1AAA is designed so that there are two rectangular openings on each side of the bottom of DS200IQXSG1AAA, and two circular openings surrounding the battery in the top center of DS200IQXSG1AAA. This is so that DS200IQXSG1AAA can work with other boards and drives.
