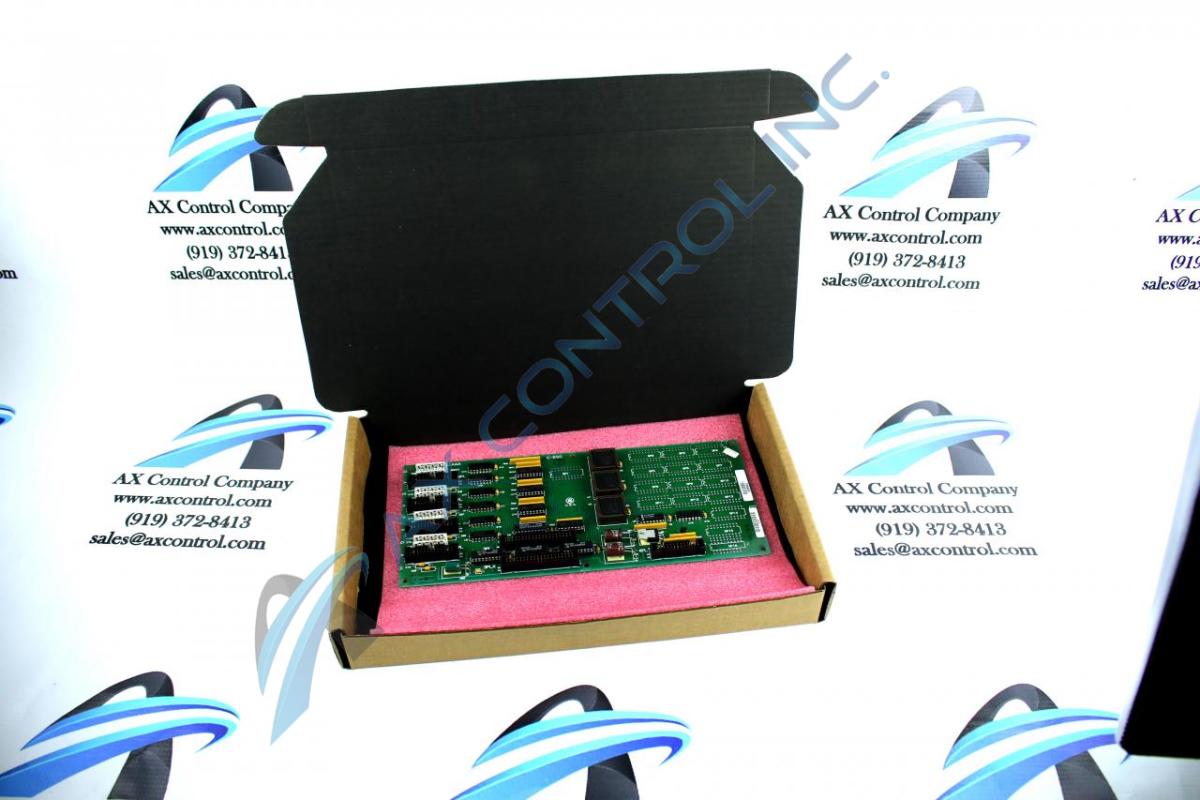

The DS200IOEAG1AAA I/O Expansion Board was manufactured by General Electric, for use in the Mark V Series.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a DS200IOEAG1AAA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200IOEAG1AAA
  • SKU: DS200IOEAG1AAAGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200IOEAG1AAA Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200IOEAG1AAA
Functional Description I/O Expansion Board
Functional Acronym IOEA
PCB Coating Normal Coating
Functional Revision 1 A
Functional Revision 2 A
Artwork Revision A

About the DS200IOEAG1AAA

This DS200IOEAG1AAA printed circuit board product offering, as described above, was originally manufactured by General Electric, specifically for placement in their Mark V Turbine Control System Series. As you can probably deduce from its full extended series name, this DS200IOEAG1AAA product's greater Mark V Series has specific applications in the management and control systems of popular wind, gas, and steam turbine automated drive assemblies. While pertinent to relatively newly-developed alternative energy technologies, the Mark V Series that this DS200IOEAG1AAA PCB belongs to has to be considered a now-obsolete legacy product series, as its manufacture has been discontinued due to this obsolescence in one of the many years since its original product release. While generally not updated as a GE legacy series, the Mark V Turbine Control System Series is at least competitive in one respect as it exists as one of the final General Electric product series to make use of their patented Speedtronic control system technology first released with the conception of the Mark I Series in the mid to late 1960s. This DS200IOEAG1AAA printed circuit board or PCB for short does not exist as the original product of its intended Mark V Series functional role, as it edits the DS200IOEAG1AAA parent I/O Expansion Board through its normal Mark V Series assembly's acceptance of two functional product revisions and an artwork configuration revision.

Hardware Tips and Specifications

This DS200IOEAG1AAA product's specific functional role is adopted by its normal Mark V Series assembly's adoption of a particular unique series of hardware component and hardware component specifications. The GE I/O Expansion Board DS200IOEAG1AAA features five 26-pin connectors and two 40-pin connectors. The GE I/O Expansion Board DS200IOEAG1AAA also is populated with 3 PROM connectors identified as C6, C7, and C8. When you replace the GE I/O Expansion Board DS200IOEAG1AAA you will move the PROM modules from the old board to the new board. In that way when you power on the drive with the new board installed, the configuration will be the same and the drive will operate the same. However, you must make sure you install the PROM modules in the right connectors. To do that, remove one PROM module at a time and note the connector number associated with it. Then install the PROM in the identical connector on the new board. The inclusion of this DS200IOEAG1AAA product offering's PROM module installation procedure and specifications here is reminiscent of this DS200IOEAG1AAA device's Mark V legacy product series status, as this status is the root cause of this DS200IOEAG1AAA PCV's lack of pertinent instructional manual materials on the internet for research purposes of this DS200IOEAG1AAA personalized product page. With this being true, the DS200IOEAG1AAA functional product number itself can be considered a strong primary source of DS200IOEAG1AAA Board hardware component and component specification information, as it codes for specific DS200IOEAG1AAA Board details in a series of consecutive functional naming chunks. For starters, the DS200IOEAG1AAA functional product number begins with the DS200 series tag delegating this DS200IOEAG1AAA PCB's normal Mark V Series assembly as well as its domestic original manufacture location. Some of the other DS200IOEAG1AAA details revealed through its functional product number include:

  • The IOEA functional product abbreviation
  • A normal PCB coating style
  • A group one Mark V Series product grouping
  • An A-rated primary functional product revision
  • An A-rated secondary functional product revision
  • An A-rated artwork configuration revision

This DS200IOEAG1AAA PCB's IOEA functional product abbreviation listed above was formulated by General Electric to exist as a convenient promotional and conversation shorthand alternative to the lengthy DS200IOEAG1AAA product number itself. One other primary method of identifying this DS200IOEAG1AAA product offering's hardware component offerings is a thorough, AX Control Technician-guided visual product inspection. After a visual inspection, you might find that the new DS200IOEAG1AAA board seems different and the components are located in different places on the board. Also the components might be different colors or be in different shapes. That doesn’t mean that the new board is incompatible with the old board. During the design of a new version, all the improvements to the board are added and this might lead to changes to the board design. However, extensive product testing occurs to ensure that even with multiple updates and design changes, the newest board will be compatible even with the oldest board of the same model. But, if the PROM connectors are located in different locations, you can use the identifiers to know where to install the PROM modules for error free results. Before making any ultimate purchase decision on this DS200IOEAG1AAA PCB, it is of paramount importance to realize that its originally-introduced performance specifications and dimensions have surely been impacted by its DS200IOEAG1 parent circuit board's acceptance of three significant A-rated functional revisions.

Frequently Asked Questions about DS200IOEAG1AAA

How many terminal strip connectors are on DS200IOEAG1AAA?
DS200IOEAG1AAA has 7 terminal strip connectors. DS200IOEAG1AAA has six 26-pin terminal strips and DS200IOEAG1AAA has two 40-pin terminal strips.
How many EPROMs are on DS200IOEAG1AAA?
DS200IOEAG1AAA has three EPROMs. The EPROMs on DS200IOEAG1AAA are located on the left-middle side of DS200IOEAG1AAA.

Reviews For DS200IOEAG1AAA

Internal Review
(5.0)

This DS200IOEAG1AAA printed circuit board product offering offers a number of different Mark V Series connector components, which make sense given its specific functional role as an I/O Expansion Board. This DS200IOEAG1AAA PCB is not the original Mark V Series product of its functionality, as it utilizes three A-rated significant revisions. While this DS200IOEAG1AAA PCB's revisions are all seemingly identical, they are not as two revisions exist as functional product revisions and the third an artwork configuration revision. - AX Control Lead Technician

Repair Services For DS200IOEAG1AAA

Type Lead Time Price Action
Repair Service 1-2 weeks $765

Our highly skilled technicians can repair your DS200IOEAG1AAA. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
