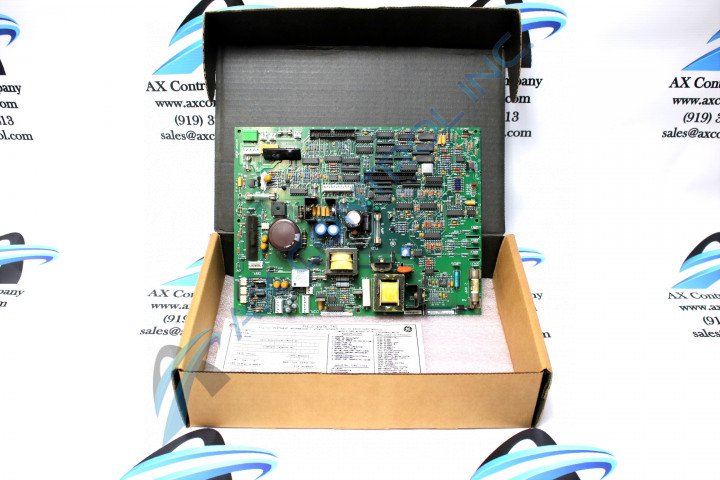

The DS200IMCPG1CGCD IGBT Power Supply Board was manufactured by General Electric for the Mark V Turbine Control System Series. The Mark V Series is designed for control and management systems of wind, gas, and steam turbine automated drive assemblies. This series is now an obsolete legacy product, discontinued by GE.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200IMCPG1CGC to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200IMCPG1CGC
  • SKU: GBTC-11379
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200IMCPG1CGC Technical Specifications

Manufacturer General Electric
Series Mark V DS200
Part Number DS200IMCPG1CGC
Functional Description IGBT Power Supply Board
Functional Acronym IMCP
PCB Coating Normal Coating
Functional Revision 1 C
Functional Revision 2 G
Artwork Revision C
Weight 5 lbs

About the DS200IMCPG1CGC

  • The DS200IMCPG1CGC is a Power Supply Interface Board manufactured by General Electric for their Mark V Turbine Control System Series.
  • The Mark V Series is designed for control and management systems of wind, gas, and steam turbine automated drive assemblies.
  • This series is now an obsolete legacy product, discontinued by GE.
  • Despite its obsolescence, the Mark V Series is notable as one of the final GE Mark series to incorporate patented Speedtronic control system technology.
  • Functionally, this board is an IGBT (Insulated Gate Bipolar Transistor) Power Supply Board.
  • It's a revised product; the DS200IMCPG1 parent Power Supply Interface Board was the original and lacks the DS200IMCPG1CGC's three significant product revisions.

Hardware Tips and Specifications
  • The DS200IMCPG1CGC connects via a cable to the 1PL connector on the DS200SDCC Drive Control Board.
  • Its voltage protection and suppression involve standard Mark V Series components like capacitors, resistors, transistors, diodes, and specialized integrated circuits.
  • Due to limited original documentation, the DS200IMCPG1CGC functional product number is a key source of hardware information, indicating:
    • Normal Mark V Series assembly.
    • Domestic original manufacture location (DS200 series tag).
    • IMCP functional product acronym.
    • Group one Mark V Series product grouping.
    • Normal PCB coating style.
    • Full three-fold revision table.

Shipping and Handling Guidelines
  • Before opening the box, inspect it for signs of unacceptable handling (liquid spills, dents).
  • Locate the shipping label to verify the model number and note other identifying information (serial number, catalog number) for future service calls.
  • If not installing immediately, store the board in a safe, accessible place.
  • When ready to install, open the box, note the board is in a protective bag, and handle the board by its edges only, placing it immediately on the empty bag.

Frequently Asked Questions about DS200IMCPG1CGC

What does this DS200IMCPG1CGC Board's normal PCB coating style entail?

This DS200IMCPG1CGC PCB's normal PCB coating is a thick rudimentary layer of daily wear and tear PCB protection that covers and protects individual DS200IMCPG1CGC Board components based on manufacturer-perceived functional priority.

What does IGBT symbolize?

The IGBT acronym in this product's description can be lengthened to Insualted Gate Bipolar Transistor.
