The GE Mark V DS200IMCPG1CCB functions as an IGBT P/S board within the GE Mark V Speedtronic series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200IMCPG1CCB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200IMCPG1CCB
  • SKU: DS200IMCPG1CCBGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200IMCPG1CCB Technical Specifications

OEM General Electric
Series Mark V Speedtronic
Functional Part Number DS200IMCPG1CCB
Functional Abbreviation IMCP
Revision Quantity 3 Revisions
Backwards-Compatibility 1st two revisions
Mark V Series Grouping Group 1

About the DS200IMCPG1CCB

The DS200IMCPG1CCB is a power supply interface board from General Electric. This component is part of the Mark V series, which was one of the later Speedtronic series released by GE. The Mark V Series has specific applications in both the control and management systems of steam, wind, and gas turbine automated drive assemblies, and is considered a General Electric legacy series given its manufacturing's discontinuation in the years following its original release. This DS200IMCPG1CCB printed circuit board makes use of three significant product revisions that alter it from its status as the DS200IMCPG1 parent Power Supply Interface Board; the originally-manufactured product of this functionality within the Mark V Turbine Control System Series and its related automated drive assemblies. The Mark V Series, while considered a legacy General Electric product series, also exists as one of the final Mark series to make use of the patented Speedtronic control system technology in its various offerings.

Hardware Tips and Specifications

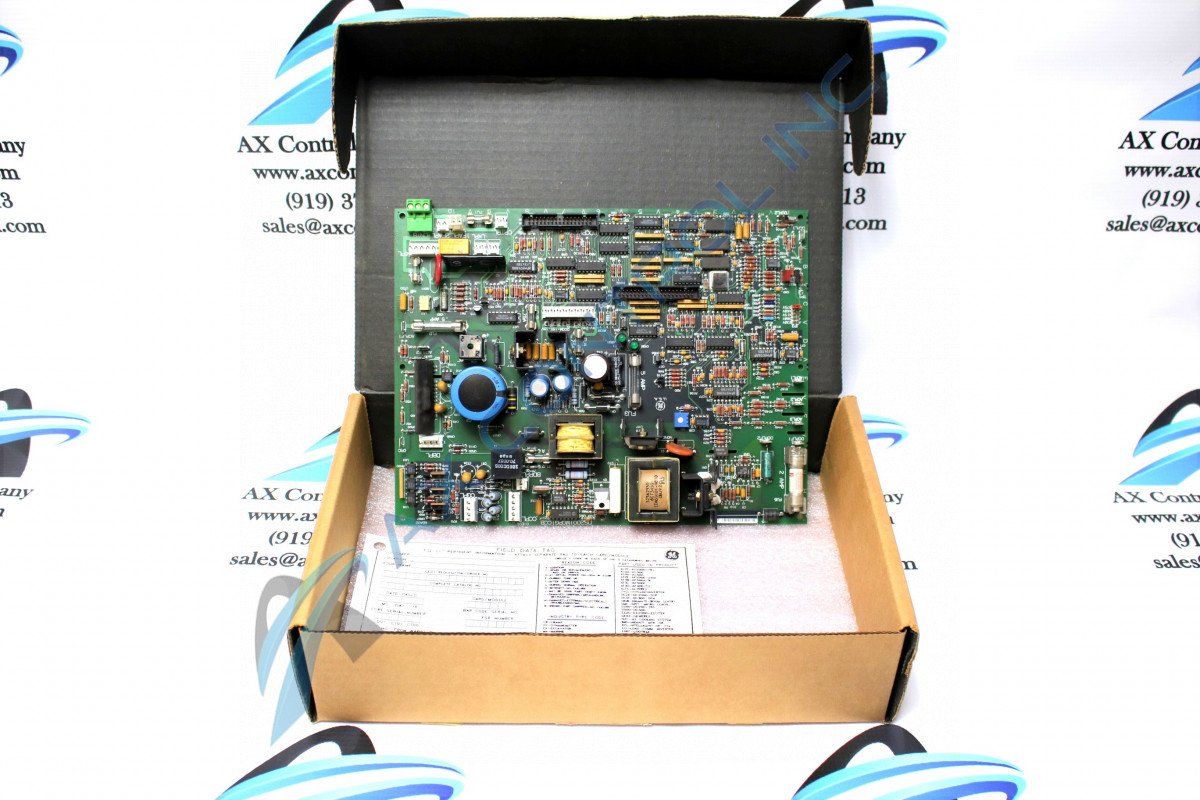

The DS200IMCPG1CCB board typically connects via cable to the 1PL input connector on the SDCC drive control board. The DS200IMCPG1CCB is a heavily populated board that includes a small three-position terminal strip in its lower right-hand corner. Additional connectors include multiple vertical pin connectors with a varying number of pins, as well as stab-on connectors. Several fuses and metal oxide varistors are located on the board’s surface to protect from changes in voltage. Blown fuses can be removed and replaced if required. Be sure to remove power from the board before switching out components, and only do so after testing the board with a current tester. Other DS200IMCPG1CCB board components include heat sinks, resistor network arrays, transformers, transistors, integrated circuits, resistors, jumper switches, and capacitors of varying power. The board also has two LED indicators located toward its center. The board is drilled along its edge and in each corner to allow for mounting options. Most components carry a reference designation and may also be marked with other codes for identification. For additional information regarding the installation or use of this board, please refer to original documentation from the original equipment manufacturer.

The above information represents a combination of DS200IMCPG1CCB Power Supply Interface Board hardware component and component specifications details obvious upon a visual inspection of the DS200IMCPG1CCB printed circuit board paired with any details retrievable from its original instructional manual materials. This DS200IMCPG1CCB printed circuit board's greater General Electric manufacturing benefits it in this case, as this DS200IMCPG1CCB PCB possesses a DS200IMCPG1CCB functional product number that presents many relevant DS200IMCPG1CCB hardware specifications, including this DS200IMCPG1CCB board's:

  • Normal Mark V Series assembly type
  • Domestic manufacture location
  • IMCP functional product acronym
  • Normal style of PCB surface coating
  • Group one Mark V Series product grouping
  • C-rated primary functional revision
  • C-rated secondary functional revision
  • B-rated artwork configuration revision

Before making any final purchase decision on this DS200IMCPG1CCB printed circuit board, it is important to realize that its originally-introduced performance specifications and dimensions have no doubt been altered through its possession of  a full three-fold revision history including two functional product revisions. This DS200IMCPG1CCB PCB's normal style of PCB coating exists as a thick rudimentary chemically-applied base protective layer over the DS200IMCPG1CCB PCB's base circuit board that envelops and protects individual DS200IMCPG1CCB board hardware elements on a functional priority basis. AX Control ships orders from our North Carolina warehouse several times each day.  Most orders received before 3 pm will be shipped the same day.  If you have questions regarding shipping options or payment terms, feel free to contact our staff for more information.

Frequently Asked Questions about DS200IMCPG1CCB

Does this DS200IMCPG1CCB PCB's assembly feature any factory-drilled installation holes?

Yes. Several holes in the assembly of this DS200IMCPG1CCB PCB have been factory-drilled for safe and convenient DS200IMCPG1CCB board installation; each one of these drill-holes is ringed with an insulated material in observance of potentially-present damaging DS200IMCPG1CCB board surface voltages.

What is the purpose of this DS200IMCPG1CCB device's set of capacitors?

The capacitors present in the assembly of this DS200IMCPG1CCB printed circuit board are basic Mark V Series-standardized voltage-limiting hardware components not dissimilar to its set of resistors or integrated circuits.

Reviews For DS200IMCPG1CCB

Internal Review
(5.0)

This DS200IMCPG1CCB printed circuit board or PCB for short is a well-revised model of General Electric IGBT Power Supply Board or Power Supply Interface Board within its greater Mark V Turbine Control System Series. While this is true, this DS200IMCPG1CCB device is not well-documented in available Mark V Series instructional manual materials, especially given its low market availability and Mark V legacy series status. - AX Control Lead Technician

Repair Services For DS200IMCPG1CCB

Type Lead Time Price Action
Repair Service 1-2 weeks $987

Our highly skilled technicians can repair your DS200IMCPG1CCB. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
