This DS200IIBDG1AEA PCB is an IGBT Driver Card manufactured for General Electric's Mark V Turbine Control System Series.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a DS200IIBDG1AEA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200IIBDG1AEA
  • SKU: DS200IIBDG1AEAGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200IIBDG1AEA Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200IIBDG1AEA
Functional Description AC2000I IGBT Driver Card
Functional Acronym IIBD
PCB Coating Normal Coating
Functional Revision 1 A
Functional Revision 2 E
Artwork Revision A

About the DS200IIBDG1AEA

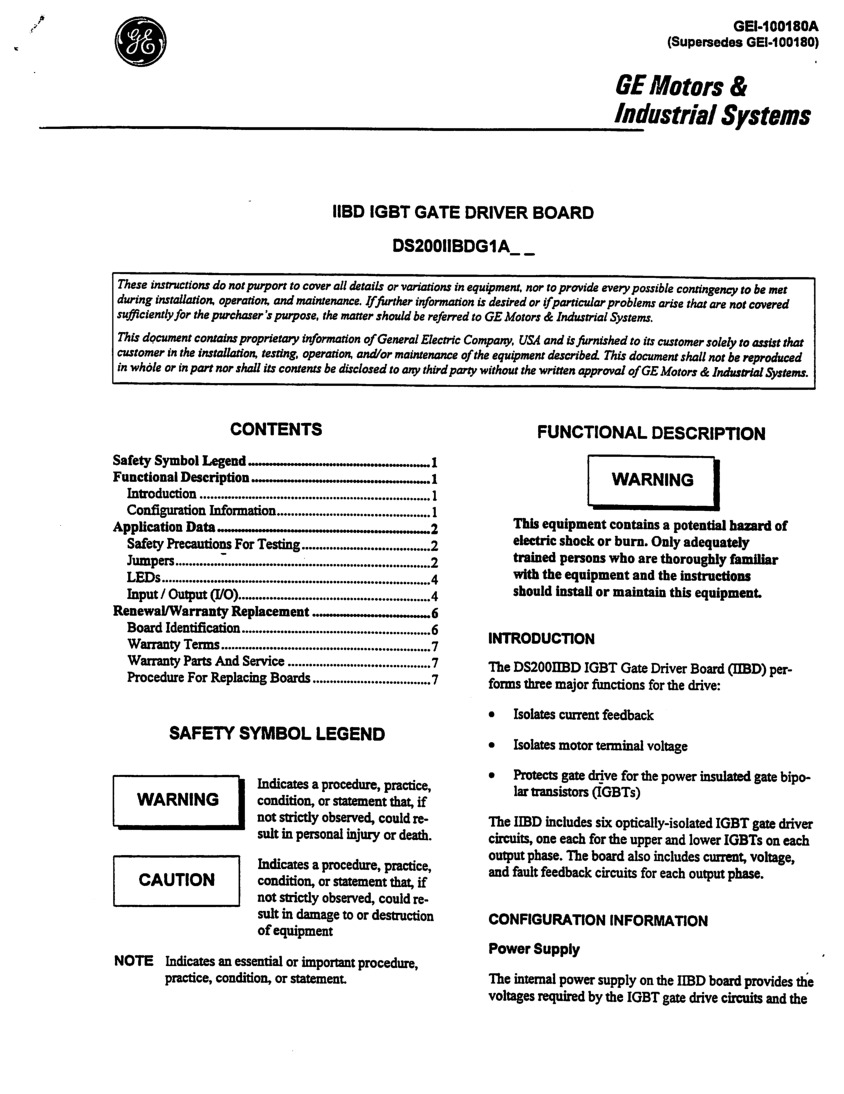

This DS200IIBDG1AEA IGBT Gate Driver Board was originally manufactured for General Electric's Mark V Series, as mentioned above. This Mark V Series product offering is actually a revised version of a preexisting Mark V Series product; altering the DS2000IIBDG1 parent printed circuit board through its inclusion of three significant product revisions. As revealed below, this IGBT Gate Driver Board has a series of set hardware installation and inclusion specifications that contribute towards its intended functionality within the Mark V Series drive system assembly.

Hardware Tips and Specifications

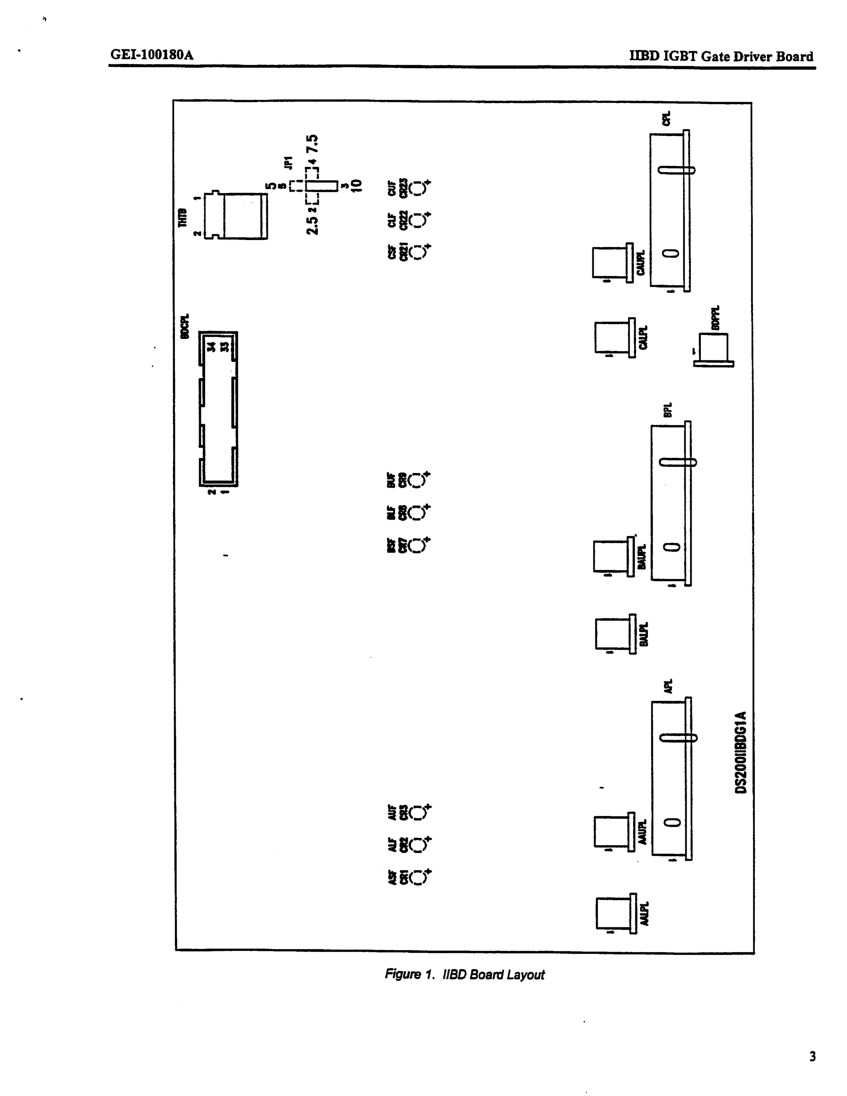

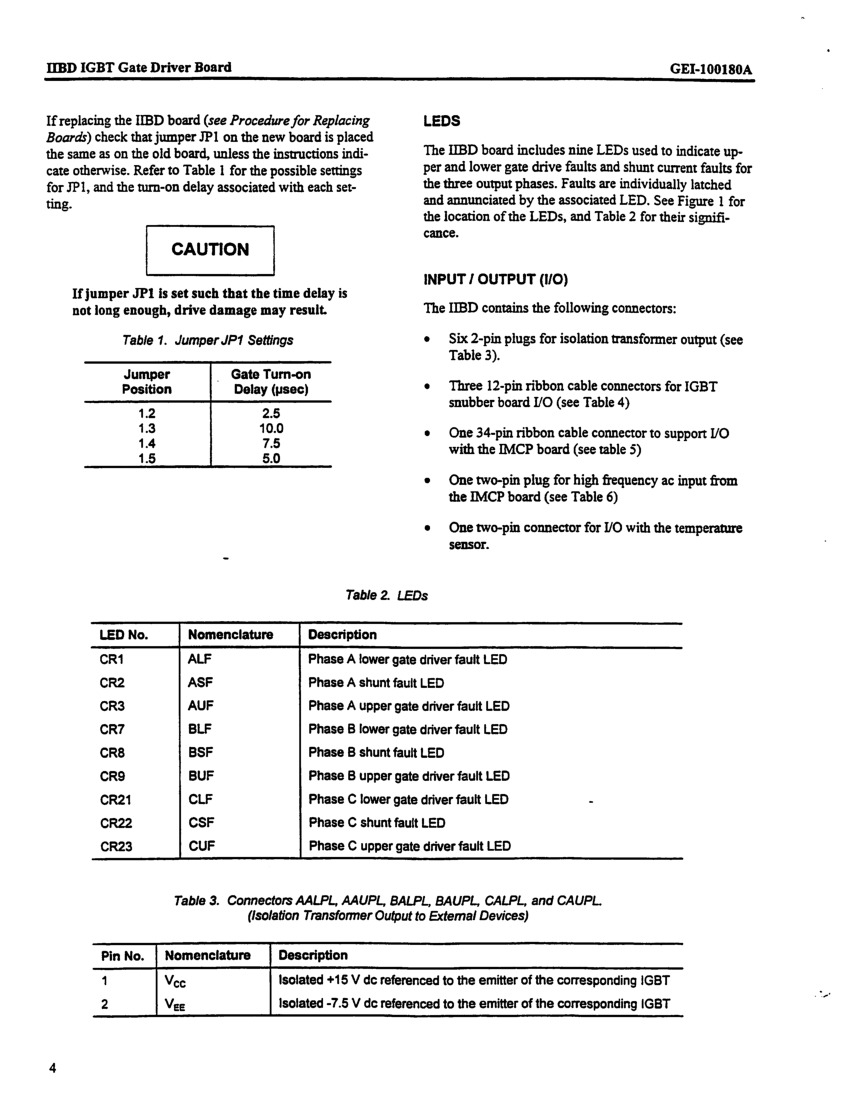

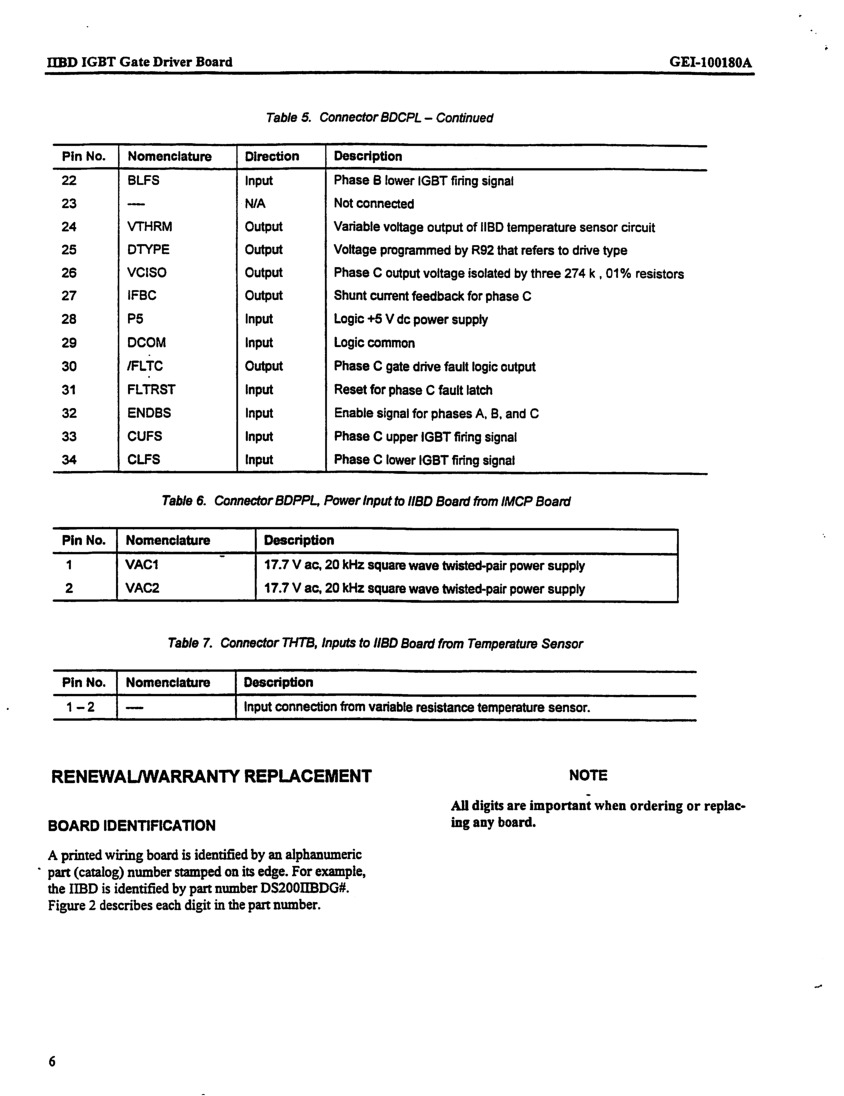

The GE Insulated Gate Bipolar Transistor (IGBT) Board DS200IIBDG1AEA contains nine indicator LEDs that provide a status of the board while in operation. The LEDs are visible from the interior of the circuit board cabinet and are red in color when lit. Consider that because you can only see the LEDs with the cabinet door open and when the drive is powered on, you must observe some guidelines to avoid electric shock to view the LEDs. All boards must be considered to be high-voltage components and you must not come in contact with anything in the board cabinet. It is of paramount importance to not allow anything to drop in the cabinet of the Mark V Series drive assembly while the door is open. If a screw, piece of wire, or other item falls in the cabinet, you must remove all power from the drive. Then, wait three minutes for all power to leave the components. Then, locate the item and search for other parts that might have fallen in. You might have to vacuum out the components to ensure all debris is removed. The GE Insulated Gate Bipolar Transistor (IGBT) Board DS200IIBDG1AEA contains one 34-pin connector to which you connect a ribbon cable. When you connect the ribbon cable, only grasp the cable from the connector and press the connector into place. Never pull the ribbon cable out by holding the ribbon cable. The DS200IIBDG1AEA contains three 8-pin connectors on the board and the connectors are labeled APL, BPL, and CPL. The cables for the connectors are routed inside the cabinet and are connected to other boards inside the cabinet and Mark V Series drive assembly. All of the internal hardware elements of this IIBD-abbreviated IGBT Gate Driver Board should receive rudimentary protections from this device's normal style of printed circuit board coating, which exists as a thick protective layer protecting the most crucial hardware elements to this Mark V Series product's assembly on a priority basis.

Frequently Asked Questions about DS200IIBDG1AEA

Does the DS200IIBDG1AEA differ from similar DS200IIBDG1A models with similar revisions?
While the DS200IIBDG1AEA is one of the later revisions for the IGBT Insulated Gate Bipolar Transistor PCBs, the fact that it is backwards compatible makes it a safe bet when troubleshooting and replacing your DS200IIBDG1A.
Can AX Control repair the DS200IIBDG1AEA AD2000 IGBT Mark VI Board?
Yes. Here at AX Control we can not only test and repair the DS200IIBDG1A turbine control board on the board level but can also system test the board in a test fixture to ensure full functionality.

Reviews For DS200IIBDG1AEA

Internal Review
(5.0)

This DS200IIBDG1AEA IGBT Gate Driver Board is an integral member of General Electric's Mark V Series, even if it is somewhat undocumented in terms of its original instructional manual materials available through internet research. While this general lapse in information may exist, there is no debate that this General Electric product is a generally well-supported model of printed circuit board within the Mark V Series, as it features a full range of applicable product revisions. AX Control can make a repair to your DS200IIBDG1AEA IGBT Gate Driver, with a standard lead repair time of one to two weeks. - AX Control Lead Technician
