This DS200IAXSG1ABB IGBT Snubber Card was originally manufactured for General Electric's Mark V Turbine Control Series.



Sell Surplus: Have a DS200IAXSG1ABB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200IAXSG1ABB
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200IAXSG1ABB Technical Specifications

Original Manufacturer General Electric
Product Series Mark V Speedtronic
Functional Product Number DS200IAXSG1ABB
Functional Abbreviation IAXS
Revision Quantity 3 Revisions
Backwards-Compatibility 1st two revisions
Mark V Series Grouping Group 1

Product Description

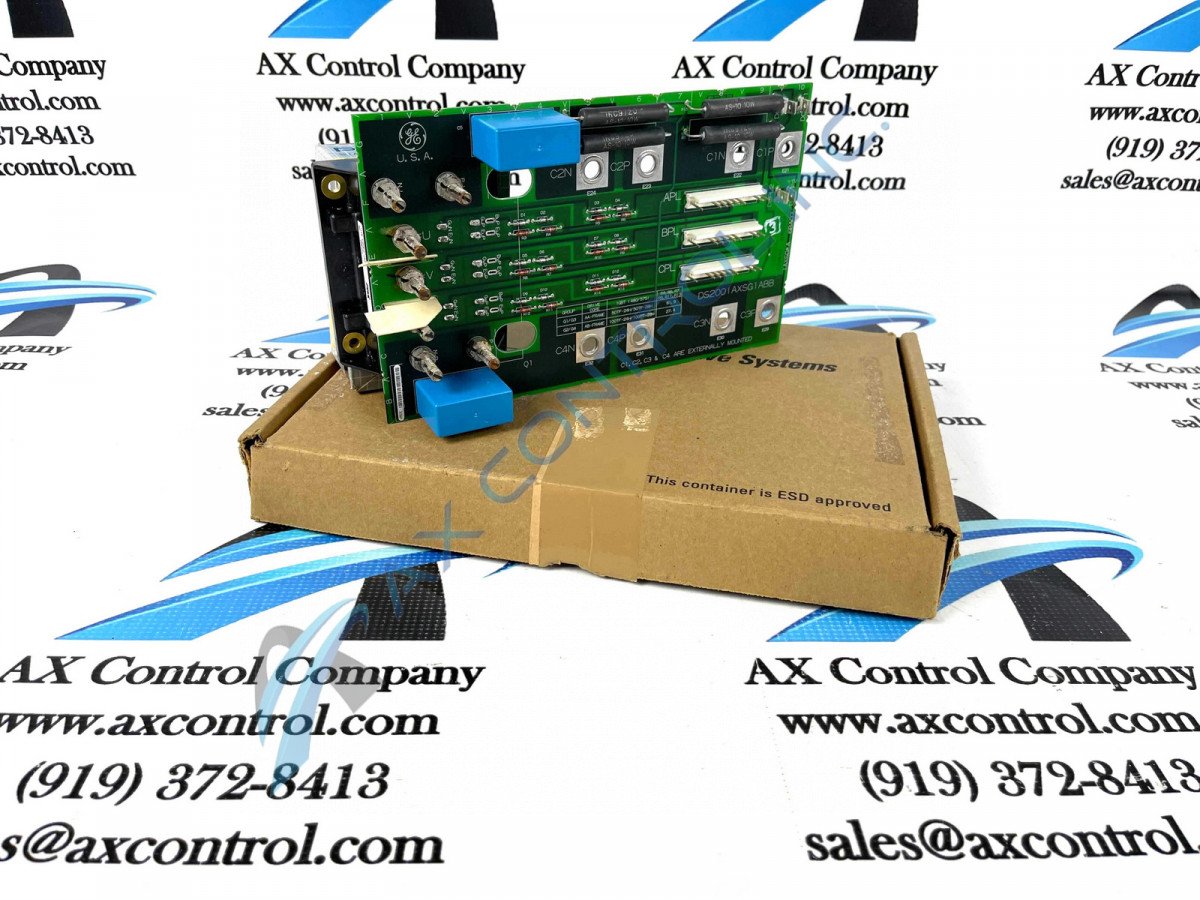

The DS200IAXSG1ABB printed circuit board functions as an IGBT AA/AB snubber card. This is a multi-input and multi-output card that fits into GE’s Mark V Speedtronic turbine control system. This DS200IAXSG1ABB IGBT Snubber Card is not the original product that was manufactured for General Electric's Mark V Series, however; that would be the DS200IAXSG1 IGBT Snubber Card missing this DS200IAXSG1ABB Board's three significant product revisions.

Hardware Tips and Specifications

The DS200IAXSG1ABB board is used within the Mark V system as an insulated gate bipolar transistor (IGBT) snubber board; given the specific intended functionality of this DS200IAXSG1ABB PCB, it should come as no surprise that it makes use of an elevated number of hardware components and component specifications. The DS200IAXSG1ABB board featured here is built with three 8-pin connectors on its surface along with several turn screws. These turn screws are used to vary voltage output by adjusting their depth settings using a screwdriver.  Each turn screw is labeled by a single or dual letter descriptor factory-printed on the board’s surface. Screws connect to a metal carrier located on the bottom surface of the board.

The rest of the DS200IAXSG1ABB IGBT Snubber board is populated by different voltage-limiting hardware components, including various capacitors and diodes. Two capacitors in the assembly of this DS200IAXSG1ABB Mark V Series product are film and foil WIMA FKP capacitors. Capacitors made like this are designed for very low pulse dissipation and are designed for pulse duty applications. Datasheets for these two Mark V Series capacitors can be sourced from the internet and will provide you with a more detailed look at their use and limitations. Be sure to understand all installation and handling instructions before unboxing your part, as many similar Mark V Series products are characterized as static-sensitive. These installation instructions can be located within original GE documentation like manuals and user guides associated with this part.  Such documentation would have been provided with your OEM purchase. If you no longer have your original documents, let us know, as we sometimes have access to available copies. We can typically get your order on its way with one of our standard carriers if your purchase order arrives before 3 pm.  For expedited delivery options, talk to our sales team.
