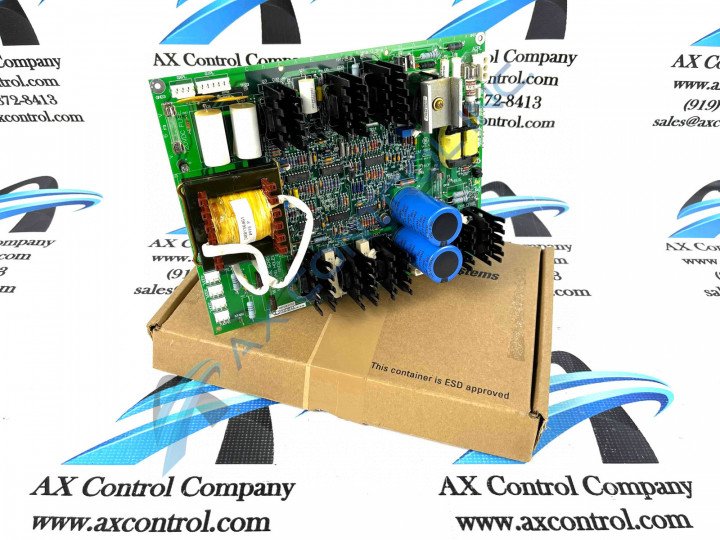

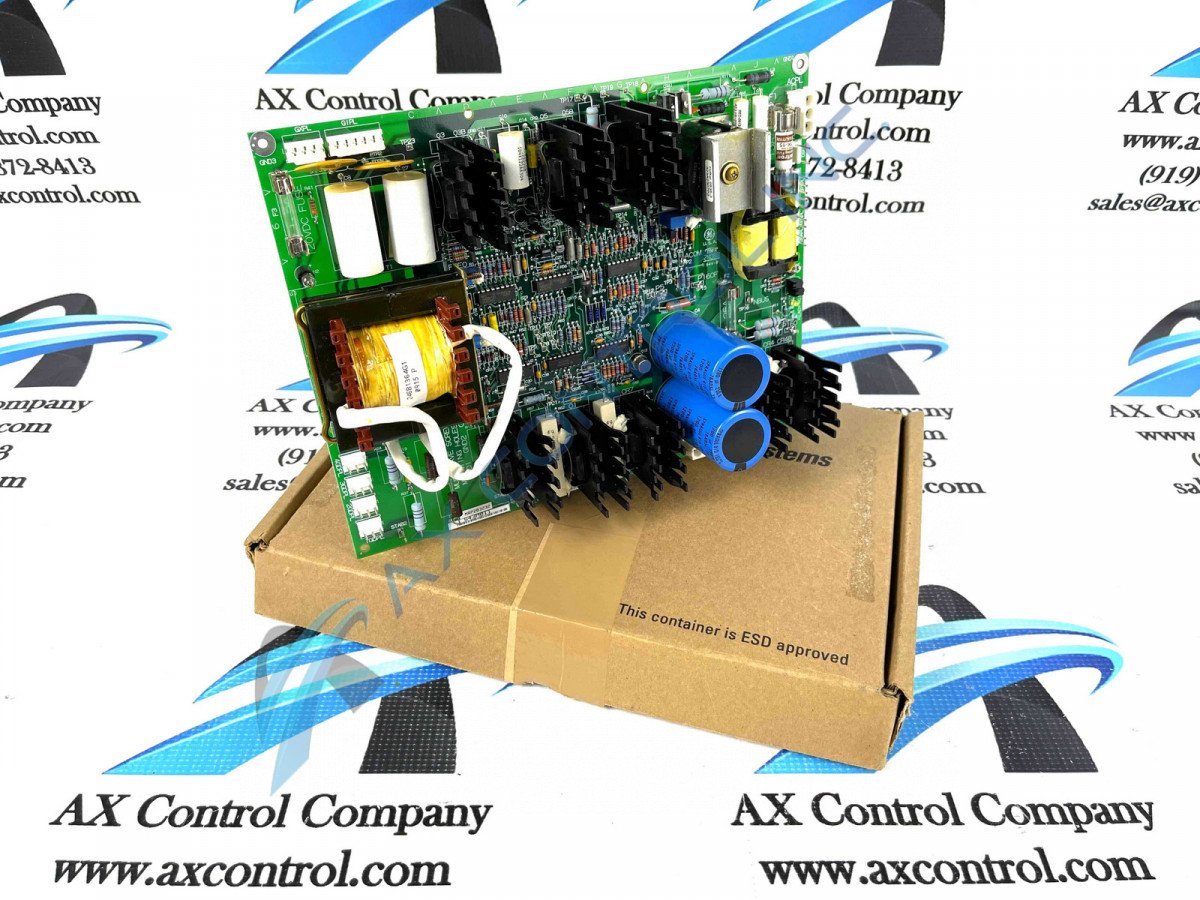

This DS200GDPAG1ALF High Frequency Power Supply Board is a GE Industrial Systems Mark V Turbine Control System Series product.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200GDPAG1ALF to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200GDPAG1ALF
  • SKU: DS200GDPAG1ALFGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200GDPAG1ALF Technical Specifications

OEM General Electric
Series Mark V Speedtronic
Product Number DS200GDPAG1ALF
Functional Acronym GDPA
Revision Quantity 3 Revisions
Assembly Type Normal Assembly
Mark V Series Grouping Group 1

About the DS200GDPAG1ALF

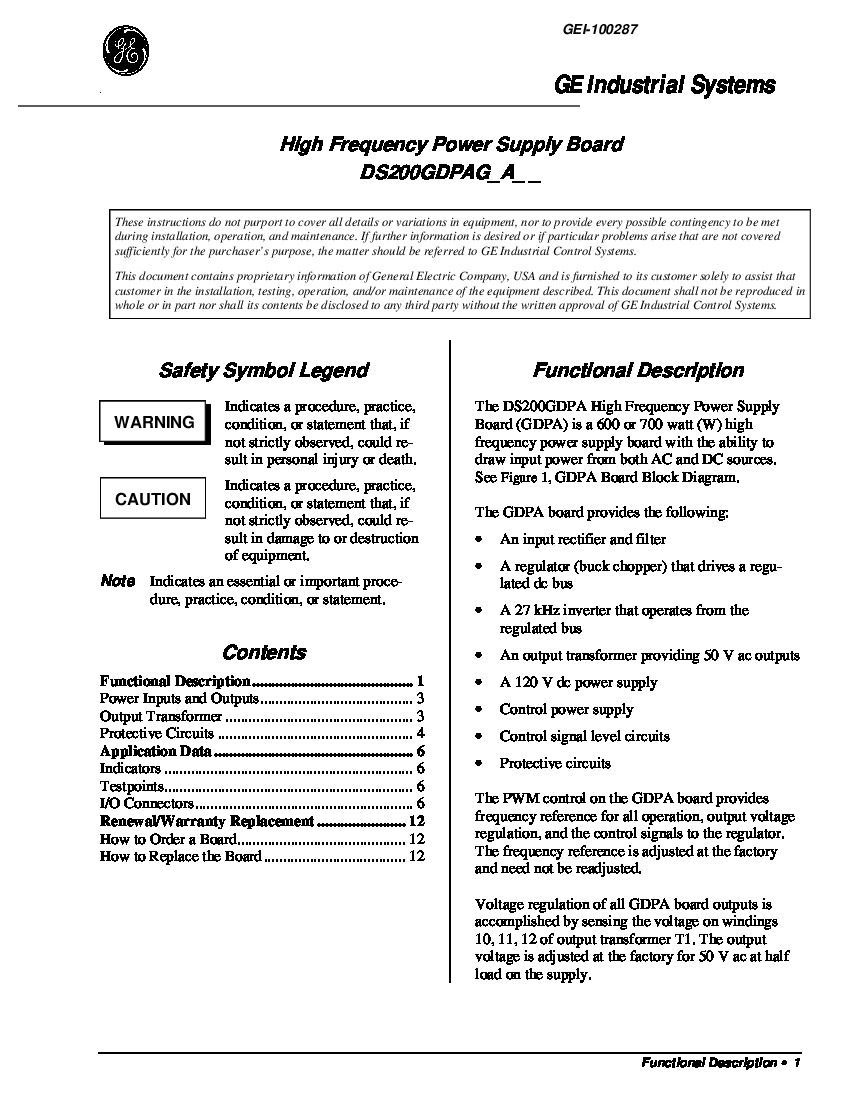

The DS200GDPAG1ALF is a High-Frequency Power Supply replacement printed circuit board designed for use in conjunction with GE industrial control systems like the Speedtronic Mark V.  We maintain on-hand replacement parts for the Mark V and other Speedtronic systems like the Mark I, Mark IV, and Mark VI. The Mark V Series that this DS200GDPAG1ALF High-Frequency Power Supply Board is one of the later Mark Series from General Electric incorporating Speedtronic Technology into its assembly, although it is classifed as a legacy series given its eventual discontinuation by General Electric. The Mark V Series that this DS200GDPAG1ALF PCB belongs to has specific applications in the control and management systems of gas, steam, and wind turbines. While this DS200GDPAG1ALF printed circuit board or PCB for short does have its own specific intended series functionality, it is not considered to exist as the original High-Frequency Power Supply Board developed for the Mark V Series. The original High-Frequency Power Supply Board designed and manufactured for the Mark V is the DS200GDPAG1 parent printed circuit board missing all three of this DS200GDPAG1ALF product's significant product revisions.

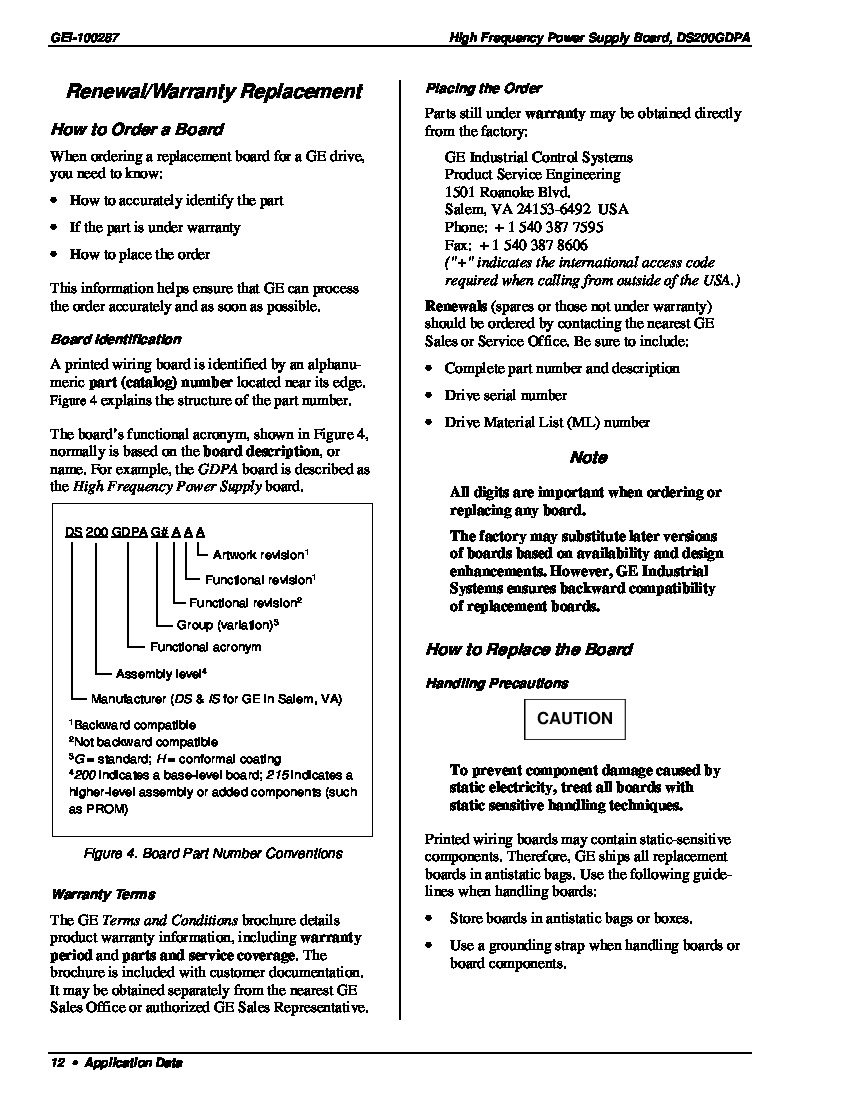

Hardware Tips and Specifications

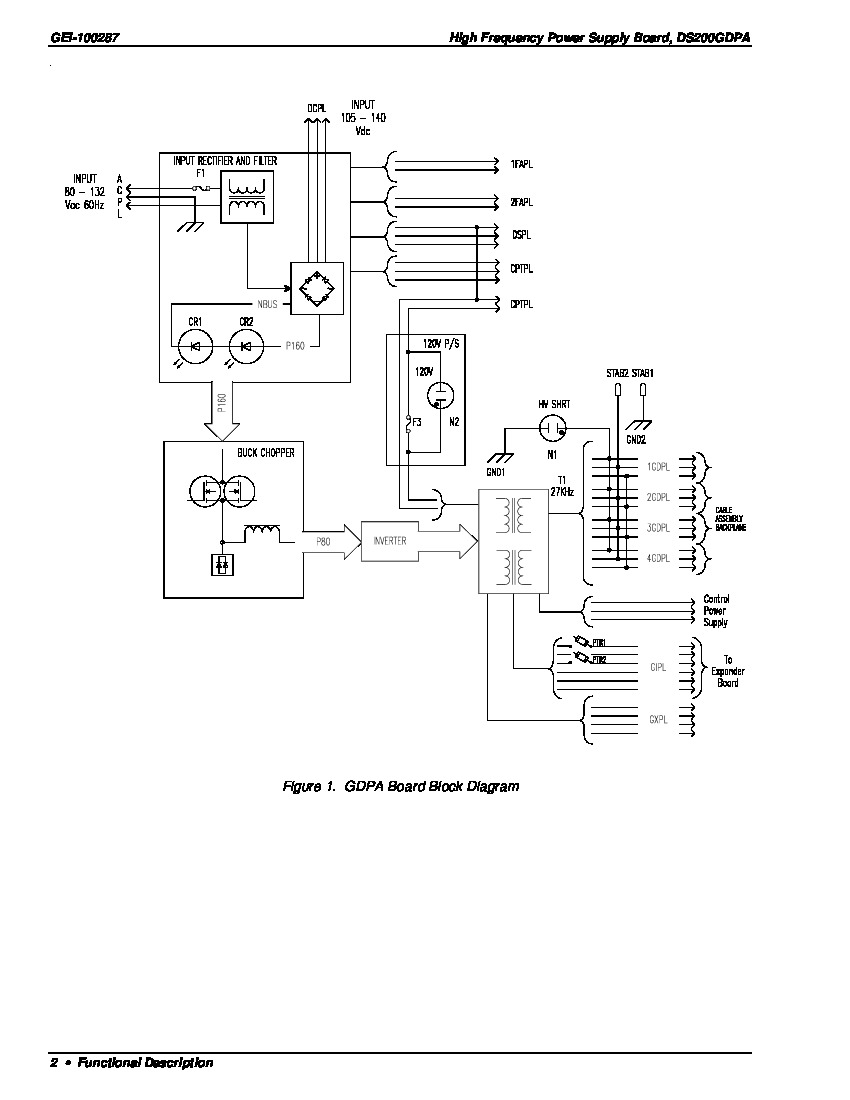

This DS200GDPAG1ALF product offering is a unique Mark V Series printed circuit board in a number of different components and component specifications. The DS200GDPAG1ALF can draw input power from both AC and DC input sources. The 600-700 W high-frequency board has a 27 kHz inverter on its surface, along with a buck driver and an input rectifier. Additionally, the DS200GDPAG1ALF board is protected by several protective circuits, each of which is described in detail in relevant instructional manual materials. Some of these various protective circuits include:

  • The Inverter Overcurrent Circuit
  • The Regulator Overcurrent Circuit
  • The P80 Overvoltage Circuit
  • The Control Voltage Undervoltage Circuit
  • The CVOK Running Signal Circuit

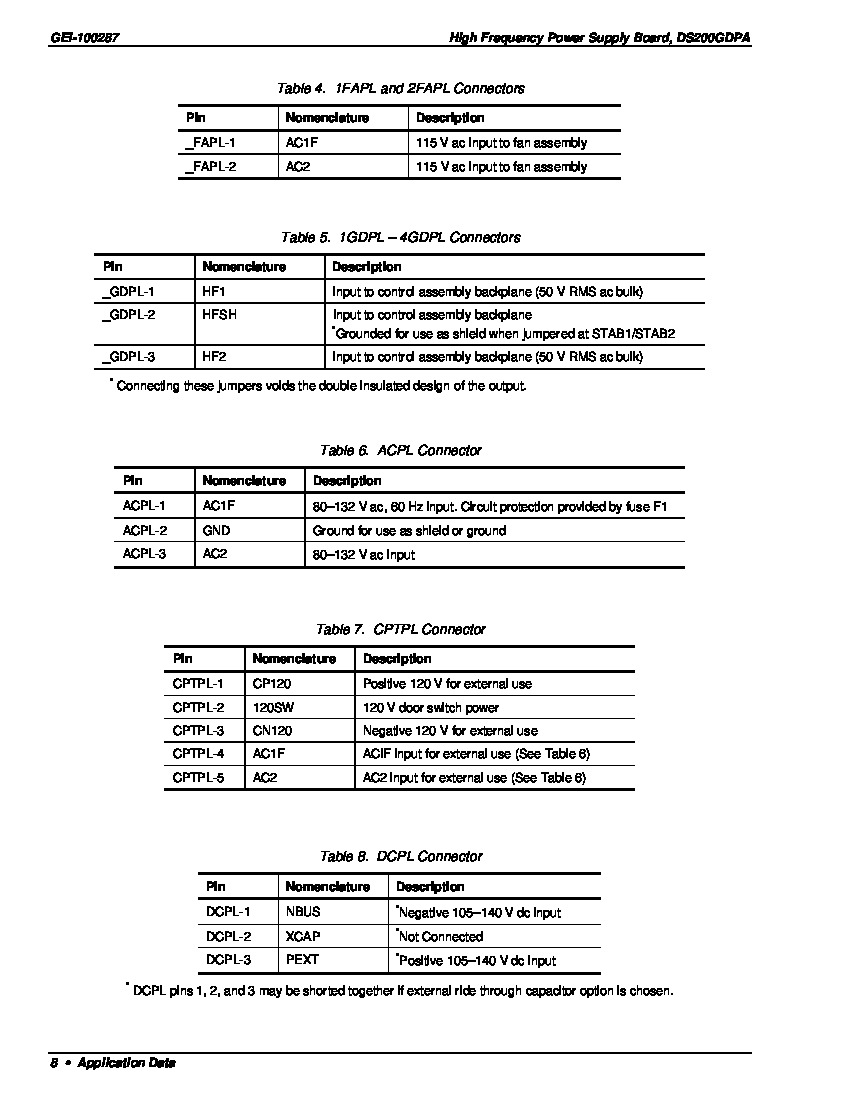

As mentioned before, each of these circuits have been named for the specific fault condition that the protect the assembly of the DS200GDPAG1ALF High-Frequency Power Supply from generally. This DS200GDPAG1ALF printed circuit board's internal assembly is additionally populated by a number of standard Mark V Turbine Control System Series voltage-protecting hardware components, such as rectifiers, diodes, capacitors, and more.   The DS200GDPAG1ALF is designed to operate at an input range of 80-132 VAC or 105-140 VDC.  Operation at lower input voltages (both AC and DC) is possible, but reducing loading may be required. DS200GDPAG1ALF board operation below 102 VAC may result in thermal damage if the board is fully loaded. The DS200GDPAG1ALF includes multiple TP test points, two stab-on connectors, and four GXPL connectors. Stab-on connectors are used as a shield ground and as an input to control the assembly backplane. This DS200GDPAG1ALF board can mount onto a drive mounting plate.  Alternatively, it can mount onto the drive cabinet.   Let your system configuration lead you in how you install the board.  Installation instructions are included within GE manuals. AX Control can help source this important documentation if you no longer have your copy. The board should only be installed into a drive that has been de-energized; generally true of any General Electric circuit board product.

Frequently Asked Questions about DS200GDPAG1ALF

What type of PCB coating does this DS200GDPAG1ALF printed circuit board make use of?

This DS200GDPAG1ALF PCB is protected by a layer of normal-style PCB coating; a thick, rudimentary base layer of protection that envelops and protects individual DS200GDPAG1ALF board elements on a functional priority basis.

Would this DS200GDPAG1ALF PCB be protected by any warranty upon my purchase?

Yes. Immediately following your original purchase from AX Control, this DS200GDPAG1ALF printed circuit board would be deemed as protected by our guaranteed three-year circuit board warranty.

Reviews For DS200GDPAG1ALF

Internal Review
(5.0)

This Mark V high-frequency board can draw power from either AC or DC input sources. The unit includes four GXPL connectors and two stab-on connectors. These stab-on connectors are used as a shield-ground. Connect the jumper between Stab 1 and 2 if you want to utilize this. Grounding cannot be used if you are utilizing the 1300 V isolation capability of the transformer; as the connectors will not handle the high voltages between the pins. This DS200GDPAG1ALF PCB has a full revision table and is available today for repair or replacement. - AX Control Lead Technician
