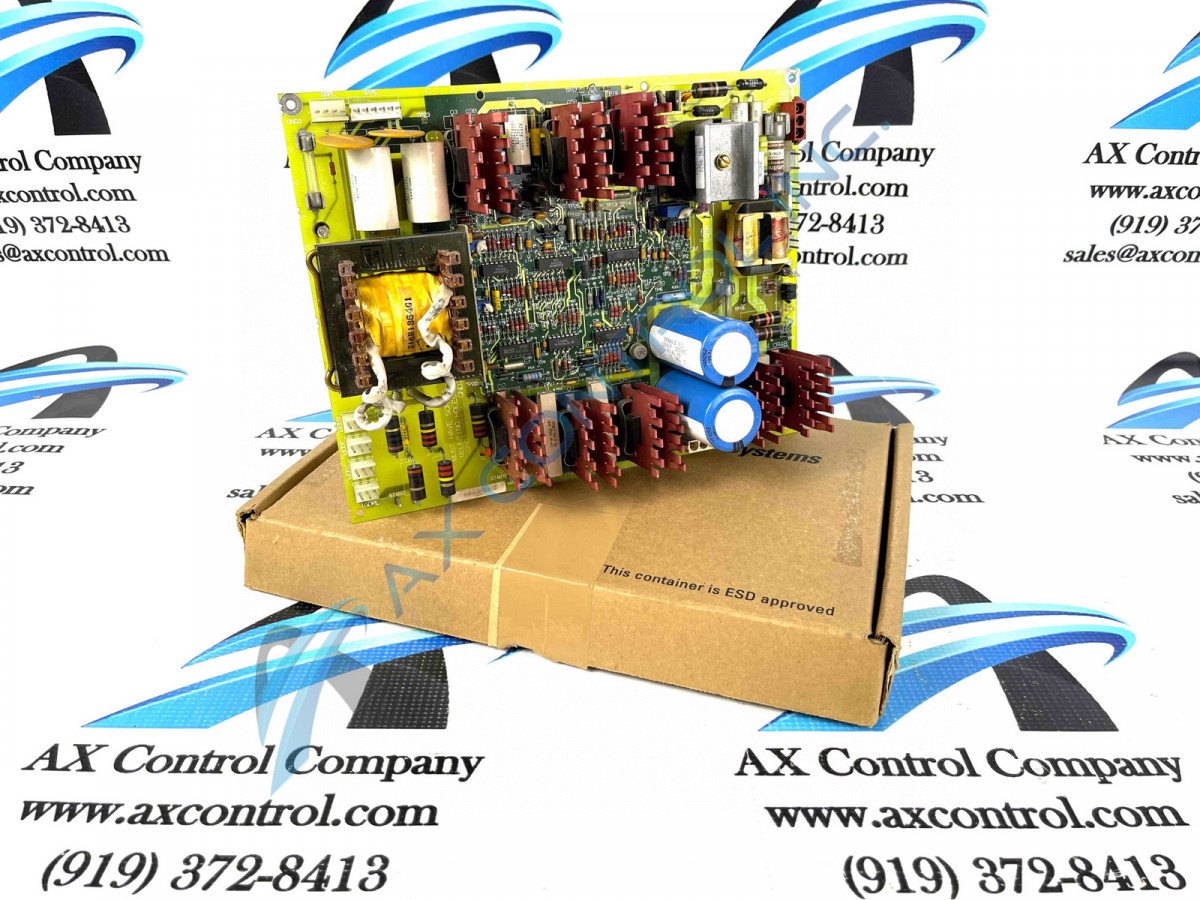

The DS200GDPAG1AGC High Frequency Power Supply Board from General Electric is a member of the Mark V Series of turbine control systems.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200GDPAG1AGC to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200GDPAG1AGC
  • SKU: DS200GDPAG1AGCGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200GDPAG1AGC Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200GDPAG1AGC
Functional Description High Frequency Power Supply Board
Instruction Manual GEI-100287
Functional Acronym GDPA
PCB Coating Normal Coating
Total LEDs Included 4
Total Fuses Included 3
Artwork Revision C
Power Supply Inputs Accepted AC and DC Power Inputs

About the DS200GDPAG1AGC

General Electric’s DS200GDPAG1AGC is a high frequency power supply board designed for the Mark V series of optional and replacement boards. Both AC and DC power supplies can be sourced by this 600 to 700 W board. A wide array of GE brand drives and exciters can use this card, expanding the overall capabilities of the drive. Sourced DC power to the board should rate between 105 and 140 VDC. AC power inputted to the installed drive can rate no lower than 80 and no higher than 132 VAC.

Onboard features of this card ensure that the best user experience is provided. Circuitries on DS200GDPAG1AGC include a control signal level circuit and a protective circuit. Power supplies and voltages are regulated through use of the 120 VDC power supply, a control power supply, and a 50 VAC output transformer. Other main features on this device include a 27 kHz inverter, a regulator, and an input rectifier and filter. Voltage interruptions or irregularities will not disrupt the board as all inputs are isolated. Board status diagnostics are provided to users using the two neon indicators and four LED indicators found on the card.

DS200GDPAG1AGC and its installed drive all include installation parameters provided by the manufacturer. Following these guidelines will ensure that the system as a whole, both the board and the drive, operate as the user intends. Refer to the series manual and device datasheet for a complete guide to wiring and installing this board. All members of the Mark V series were originally provided with technical support by their manufacturer, General Electric. Before making a final purchase decision on this DS200GDPAG1AGC High Frequency Power Supply Board, it is of paramount importance to recoginize the three total product revisions made to this General Electric product; two A and G rated functional product revisions, and a singular, C-rated artwork product revision. These three revisions should enhance the general performance specifications and dimensions of the Mark V turbine control system series product offering greatly. This DS200GDPAG1AGC High Frequency Power Supply board additionally does not feature any type of reset button for fault solution purposes, as this Mark V Series product would continue running past recognition of a functional or power fault.

Frequently Asked Questions about DS200GDPAG1AGC

What is provided with DS200GDPAG1AGC?
DS200GDPAG1AGC is a power supply board that provides a 120 VDC power supply and a control power supply. DS200GDPAG1AGC also provides: an input rectifier and filter, a regulator that drives a regulated DC bus on DS200GDPAG1AGC, a 27 kHz inverter that operates from DS200GDPAG1AGC's regulated bus, an output transformer with 50 VAC outputs, and DS200GDPAG1AGC has control signal level circuits as well as protective circuits.
What is DS200GDPAG1AGC's DC input?
DS200GDPAG1AGC has a DC input range of 105-140 VDC. Make note that for DS200GDPAG1AGC, in-rush limiting and fusing on DS200GDPAG1AGC must be supplied in the DC supply. DC input on DS200GDPAG1AGC is routed fromm connector DCPL directly to DS200GDPAG1AGC's unregulated DC bus.
What are the protective functions DS200GDPAG1AGC's protective circuits have?
The protective circuits on DS200GDPAG1AGC have many protective functions to safely protect DS200GDPAG1AGC. Their functions include: inverter overcurrent, regulator overcurrent, P80 overvoltage, control voltage undervoltage, and CVOK running signal.
What will I find in the manual for DS200GDPAG1AGC?
Although the manual for DS200GDPAG1AGC isn't a complete document for all installation, operation, and maintenance procedures on a DS200GDPAG1AGC, the manual includes a lot of information about DS200GDPAG1AGC that will help with understanding a DS200GDPAG1AGC. The manual for DS200GDPAG1AGC is Manual GEI-100287 - The GE Industrial Systems High Frequency Power Supply Board Manual and the manual includes information on DS200GDPAG1AGC's power inputs and outputs, circuits on DS200GDPAG1AGC, application data for DS200GDPAG1AGC including indicators and testpoints, and renewal/warranty replacement information for DS200GDPAG1AGC.

Reviews For DS200GDPAG1AGC

Internal Review
(5.0)

This board has a neon indicator (N1). When this is lit, a failure has occurred where voltages greater than 300 VAC or 300 VDC to ground have been applied at plugs 1GDPL through 4GDPL. As alluded to before; this DS200GDPAG1AGC High Frequency Power Supply Board is largely modified through its inclusion of a full range of three product revisions, although no special assembly type is necessitated by this General Electric product offering. While functionally-definable as a High Frequency Power Supply Board, the GDPA functional acronym attachable to this PCB points to bonus functionality within the Mark V Series as a Gate Driver Module. - AX Control Lead Technician
