The DS200GDPAG1AFB High Frequency Power Supply Board was manufactured to exist as a member of General Electric's Mark V Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200GDPAG1AFB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200GDPAG1AFB
  • SKU: DS200GDPAG1AFBGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200GDPAG1AFB Technical Specifications

OEM GE Industrial Systems
Series Mark V
Alphanumeric Part Number DS200GDPAG1AFB
Functional Abbreviation GDPA
Power Supply Voltage 120 V dc
Revision Quantity 3 Revisions
Mounting Screws Quantity 3 Mounting Screws

Product Description

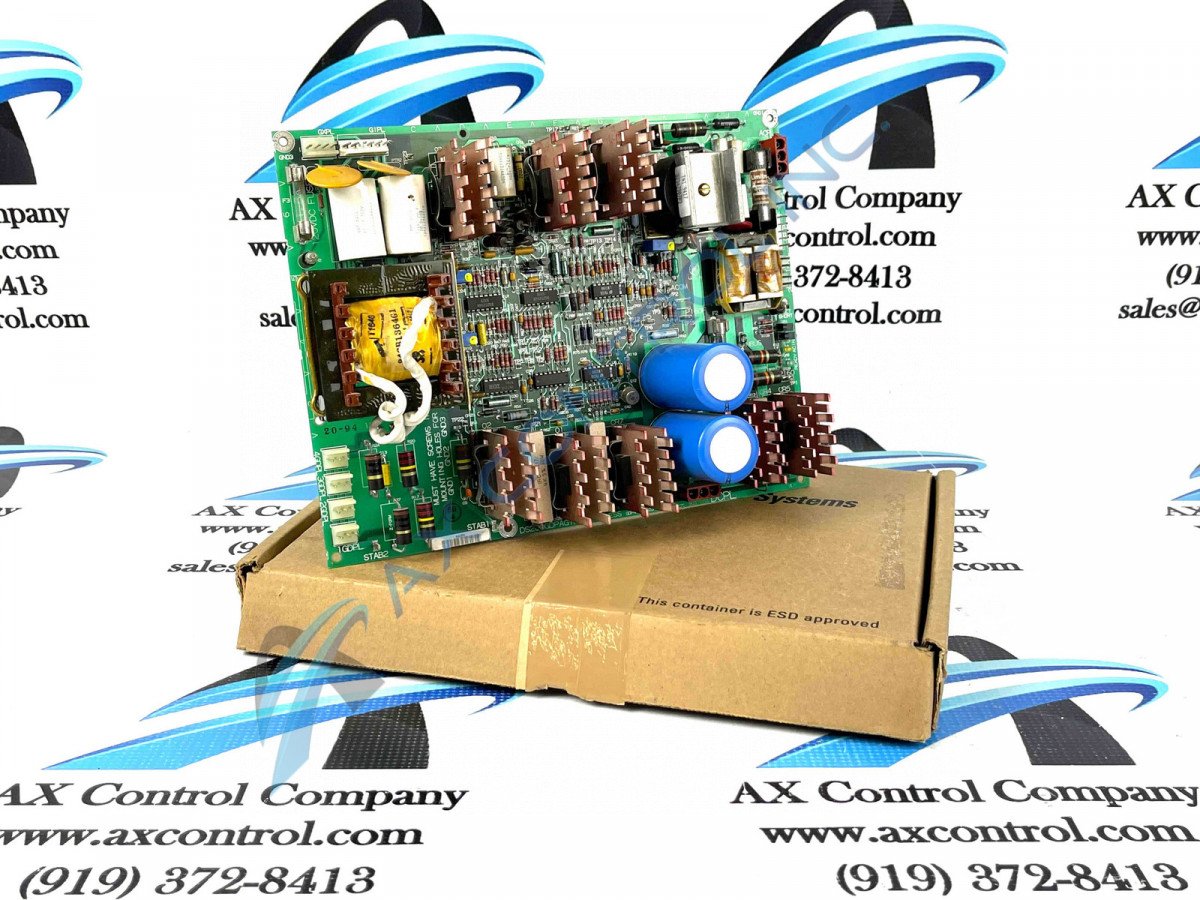

The DS200GDPAG1AFB High-Frequency Power Supply Board (GDPA) is a replacement board component designed to be used in conjunction with General Electric’s industrial control systems, like the Mark V turbine control system. The Mark V was one of the later Speedtronic systems created and sold by GE.  AX Control maintains a large on-hand inventory of Mark I through Mark VI replacement parts such as this DS200GDPAG1AFB High Frequency Power Supply Board in reconditioned and surplus (never-used) condition. This particular DS200GDPAG1AFB High Frequency Power Supply Board is not the original product released as a part of GE's Mark V Series, as the parent DS200GDPAG1 printed circuit board exists. This DS200GDPAG1AFB model PCB alters the DS200GDPAG1 parent device through its inclusion of an A-rated functional revision, an F-rated functional revision, and a B-rated artwork revision.

Hardware Tips and Specifications

As with any revised product within General Electric's Mark V Series, this DS200GDPAG1AFB High Frequency Power Supply Board makes use of its own specific set of hardware component inclusions and component specifications. The DS200GDPAG1AFB is a high-frequency(600-700 W) PCB that can draw input power from either AC or DC sources. This DS200GDPAG1AFB board is built with a 27 kHz inverter, an input rectifier, and a buck driver, which drives a regulated dc bus. Additionally, the DS200GDPAG1AFB board fetaured here  provides protective circuits, control power supply, and control signal level circuits, as well as 50 VAC outputs via an output transformer. The DS200GDPAG1AFB can operate from an 80-132 VAC input or a 105-140 VDC input.  However, below 102 VAC thermal damage can occur when the board is fully loaded. Please be aware of this limitation. Additionally, the board is capable of operation with input voltages of below 95 VDC if and only if reduced loading is being used. The DS200GDPAG1AFB has two current limiters as well as three fuses to protect from overloads and faults.  It has twelve plug connectors, two stab-on connectors, multiple TP test points, and several LED and neon indicators.  The board is grounded at mounting screws GND1, GND 2, and GND 3, which are labeled similarly to the rest of the crucial hardware components in this Mark V Series product's assembly. It is crucial to follow all originally-introduced General Electric instructional manuals when attempting installation of this DS200GDPAG1AFB High Frequency Power Supply Board, given the fact that this Power Supply Board can possess potentially lethal surface voltages during and immediately after normative use.

Frequently Asked Questions about DS200GDPAG1AFB

What connectors in the assembly of this DS200GDPAG1AFB High Frequency Power Supply Board handle AC and DC input voltages?

The ACPL and DCPL connectors in the assembly of this DS200GDPAG1AFB High Frequency Power Supply Board accept AC and DC inputs respectively.

Does this DS200GDPAG1AFB PCB have a RESET function?

No. As indicated in original General Electric instructional manual literature, this DS200GDPAG1AFB High Frequency Power Supply Board does not have any RESET function in its assembly.

Reviews For DS200GDPAG1AFB

Internal Review
(5.0)

Power for this board is provided by a 15 volt bus. The negative portion of this bus is labeled ACOM, and is connected to the NBUS. If you choose to power the board from an isolated and ungrounded 115 VAC source, ground the NBUS at pin 1 of connector DCPL. This DS200GDPAG1AFB PCB possesses two functionality-aimed revisions and a singular artwork-corrective revision. For additional information, refer to GE manuals and user guides, which have been for the most part provided in the manuals tab above. - AX Control Lead Technician
