DS200GDPAG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.94 (17)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.94 (17)
  • Click a star to rate this product

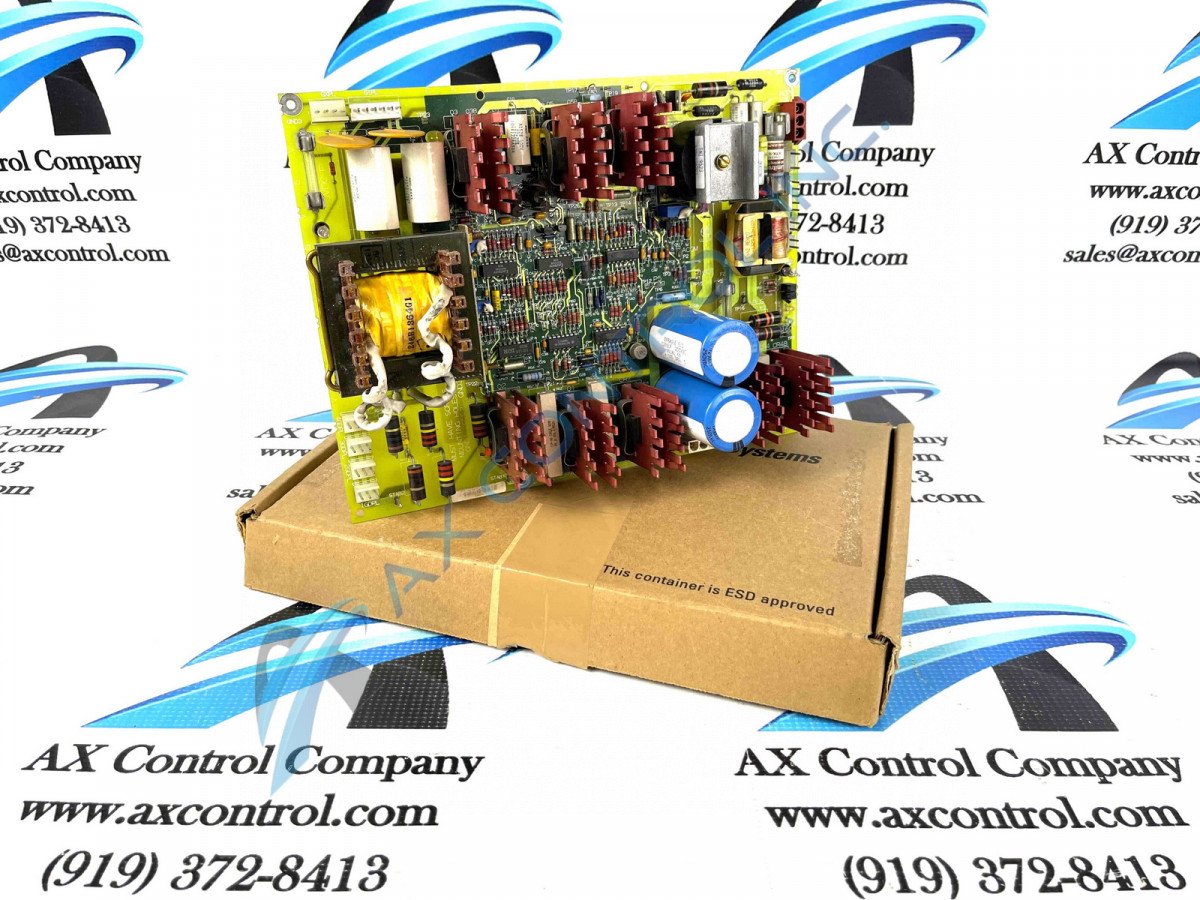

The DS200GDPAG1A Gate Driver Power Supply Card was manufactured for General Electric's Mark V Series of turbine control systems.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200GDPAG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200GDPAG1A
  • SKU: DS200GDPAG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200GDPAG1A Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200GDPAG1A
Functional Description Gate Driver Power Supply Board
Instruction Manual GEI-100287
Functional Acronym GDPA
PCB Coating Normal Coating
Functional Revision 1 A

About the DS200GDPAG1A

DS200GDPAG1A is a high frequency power supply board developed for General Electric’s Mark V board series. The Mark V Turbine Control System Series that this DS200GDPAG1A printed circuit board belongs to has specific applications in the management and control systems of wind, steam, and gas turbine automated drive assemblies, as suggested by its full series name. This DS200GDPAG1A High Frequency Power Supply Board's Mark V Series is considered to exist as a General Electric legacy series, given its eventual manufacturing discontinuation in the years following its initial release. While a legacy series, this DS200GDPAG1A High Frequency Power Supply Board's greater Mark V Turbine Control System Series is also one of the final General Electric Mark product series to incorporate the esteemed Speedtronic control system technology into its various offerings. While this DS200GDPAG1A printed circuit board may be definable as a High Frequency Power Supply Board in its own right, the originally-developed product of that functionality existing as a Mark V Series member is the DS200GDPAG1 High Frequency Power Supply Board missing this DS200GDPAG1A PCB's A-rated functional product revision.

Hardware Tips and Specifications

When installed, this 600 to 700 W board is capable of inputting both AC and DC sourced power supplies. This card can be installed and applied to a wide range of GE manufactured drives and exciters. AC power sourced to the board can measure between 80 and 132 VAC. Should DC power be inputted to the drive, sources can rate between 105 and 140 VDC. An array of integrated board features ensures that DS200GDPAG1A provides the best user experience. These features include a 120 VDC power supply, a 50 VAC output transformer, and a control power supply. Both control signal level circuits and protective circuits are found onboard as well. An input rectifier and filter, a regulator, and a 27 kHz inverter complete the main features of this board. All inputs on the board are isolated, ensuring no interruptions or voltage spikes. Four onboard LED and two neon indicators provide board status diagnostics to the users. Manufacturer provided installation and storage parameters for both the board and drive should be reviewed and followed. This instructions will ensure that the system as a whole operates properly. For a step by step guide to installing and wiring DS200GDPAG1A, please refer to the series manual as well as the datasheet. General Electric, the manufacturer, originally provided all Mark V boards with technical support. While generally defined above, the integrated circuits in the assembly of this DS200GDPAG1A product offering are actually described in detail in this DS200GDPAG1A PCB's factory-printed instructional manual available to the manuals tab above. As indicated in this instructional documentation, the DS200GDPAG1A High Frequency Power Supply's integrated circuits include:

  • The Inverter Overcurrent Circuit
  • The Regulator Overcurrent Circuit
  • The P80 Bus Overvoltage Circuit
  • The Control Voltage Undervoltage Circuit
  • The CVOK Running Signal Circuit

All of these listed circuits important to the assembly of this DS200GDPAG1A product offering have been named through their intended functionality in the assembly of this DS200GDPAG1A printed circuit board. These circuits are uniquely provided to the assembly of this DS200GDPAG1A product offering given that this DS200GDPAG1A PCB possesses no RESET button, which means that normative functional DS200GDPAG1A board activity and diagnostic conditions must be closely and specifically monitored. The number of diagnostic testpoints in the assembly of this DS200GDPAG1A PCB are directly correspondent with its voltage rating, as once again described in the original DS200GDPAG1A instructional manual attached above. Before making any ultimate purchase decision on this DS200GDPAG1A product offering, it is crucial to understand that its originally-developed performance specifications and dimensions have no doubt been impacted by its possession of a singular, A-rated functional product revision. Our team at AX Control is ready to assist with all of your DS200GDPAG1A needs. A member of our trusted sales team is available by phone or email to discuss prices and availabilities on all parts and repairs.

Frequently Asked Questions about DS200GDPAG1A

What exactly is DS200GDPAG1A?
DS200GDPAG1A is a 600 or 700 watt high frequency power supply board. DS200GDPAG1A has the ability to draw input power from both AC and DC sources.
How is voltage regulated on DS200GDPAG1A?
Voltage regulation of DS200GDPAG1A is achieved by sensing the voltage on windings 10, 11, 12 of output transformer T1 on DS200GDPAG1A. The output voltage for DS200GDPAG1A is typically factory set for 50 VAC at half load on the DS200GDPAG1A supply.
Does DS200GDPAG1A have an inverter?
Yes, DS200GDPAG1A has a 27 kHz inverter and DS200GDPAG1A's inverter operates from the regulated bus.
Where do I find the manual for DS200GDPAG1A?

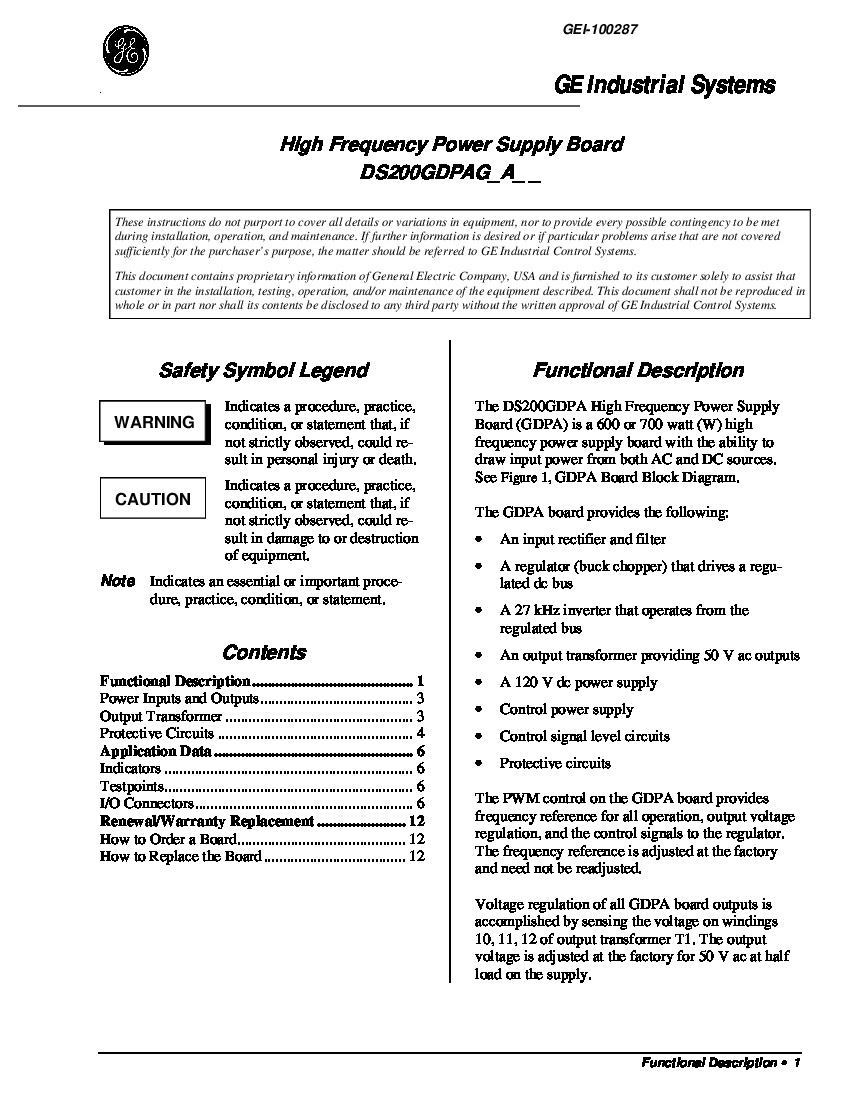

We can send you the link to the manual for DS200GDPAG1A. The manual that applies to DS200GDPAG1A is the GE Industrial Systems High Frequency Power Supply Board Manual - Manual GEI-100287. We're happy to send you this manual to help with understanding DS200GDPAG1A.

Reviews For DS200GDPAG1A

Internal Review
(5.0)

This board can accept inputs from either AC or DC sources. AC inputs should be impedance limited. DC inputs (105-140 VDC) must have in-rush limiting and fusing. Read through associated GE manuals for more information; many of which have been inserted into the manuals tab above. Generally, this DS200GDPAG1A product offering is a well voltage-regulated PCB with an standard functionality-enhancing product revision. - AX Control Lead Technician

Repair Services For DS200GDPAG1A

Type Lead Time Price Action
Repair Service 1-2 weeks $375

Our highly skilled technicians can repair your DS200GDPAG1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
