The DS200FSAAG2A Field Supply Gate Amplifier Board is a crucial member of General Electric's Mark V turbine control system series.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a DS200FSAAG2A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200FSAAG2A
  • SKU: DS200FSAAG2AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200FSAAG2A Technical Specifications

Manufacturer GE General Electric
Series Mark V
Functional Part Number DS200FSAAG2A
Functional Product Description Field Supply Gate Amplifier Board
Functional Abbreviation FSAA
Mark V Series Grouping Group 2
Functional Revision A

Product Description

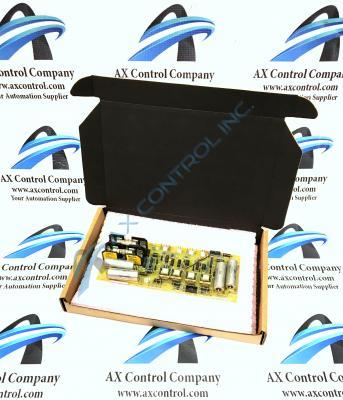

The GE Field Supply Gate Amplifier Board DS200FSAAG2A features 5 jumpers, one 10-pin connector, and two fuses. It is also populated with multiple test points. The fuses on the GE Field Supply Gate Amplifier Board DS200FSAAG2A are rated as 600 volts and 30 amps each and are replaceable. If you suspect that the board is not operational, before you decide to replace the board, inspect the fuses and verify that one or both of the fuses are blown. That can happen if too much current is supplied to the board. The fuses are engineered to protect the board by preventing the jolt of high voltage from damaging the components on the board and other components in the drive. The two fuses applied to the assembly of this DS200FSAAG2A Field Supply Gate Amplifier Board are both mounted on on onboard fuse block for additional protections, and are classified in original General Electric instructional manual materials as the 30 A, 60 V, fast-acting style of fuse. As mentioned above, this DS200FSAAG2A Field Supply Gate Amplifier Board has five total jumpers in its assembly; these jumpers have also been specified in original General Electric instructional manual materials as Berg-type manually-moveable jumpers, each of which adorned with its own JP factory-printed nomenclature label. These jumpers have been included in the assembly of this DS200FSAAG2A Field Supply Gate Amplifier Board to provide the DS200FSAAG2A board's greater drive administrator with a NRX option.

While original, factory-printed instuctional manual materials for this DS200FSAAG2A Field Supply Gate Amplifier Board do exist online, more general series-placement and hardware information can be gleaned from a careful inspection of the DS200FSAAG2A product number itself, which was specifically developed by General Electric to describe some of the intended functionality of this Mark V Series product offering. For starters, the DS200FSAAG2A functional product number begins with the DS200 tag, describing its domestic manufacture location and normal Mark V Series assembly type. This DS200 series tag is followed by the FSAA functional acronym in the DS200FSAAG2A product number, which is itself followed by the G2 series grouping tag; which names this Field Gate Supply Amplifier Board both as a normally-coating printed circuit board and as a Mark V Series group 2 product grouping item. The final A digit in the DS200FSAAG2A product number is reminiscent of this product's single, A-rated functional revision.

Frequently Asked Questions about DS200FSAAG2A

What kind of terminal connector does DS200FSAAG2A have?
DS200FSAAG2A has a 10 pin terminal connector. This connector on DS200FSAAG2A is labeled FPL on DS200FSAAG2A and is located at the bottom of DS200FSAAG2A.
How are the fuses labeled on DS200FSAAG2A?
The fuses on DS200FSAAG2A are labeled by FU2 and FU3. DS200FSAAG2A's fuses are Limitron fast-acting fuses and the fuses on DS200FSAAG2A are 30 amp.
