DS200FPSAG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.94 (16)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.94 (16)
  • Click a star to rate this product
The DS200FPSAG1A Fan Power Supply Board was manufactured by General Electric for the Mark V Series.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a DS200FPSAG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200FPSAG1A
  • SKU: DS200FPSAG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200FPSAG1A Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200FPSAG1A
Functional Description Fan Power Supply Board
Functional Acronym FPSA
PCB Coating Normal Coating
Functional Revision 1 A

About the DS200FPSAG1A

The DS200FPSAG1A is a GE Power Supply board fabricated for use within the Mark V Speedtronic system. The MKV was one of the later of General Electric’s steam/gas turbine control systems, and exists now as a member of a General Electric legacy series. The DS200FPSAG1A board is no longer manufactured by GE for this system; but can be purchased from AX Control as a new, never used unit from liquidated stock, or as a reconditioned unit that has been thoroughly examined by our in-house technicians.

Hardware Tips and Specifications

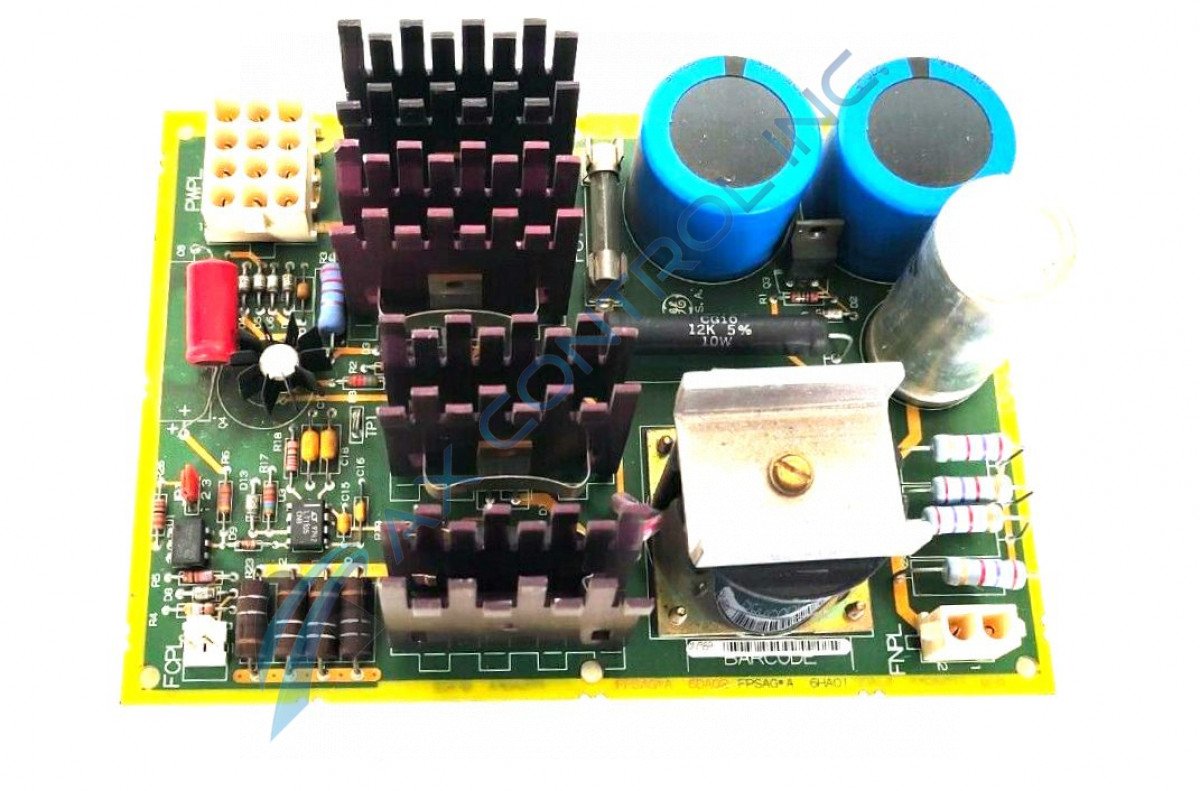

The DS200FPSAG1A is a small-scale board component with many components packed into its surface. The board is factory-drilled in each corner to allow for mounting hardware to be installed, either in the form of standoffs or screw mounts. Each edge is also notched slightly along its surface for mounting convenience. The board is marked with codes like 6BA02, while individual components are marked with reference designations. Some of the long-adored features of the Mark V series of automated industrial products exist in the DS200FPSAG1A here; such as the MKV's built-in diagnostics, direct sensor interface, online maintenance platform, and highly-reliable TMR (triple modular redundant) design that allows operators to have immediate access to all important control functions.

A number of components unique to this specific Mark V product offering are observable based on an initial visual inspection. Some of these noted components include:

  • three different types of resistors, including wire wound, metal film, and carbon composite resistors.
  • multiple diodes
  • capacitors; including three large surface-mounted electrolytic capacitors, an axial mounted electrolytic capacitor, and several miniscule ceramic capacitors
  • four transistors, which tend to be mounted in heat sinks
  • several integrated circuits
  • multiple fuses
  • TP test points
  • jumper switches
  • connectors such as a two-pin header connector and two Mate-n-Lok connectors.

All of these hardware components are protected by the DS200FPSAG1A Power Supply Board Fan's normal styles of protective printed circuit board coating. This type of coating is revealed through an inclusion of the "G" group designation in this product's part number. While not nearly as exhaustive in its coverage as similar "H" styles of conformal PCB coating, the normal coating layer present on the DS200FPSAG1A here is much thicker than its conformal counterpart, and provides a solid basic protection for a range of applications.

This seemingly comprehensive list only covers a portion of the components and processes that go into making the DS200FPSAG1A functional; a more detailed and thorough explanation is available online through use of the correct corresponding General Electric manual. Manual information for this specific drive assembly component part can only be classified as limited, given the specialized nature of the product. Please note that the already sparsely-accessible dimensions of this product can be altered some by DS200FPSAG1A's singular functional revision rated at an "A" grade.

Frequently Asked Questions about DS200FPSAG1A

Is the DS200FPSAG1A a small style of printed circuit board?

Yes and No. While relatively small in its printed circuit board plate surface area, the DS200FPSAG1A makes use of several large, chunky relay components that increase the thickness of the module greatly.

Where was this DS200FPSAG1A manufactured?

A member of a General Electric series of drive assembly component parts, this module's "DS200" portion in its official product number designates it as being manufactured right here in the U.S.A; Salem, Virginia more specifically.

Is GE Industrial Systems a General Electric affiliated company?

Yes. While the eagle-eyed prospective buyer might have identified this correctly as a GE Industrial Systems product; GE Industrial Systems is simply a now-defunct shell company from greater industry-trusted manufacturer General Electric.
