DS200FHVAG2A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.94 (16)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.94 (16)
  • Click a star to rate this product
This DS200FHVAG2A High Voltage Gate Interface Board was manufactured as a member of General Electric's Mark V Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200FHVAG2A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200FHVAG2A
  • SKU: DS200FHVAG2AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200FHVAG2A Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200FHVAG2A
Functional Description High Voltage Gate Interface Board
Instruction Manual GEI-100224
Functional Acronym FHVA
PCB Coating Normal Coating
Functional Revision 1 A

About the DS200FHVAG2A

The GE High Voltage Gate Interface Board DS200FHVAG2A is an interface between the SCR bridge and the LCI power converter and also provides cell monitoring functions to the LCI power converter. The DS200FHVAG2A board is not populated with serviceable parts. If you determine the board is defective the only option you have to order a new board, or call for service. The board must be installed by a servicer that knows how to work  around high-voltage equipment. There is a risk of injury, electrical burns, electrical shock, and death from improper procedures. Additionally, there is risk of injury from the powerful moving parts in the drive or other equipment in a manufacturing site. To remove the fiber optic cables from the board, pull the latch on the cable connector. Care must be taken to avoid pulling the cable from fiber optic cable. Only pull from the connector to avoid damage to the cable.

Hardware Tips and Specifications

Now that some of the original intended functionality and installation specifications for this DS200FHVAG2A High Voltage Gate Interface Board have been discussed, it is possible to explore some of its hardware specifications and specific inclusions in detail. Unfortunately for our sakes, this DS200FHVAG2A printed circuit board does not appear in original General Electric instructional manual materials, at least not in great detail. With this in mind, most of the content contained on this personalized DS200FHVAG2A product page is reminiscent of a thorough visual inspection of the device, paired with any information obtainable from the DS200FHVAG2A functional product number itself.

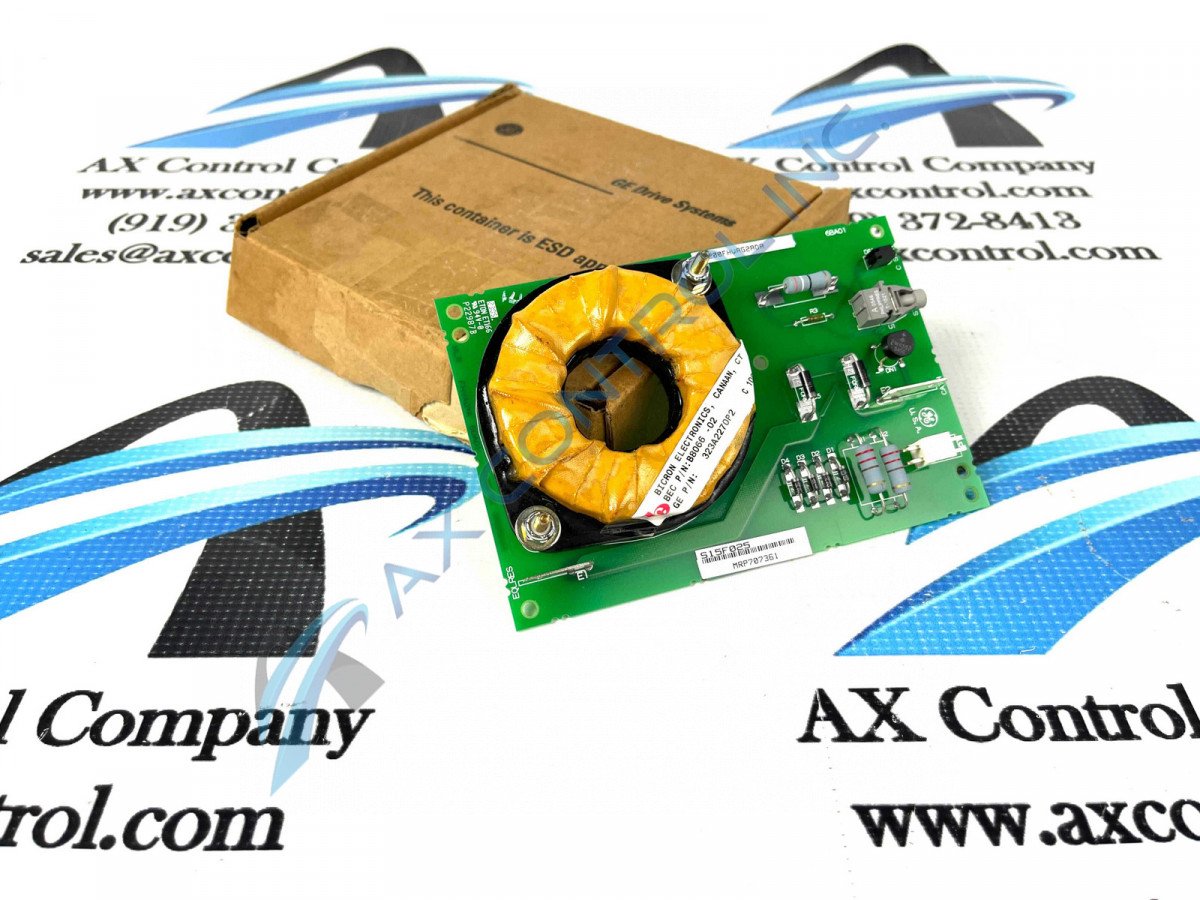

The primarily-noticeable hardware component inclusion in the assembly of this DS200FHVAG2A High Voltage Gate Interface Board has to be identified as the large ring of insulated yellow material that appears in the center of this PCB's base circuit board; most likely a power bank. Like many other similar Mark V Series products, this DS200FHVAG2A High Voltage Gate Interface Board is also equipped with some standard hardware components, including insulated installation drill holes, various integrated circuits, diodes and other voltage-limiting components, and several factory-printed reference designators, including the DS200FHVAG2A functional product number itself. Some of the hardware specifications revealed in the DS200FHVAG2A functional product number itself includes:

  • A normal assembly version
  • A Salem, Virginia original manufacture location
  • The FHVA functional acronym
  • A normal style of PCB coating
  • A single, A-rated functional revision.

Lock washers are included in the hardware assembly that secures the DS200FHVAG2A board in the greater Mark V Series drive. Do not allow the metal lock washers to fall in the drive and get lost.

Frequently Asked Questions about DS200FHVAG2A

What environment does DS200FHVAG2A operate in?
DS200FHVAG2A operates in an ambient temperature between 0 and 50 degrees Celsius. DS200FHVAG2A also has a 10 degrees Celsius rise inside the cabinet. Convection cooling is the only cooling required for DS200FHVAG2A.
What is included in the application data section of the manual for DS200FHVAG2A?
In the manual for DS200FHVAG2A, Manual GEI-100224, there is a section for DS200FHVAG2A's application data. Within this section of the manual is information on resistor and fiber-optic transmitter protection for DS200FHVAG2A. First, the manual explains how if DS200FHVAG2A is operated under power without an SCR gate connected to P1, pins P1-1 and P1-2 on DS200FHVAG2A should be shorted together. Second, the manual explains that a rubber plug should be inserted into U1 on DS200FHVAG2A if DS200FHVAG2A is left for an hour or more without an optical fiber connected. Following these protection instructions for DS200FHVAG2A in the manual is a diagram of DS200FHVAG2A, which is Figure 1 in the Manual.
What is connection U1 on DS200FHVAG2A?
Connection U1 on DS200FHVAG2A is gray in color and can be identified by the STATUS nomenclature on DS200FHVAG2A. This connection on DS200FHVAG2A is for DS200FHVAG2A's fiber-optic transmitter. Output of this connection on DS200FHVAG2A indicates presence of voltage across SCR.
Where can I get a copy of the manual for DS200FHVAG2A?
We can send you the manual to DS200FHVAG2A. We have the manual on file for you and the manual can be sent to you via manual link or manual hard-copy. The manual for DS200FHVAG2A is the GE Motors and Industrial Systems High Voltage Gate Interface Board Manual - Manual GEI-100224.

Reviews For DS200FHVAG2A

Internal Review
(5.0)

Despite not featuring a ton of available, product-centric instructional manual materials for research purposes, this DS200FHVAG2A High Voltage Gate Interface Board is a viable member of General Electric's Mark V Series of turbine control systems, as stated above. This small-size High Voltage Gate Interface Board is a modified version of a different General Electric parent circuit board product; modifying the DS200FHVAG2 High Voltage Gate Interface Board through its inclusion of a singular significant revision. - AX Control Lead Technician
