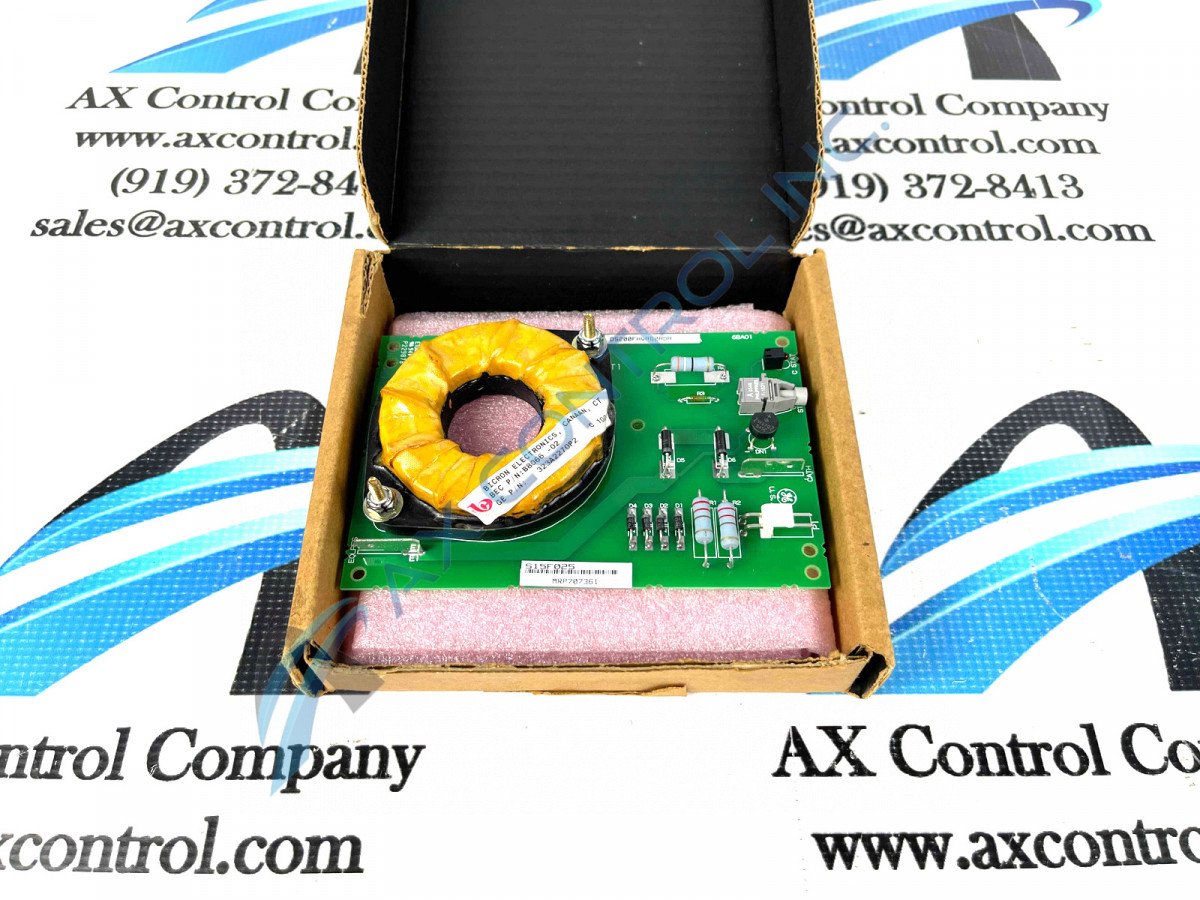

GE High Voltage Gate Interface Board DS200FHVAG2

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200FHVAG2 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200FHVAG2
  • SKU: DS200FHVAG2GBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200FHVAG2

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
GE High Voltage Gate Interface Board DS200FHVAG2

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200FHVAG2 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200FHVAG2
  • SKU: DS200FHVAG2GBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200FHVAG2 Technical Specifications

Instruction Manual GEI-100224
Manufacturer GE General Electric
Part Number DS200FHVAG2
Product Type High Voltage Gate Interface Board
Series Mark V

Product Description

The GE High Voltage Gate Interface Board DS200FHVAG2 is an interface between the SCR bridge and the LCI power converter and also provides cell monitoring functions to the LCI power converter. The DS200FHVAG2 board has 1 LED indicator that you can use for troubleshooting. The LED indicator is lit when bridge power is on. The LED dims as the power decreases.

You can view the LED while the drive is powered on and the board is operating, however the board contains high-voltage electricity and can result in injury, fire, equipment damage or death if the board it touched while operating. So, if you suspect a problem with the board, view the LED and verify that the board is working properly.

The replacement board arrives at your location wrapped in a static-protective bag because the board can be damaged by static electricity. Best practice is to keep the board wrapped in the bag until you are ready to install it. Keep the board wrapped and hold the board with one hand on one edge of the board and the other hand on the other edge. Touch the bag to an unpainted metal surface on the drive or any nearby structure or equipment. This action drains all the static from your body and from the board. Then,  remove the board from the bag and insert it into the drive and place it on the board carrier.

You can put it down if you have to by flattening out the bag on a flat surface and placing the board directly on the bag.



Frequently Asked Questions about DS200FHVAG2

What are the dimensions of DS200FHVAG2?
DS200FHVAG2 is 3.25 inches high by 5 inches wide.
What does DS200FHVAG2 have circuits to?
DS200FHVAG2 contains circuits to: provide an isolated path for gate power, from the FGPA board to one 77mm SCR; DS200FHVAG2 has circuits that sense the voltage drop across the SCR and send a signal back to FGPA when the voltage is above a certain threshold; DS200FHVAG2 has an LED mounted on DS200FHVAG2 when SCR blocking voltage is present. This LED on DS200FHVAG2 is for visual indication of the presence of cell voltage. These circuits on DS200FHVAG2 are the gate pulse transformer, gate termination circuit, SCR cell status circuit, and diagnostic LED. For more detailed descriptions of DS200FHVAG2's circuits, view the descriptions of each circuit in the manual for DS200FHVAG2 - Manual GEI-100224.
What is the E1 connection on DS200FHVAG2?
The E1 connection on DS200FHVAG2 is the the equalizer resistor connection or DS200FHVAG2's stab connector. This connection on DS200FHVAG2 is identified by a EQLRES nomenclature.
Which manual applies to DS200FHVAG2?
The manual that applies to DS200FHVAG2 is Manual GEI-100224, the GE Motors and Industrial Systems High Voltage Gate Interface Board Manual. This manual provides a functional description of DS200FHVAG2, including details on DS200FHVAG2's circuits, the manual provides DS200FHVAG2's application data, and the manual gives reneway/warranty replacement information for DS200FHVAG2. For a copy of the manual, request manual GEI-100224.
