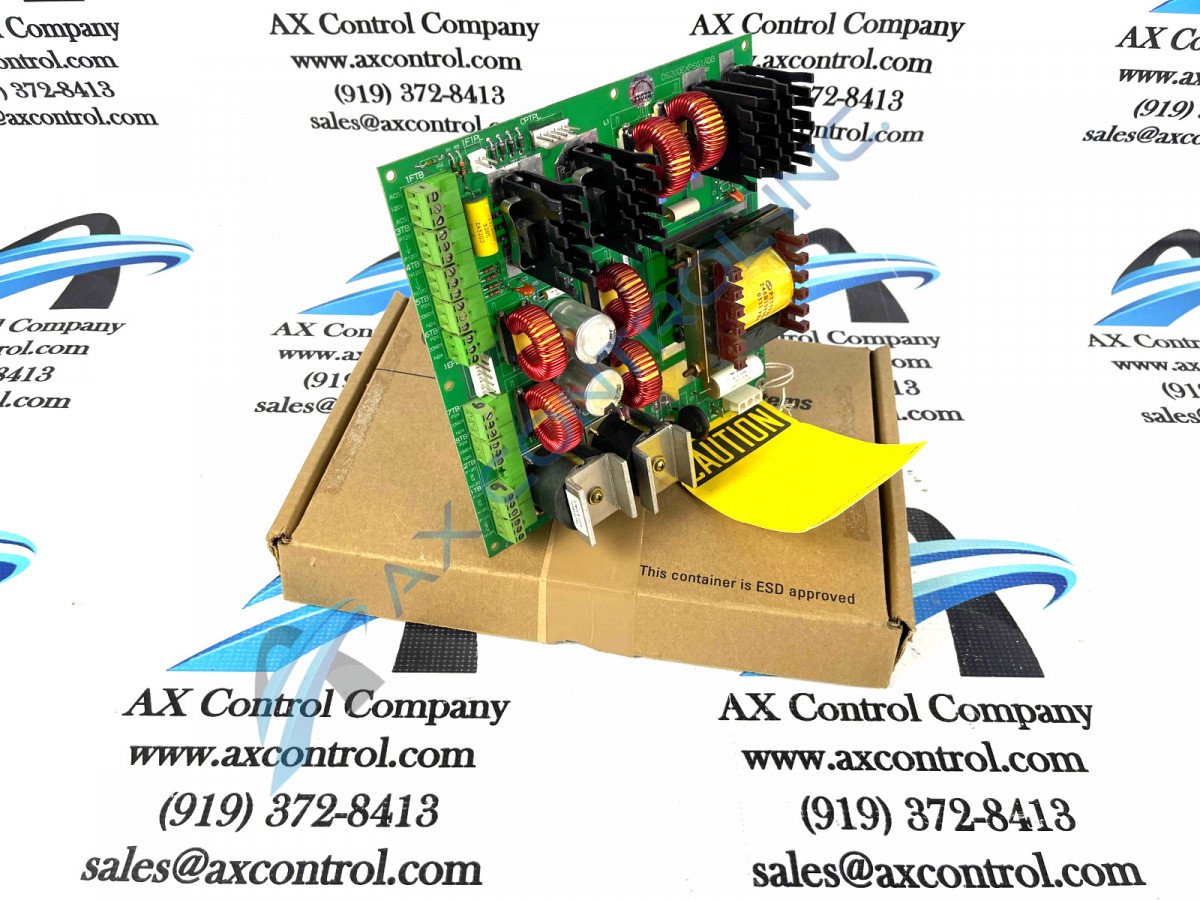

A printed circuit board component manufactured by GE Drive Systems, the DS200EXPSG1ABB is a bulk power supply board intended for use with EX2000 Series products.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200EXPSG1ABB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200EXPSG1ABB
  • SKU: DS200EXPSG1ABBGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200EXPSG1ABB Technical Specifications

Part Number DS200EXPSG1ABB
Functional Acronym/Abbreviation EXPS
Manufacturer General Electric Company USA, GE Industrial Systems
Series EX2000
Functional Description Bulk Power Supply Board
PCB Coating Normal Coating
Functional Revision 1 A
Functional Revision 2 B
Artwork Revision B
Instruction Manual GEI-100168
Weight 1lbs
Shipping Dimensions 18x12x12 inches

Product Description

The DS200EXPSG1ABB is a power supply board used within GE’s Mark V turbine control system.  The DS200EXPSG1ABB is a Mark V Speedtronic series system, specifically designed to manage and control industrial turbine systems. The DS200EXPSG1ABB power supply board is used to provide signals for inputs to measure both AC and DC input power. The DS200EXPSG1ABB board also offers current limiting action for times the board is energized by its correspondent station battery. Please remember that while the information provided below is accurately sourced from the correct GE manuals, this particular PCB component has been revised three times and may feature slightly different dimensions.

Hardware Tips and Specifications

The DS200EXPSG1ABB model has a number of unique components including:

  • inductor coils
  • terminal blocks
  • pin connectors
  • a transformer
  • several rectifiers
  • factory-drilled holes for mounting purposes

One of this DS200EXPSG1ABB board's main features is a singular jumper, designated as manually moveable hardware, and embellished with the simple label JP1. The JP1 connector will connect to the center tap of the T1 secondary connector to the ground. For more information on this drive refer to the GEI-100168 Configurable Hardware for Bulk Power Supply Board Instruction Manual.  While this is a movable style of jumper present on the face of the EXPS PCB, it remains important to be certain your jumper setting matches that of the board you are replacing. Beyond jumper compatibility, prospective buyers of the DS200EXPSG1ABB board component part may want to consider the PCB coating present on this relatively outdated Mark V legacy model. This particular DS200 product is protected with a normal-style printed circuit board coating, which, while certainly thicker than the special conformal coating seen in many similar General Electric circuit boards, offers nothing near the same exhaustive layered coverage unique to conformal coating. The normal PCB coating specific to this product is made evident in the "G1" group designation in DS200EXPSG1ABB's product number.

Installation Tips and Specifications

As with many from the Mark V legacy series of component printed circuit boards, the DS200EXPSG1ABB model is normally-coated, therefore requiring an increased level of precautionary measures for voltage and static-safe PCB handling. When replacing the board and assessing if there is damage, make sure that every piece of equipment the DS200EXPSG1ABB board is being used with is turned off. All of the bulk power supply elements must be removed when replacing this board; please ensure there is zero potential at all of the power supply assembly connections. When removing the power supply assembly, carefully disconnect all of the attached connectors, then loosen the four mounting screws, carefully lifting the power supply out of the cabinet. This should ideally all be performed with static-proofed clothing and gloves.  Once all of the connections have been removed and the DCPL, 3GDPL, and 4GDPL have been unplugged from the old EXPS board, insert the new DS200EXPSG1ABB board into the cabinet. The final step in this process is to reconnect the detached connector, in order to carefully reinstall the power supply to the cabinet.

Frequently Asked Questions about DS200EXPSG1ABB

Do I really need to unplug DS200EXPSG1ABB's power assembly to replace the PCB?

Yes. There is no avoiding removal of the assembly's bulk power supply when needing to replace the PCB. There should be zero remaining potential at any one of the various connections of the power supply assembly.

When does the DS200EXPSG1ABB provide current limiting action?

The DS200EXPSG1ABB's current limiting capability is triggered by an energized supply from the assembly's station battery.

Is the DS200EXPSG1ABB a legacy series product?

Yes. While the similar Mark VI series of printed circuit board component parts is still manufactured by General Electric, the Mark V series of automated drive products has been discontinued by the original manufacturer, and is therefore considered a legacy series product. Here at AX Control we make every effort to keep an updated inventory of obsolete and refurbished legacy drive products, for all of your industrial automation needs.
