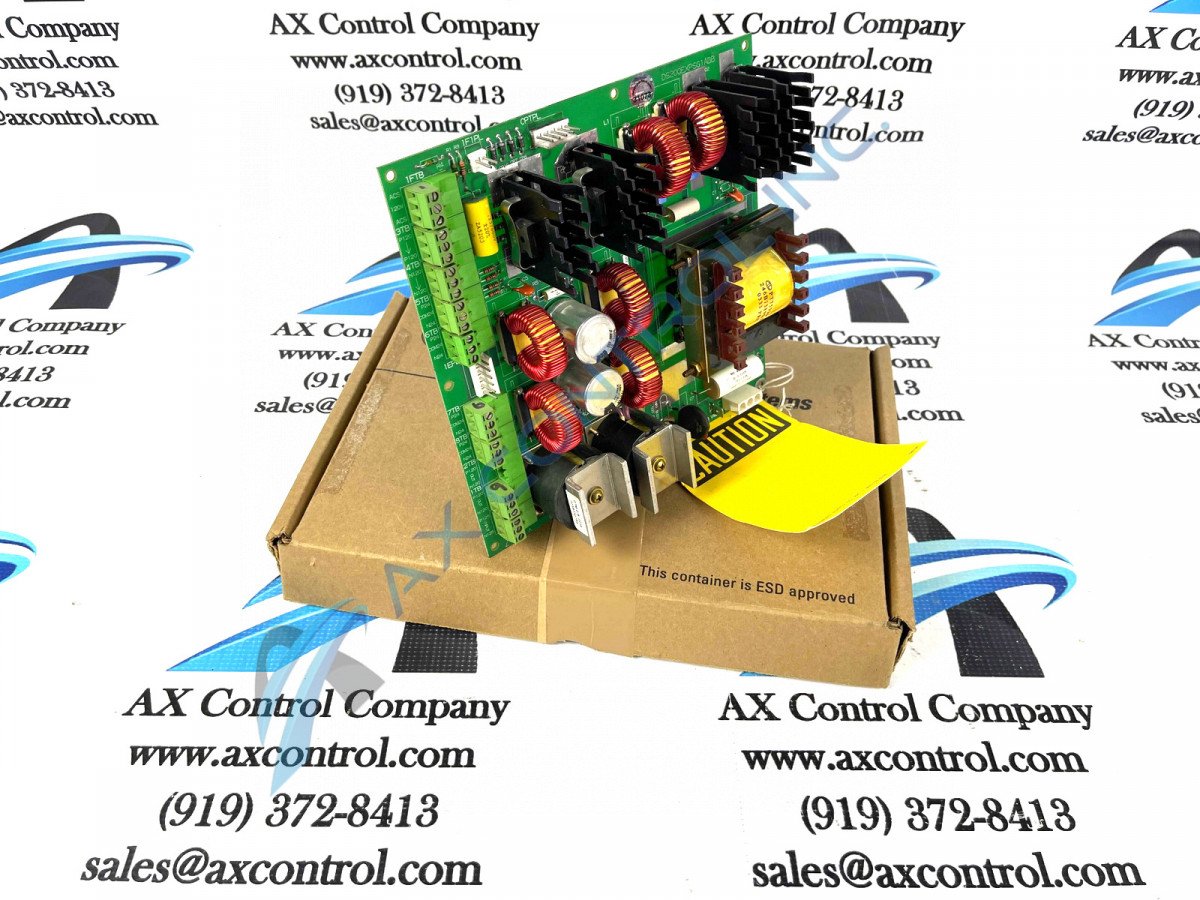

GE Power Supply Board DS200EXPSG1A

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200EXPSG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200EXPSG1A
  • SKU: DS200EXPSG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200EXPSG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
GE Power Supply Board DS200EXPSG1A

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS200EXPSG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200EXPSG1A
  • SKU: DS200EXPSG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200EXPSG1A Technical Specifications

Instruction Manual GEI-100168
Manufacturer GE General Electric
Part Number DS200EXPSG1A
Product Type Bulk Power Supply Board
Series Mark V

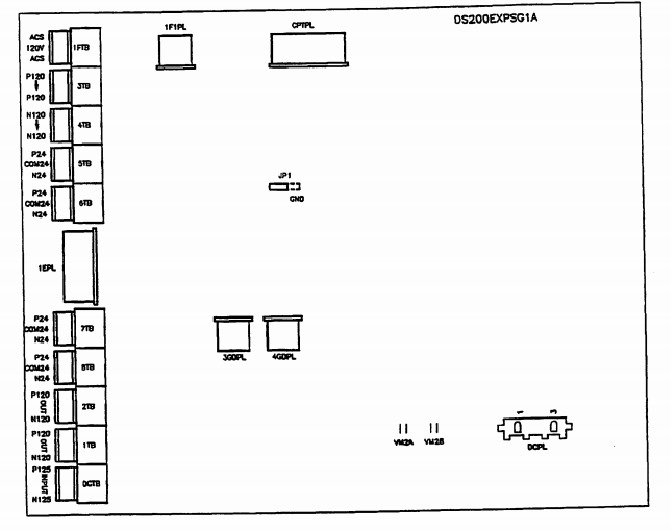

Product Description

The GE Power Supply Board DS200EXPSG1A features one reset button, 3 fuses, and 1 LED. The GE Power Supply Board DS200EXPSG1A also is populated with 3 9-pin connectors, multiple capacitors, and test points. The 3 fuses on the board serve to protect all of the components on the board from over-voltage situations as well as other irregular voltage conditions. The element inside the fuse will melt if too much voltage is present in the circuit. In that case, the circuit the fuse is part of will cease operation, power will stop entering the circuit, and all components will be protected from the voltage condition. However, if the fuse blows, the servicer must determine the cause of the over voltage condition and the fuse must be replaced. If you are not familiar with the electrical supply used with the drive, consult with an engineer or other knowledgeable individual.

Refer to the written material that came with the board for the ratings of the fuses. It is important that you only replace the fuses with fuses with the identical rating. Another rating fuse might subject the components to voltage that could damage the board by exposing the components to too much voltage.

Once you are satisfied that the over-voltage condition is resolved, remove power from the drive. Then, disconnect all cables attached to the board and use a screwdriver to remove the 4 screws that attach the board to the rack cabinet. Examine the fuses and replace the fuses that are blown.




Frequently Asked Questions about DS200EXPSG1A

What is the manual for DS200EXPSG1A?
The manual for DS200EXPSG1A is Manual GEI-100168. This manual is the GE Drive Systems Configurable Hardware for Bulk Power Supply Board Manual. This manual is specific to DS200EXPSG1A and the manual is an original GE document, the manual covers most general info on DS200EXPSG1A, and the manual will be helpful with hardware on DS200EXPSG1A.
What does DS200EXPSG1A provide when supply is energized from the station battery?
When supply is energized from the station battery, DS200EXPSG1A provides a current limiting action.
What jumper does DS200EXPSG1A have?
DS200EXPSG1A has a JP1 jumper. This jumper on DS200EXPSG1A is a manually moveable jumper. JP1 on DS200EXPSG1A connects the center tap of T1 secondary to ground on DS200EXPSG1A.

Repair Services For DS200EXPSG1A

Type Lead Time Price Action
Repair Service 1-2 weeks $755

Our highly skilled technicians can repair your DS200EXPSG1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
