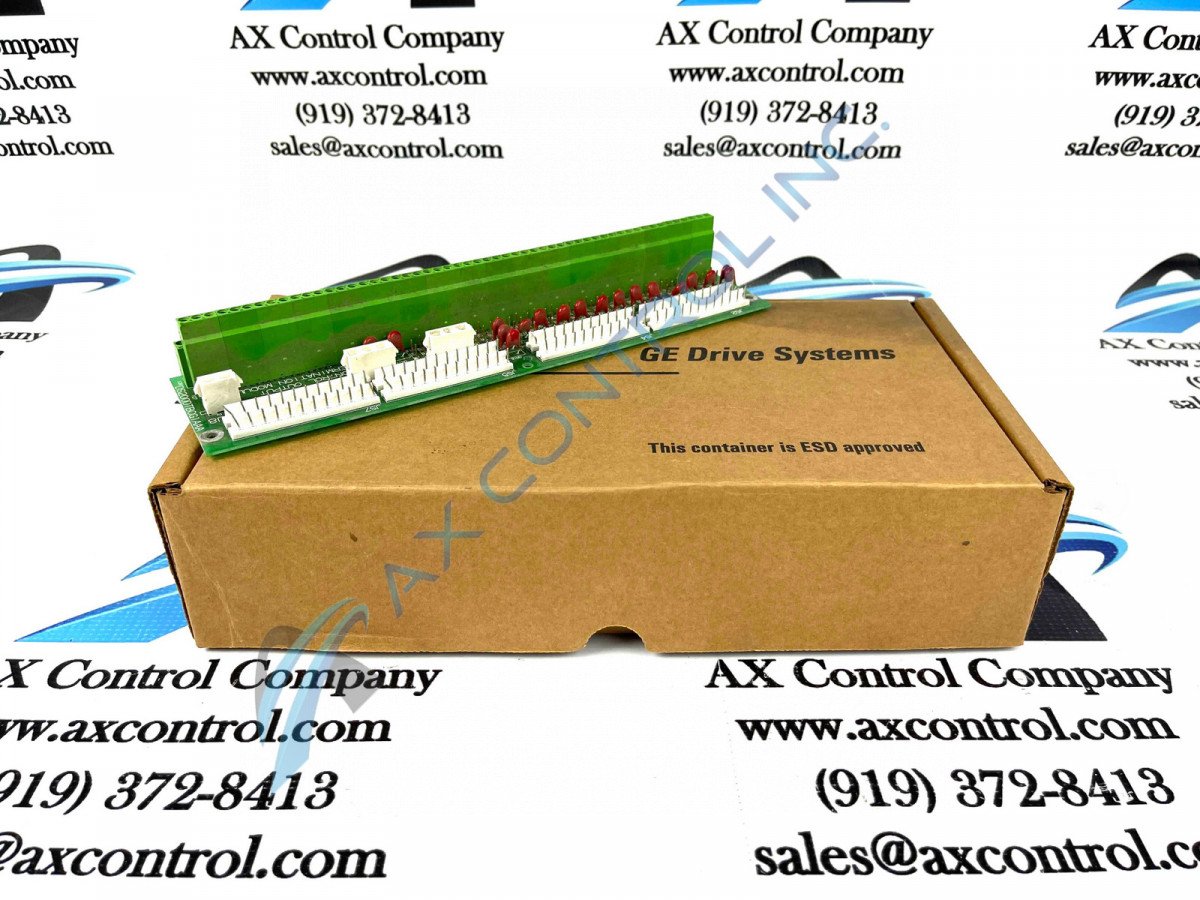

The DS200DTBCG1A Connector Relay Terminal Board was manufactured by General Electric for the Mark V Series.



Sell Surplus: Have a DS200DTBCG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200DTBCG1A
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200DTBCG1A Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200DTBCG1A
Functional Description Connector Relay Terminal Board
Functional Acronym DTBC
PCB Coating Normal Coating
Functional Revision 1 A

Product Description

The GE Connector Relay Terminal Board DS200DTBCGIA features 2 terminal blocks with terminals for 110 signal wires in each. It also contains 2 3-wire bayonet connectors and 1 2-wire bayonet connector and 10 jumpers.

The board is 3 inches in height and 11.5 inches in length. Spaces are available inside the drive for mounting the board. Because the board can have 220 signal wires attached to it, it is important that you mount it where the signal wires can be routed properly. The signal wires can not be routed near power cables due to the risk of interference. The power cables are considered noisy which means they radiate signal noise that can interfere with the accuracy of the signals received by the board. They also interfere with the signals received by the board. Sometimes shielded wires can be used to block the interference. However, the best solution is to route the power cables separately from the signal wires. If they must be routed together, it is best to limit the length of the run they are bundled together. The more current a power cable carries the further away the power cable and signal cables should be routed from each other.

Route the signal wires so that they do not interfere with the air flow inside the drive. The drive is designed so that cool air enters the drive at the bottom of the drive through air vents. The air flows over the heated components and carries away the heat through vents at the top of the drive.

If fiber optic cables are routed inside the drive, the power cables can be routed together with the fiber optic cables. That is because fiber optic cable are immune from interference.

Frequently Asked Questions about DS200DTBCG1A

Which plugs on DS200DTBCG1A provide the most power to DS200DTBCG1A's solenoids?
The plugs labeled J8x provide the power to most of the 125 VDC solenoids connected to the DS200DTBCG1A terminal board.
What terminal board does DS200DTBCG1A connect to?
The J8x cables that power most of the solenoids connected to DS200DTBCG1A connect to the DS200DTBCG1A first and then there is a jumper to connect DS200DTBCG1A to the DTBD terminal board.
What are relay outputs 1-15 on DS200DTBCG1A?
Relay outputs 1-15 on DS200DTBCG1A are either dry contact or 125 VDC for solenoids.
