The DS200DSFBG1ACB Shunt/Driver Feedback Board was first mass-produced for General Electric's Mark V Turbine Control Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200DSFBG1ACB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200DSFBG1ACB
  • SKU: DS200DSFBG1ACBGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200DSFBG1ACB Technical Specifications

Original Manufacturer GE Industrial Systems
Product Series Mark V Speedtronic
Functional Product Number DS200DSFBG1ACB
Functional Abbreviation DSFB
Assembly Type Normal Assembly
Mark V Series Grouping Group 1
Backwards-Compatibility 1st two revisions

About the DS200DSFBG1ACB

The DS200DSFBG1ACB is a driver shunt feedback board designed by General Electric for use within Mark V systems. The Mark V is a turbine control system series that includes drivers and exciters. Shunt feedback cards, such as this DS200DSFBG1ACB model PCB, are used to control current. As you most likely have been able to guess based off of its full extended series name, the Mark V Turbine Control System Series that this DS200DSFBG1ACB PCB belongs to has specific applications in the management and control systems of compatible and popular wind, steam, and gas turbine automated drive assemblies, and is considered a now-obsolete legacy product series given the eventual manufacturing discontinuation that took place in the many years following its initial Mark Series release. With this being true, this DS200DSFBG1ACB printed circuit board or PCB for short's greater Mark V Series is still something of a distinguished General Electric product series as it exists as one of the final-developed product series to make use of the company's patented Speedtronic control system technology first introduced with the rollout of the Mark I Series in the later 1960s. This DS200DSFBG1ACB PCB, while definable in its own right as a Driver/Shunt Feedback Board, is not the originally-developed Mark V Series product of this functionality; that would be the DS200DSFBG1 parent PCB missing all three of this DS200DSFBG1ACB device's three significant product revisions.

Hardware Tips and Specifications

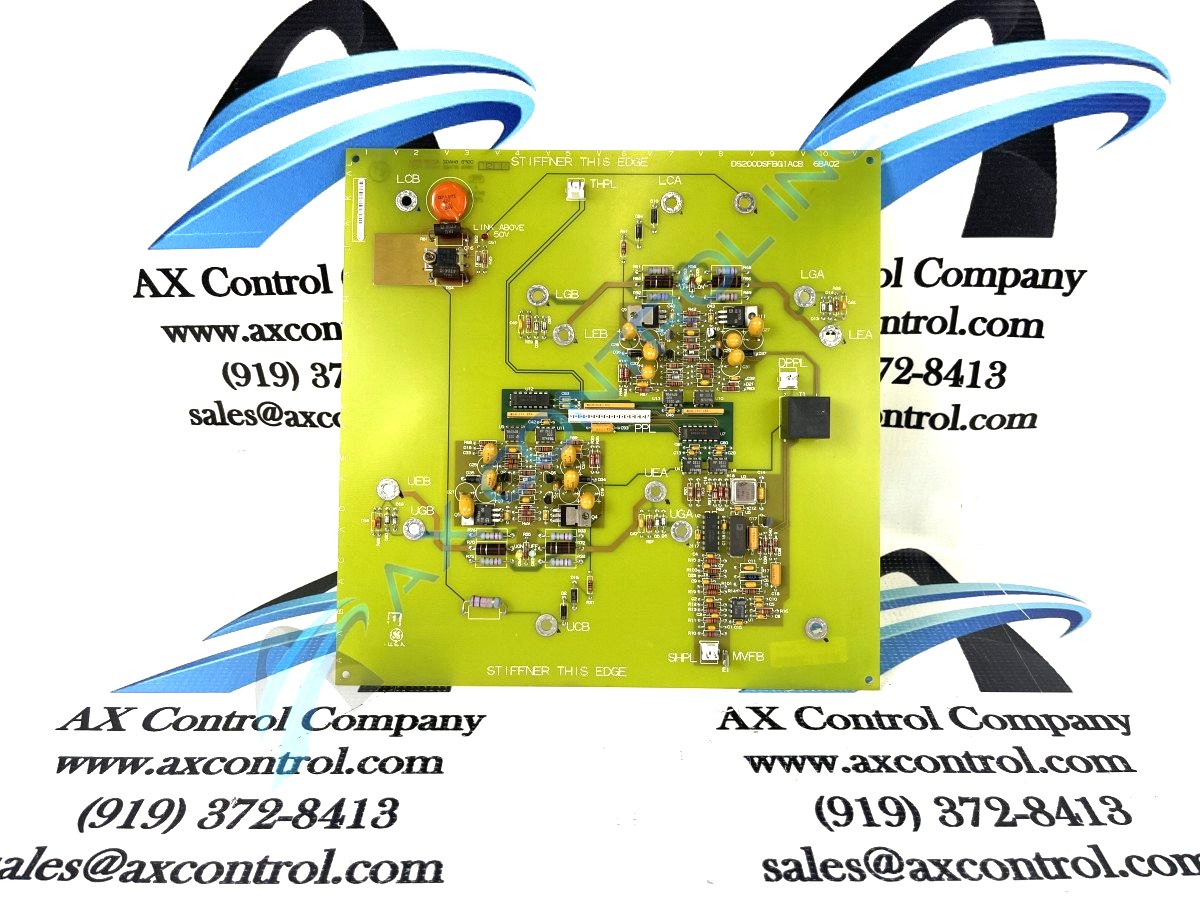

The DS200DSFBG1ACB Driver/Shunt Feedback Board is a large, nearly-square board. While stiffeners are not installed in the DS200DSFBG1ACB PCB itself, markings for their installation are located on two of the four board edges. These metal bars help increase the rigidity of the circuit board and solder joints and traces from vibration and shock damage. The DS200DSFBG1ACB is additionally drilled in each corner to allow for mounting options.  Two board edges are marked with alignment points, and the DS200DSFBG1ACB board itself is marked with the GE logo. The DS200DSFBG1ACB Driver/Shunt Feedback board has over ten eyelets located within the body of the board, which are ringed with conductive material and will be used for connections to device gates and emitters. Other board components relevant to prospective buyers of this DS200DSFBG1ACB Feedback board include transistors, a transformer, resistor network arrays, varistors, and resistors.  The board also has integrated circuits, LED indicators, and both vertical pin and stab-on connectors. There is no configurable hardware on this particular General Electric Mark V Series board.

More information about board components along with detailed information regarding proper handling and installation techniques can be located within original documentation from General Electric. This documentation includes data sheets, manuals, and user guides that specify this part number. Some documents may be available through our site, although documentation for this specific Mark V Series product is relatively scarce online. Before deciding to purchase this DS200DSFBG1ACB Driver/Shunt Feedback Board, it is crucial to respect this product's status as a thrice-revised Mark V Series product offering that have been changed from its original base-revised functionality.

Frequently Asked Questions about DS200DSFBG1ACB

Does this DS200DSFBG1ACB Shunt/Driver Feedback Board have any special assembly version?

No. As evidenced by the presence of the standard-assembly DS200 tag in the DS200DSFBG1ACB functional product number, this DS200DSFBG1ACB Shunt/Driver Feedback Board does not have a special assembly version.

Is this DS200DSFBG1ACB Shunt/Driver Feedback Board considered a fragile PCB?

Yes. This DS200DSFBG1ACB Shunt/Driver Feedback Board consists of a thin plastic backplate on which it houses its crucial hardware components. This is a rather thin and fragile backplate mounting system, so take care during installation.

Reviews For DS200DSFBG1ACB

Internal Review
(5.0)

This neon-yellow DS200DSFBG1ACB printed circuit board from GE plays a crucial role in their Mark V Series as a Shunt/Driver Feedback Board, as explained in the meat of the previous DS200DSFBG1ACB personalized content page. While this DS200DSFBG1ACB Shunt/Driver Feedback Board makes use of its full range of three total significant product revisions, it is not considered to possess any sort of special assembly version. This DS200DSFBG1ACB General Electric PCB is available for repair or replacement, with a one to two week lead time on most repairs. - AX Control Lead Technician
