This DS200DMCAG1AHC Gen/Log/Key Interface Board was manufactured for General Electric's Mark V Turbine Control Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200DMCAG1AHC to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200DMCAG1AHC
  • SKU: DS200DMCAG1AHCGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200DMCAG1AHC Technical Specifications

Part Number DS200DMCAG1AHC
Manufacturer GE General Electric
Series Mark V
Functional Description Interface Board
Functional Acronym DMCA
PCB Coating Normal Coating
Functional Revision 1 A
Functional Revision 2 H
Artwork Revision C

Product Description

The DS200DMCAG1AHC is a PC Interface Board made by GE for its Mark V series of Speedtronic turbine control systems. The Mark V Series is a legacy series and is no longer supported by GE. It may be somewhat hard to find, but AX Control does try to keep it stocked as either a new surplus or refurbished part. This DS200DMCAG1AHC printed circuit board is specifically definable as a Gen/Log/Key Interface Board, as it is described in original Mark V Series instructional manual materials. This DS200DMCAG1AHC printed circuit board is not the original Gen/Log/Key Interface Board that was manufactured for placement in the Mark V Series, however; that would be the parent DS200DMCAG1 printed circuit board option missing this DS200DMCAG1AHC product's three significant revisions.

Hardware Tips and Specifications

As with any Mark V Series product, this DS200DMCAG1AHC Gen/Log/Key Interface Board makes use of its own series of specific hardware component inclusions and specifications to gain normative functionality. The DS200DMCAG1AHC is a very large rectangular printed circuit board that contains many different components. Along the edges and corners, there are factory drilled holes that can be used to mount the board into place; these holes have been insulated in observance of potentially-present surface voltages.

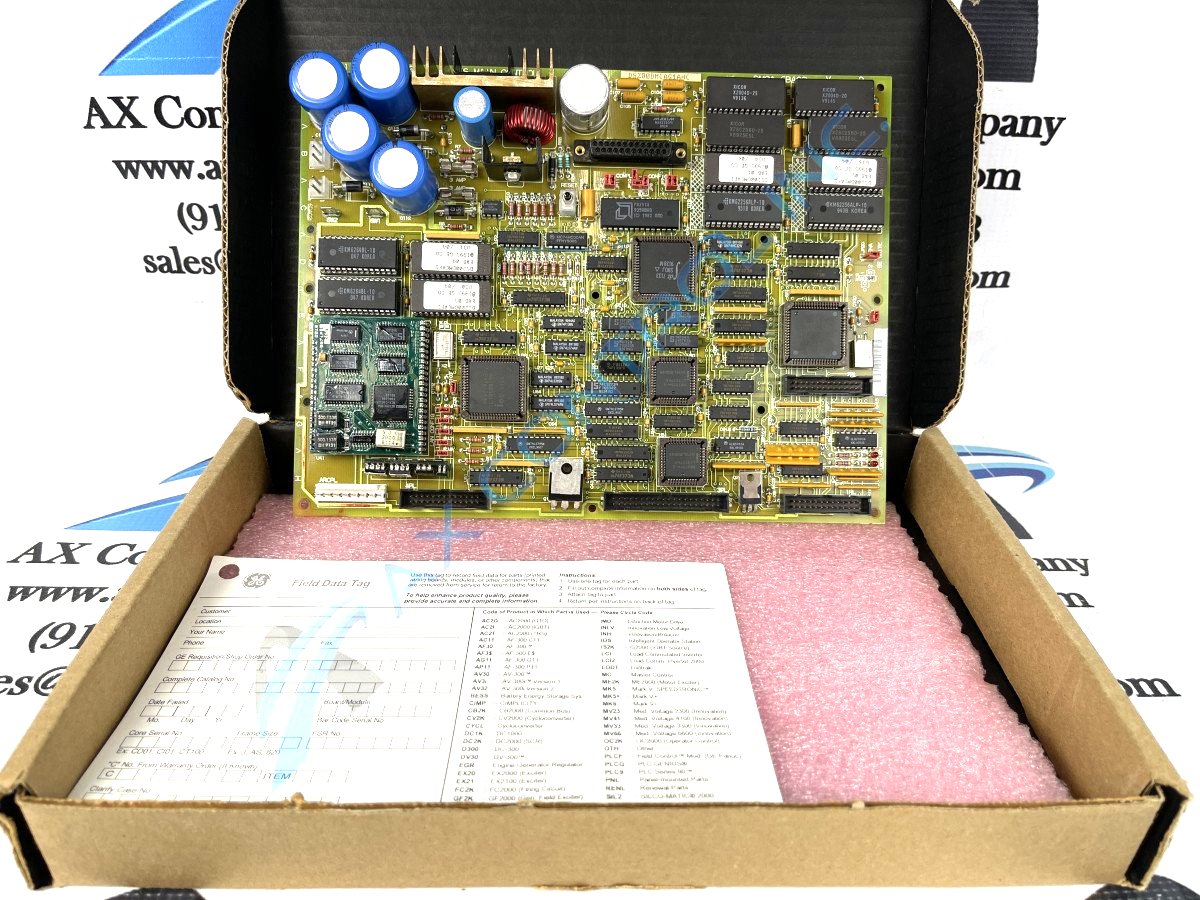

Along the bottom edge of this DS200DMCAG1AHC PCB are three connectors that have male pin connections. In the top, left corner of the board are a series of four blue capacitors. There are nine resistors that are scattered around these capacitors. Next to the series of four capacitors is a smaller blue capacitor that is directly next to an inductor coil. There is a female RS-232 26-pin d-shell connector that has the ability to screw into place as well in the assembly of this Mark V Series product. Next to that is a series of large integrated circuits, standard to most General Electric PCBs. Above the RS-232 connection is an another integrated circuit; this one accompanied by four resistors. Below the relays are fourteen integrated circuits and fourteen resistor network arrays. Below the inductor coil and RS-232 connector are seventeen resistors, twenty-seven integrated circuits, and four resistor network arrays. There are also a good number of diodes scattered in this section. Below the four capacitors are four more relays and a very small auxiliary daughterboard that has eight integrated circuits, and there are ten resistors next to the small circuit card. All of these aforementioned hardware components should be well-protected by the normal style of PCB protective coating offered to the assembly of this DS200DMCAG1AHC Mark V Series product.

Frequently Asked Questions about DS200DMCAG1AHC

Can AX Control provide surplus (New or Used) DS200DMCAG1AHC or do they only provide repair?
We provide both New Surplus and Reconditioned surplus when available and do our best to keep them in inventory to assist with line down situations. In addition, AX Control can repair the DS200DMCAG1AHC and provide a detailed diagnosis, repair report, and warranty.
How much does the DS200DMCAG1AHC cost and what is the lead time?
Please give us a call for specific pricing based on the condition and quantity requested. In most cases, AX Control can ship within 3-5 days. If New Surplus is in stock and on the shelf we try to ship same day.
Is the DS200DMCAG1A the same as the DS200DMCAG1AHC?
The short answer is yes. The DS200DMCAG1AHC is a later revision of the base part number. While many GE General Electric Mark V boards are backwards compatible, we ask that you check with us prior to purchasing a revision other than what you are replacing in your application.

Reviews For DS200DMCAG1AHC

Internal Review
(5.0)

This DS200DMCAG1AHC printed circuit board is a General Electric product that, as mentioned above, has a very specific intended application within its greater Mark V Series, as a Gen/Key/Log Interface Board. This DS200DMCAG1AHC PCB is edited from its original factory-printed status through its application of two functional product revisions and a singular artwork configuration revision. The second functional revision made to the assembly of this DS200DMCAG1AHC product is the seldom-seen H-rated secondary functional revision. - AX Control Lead Technician
