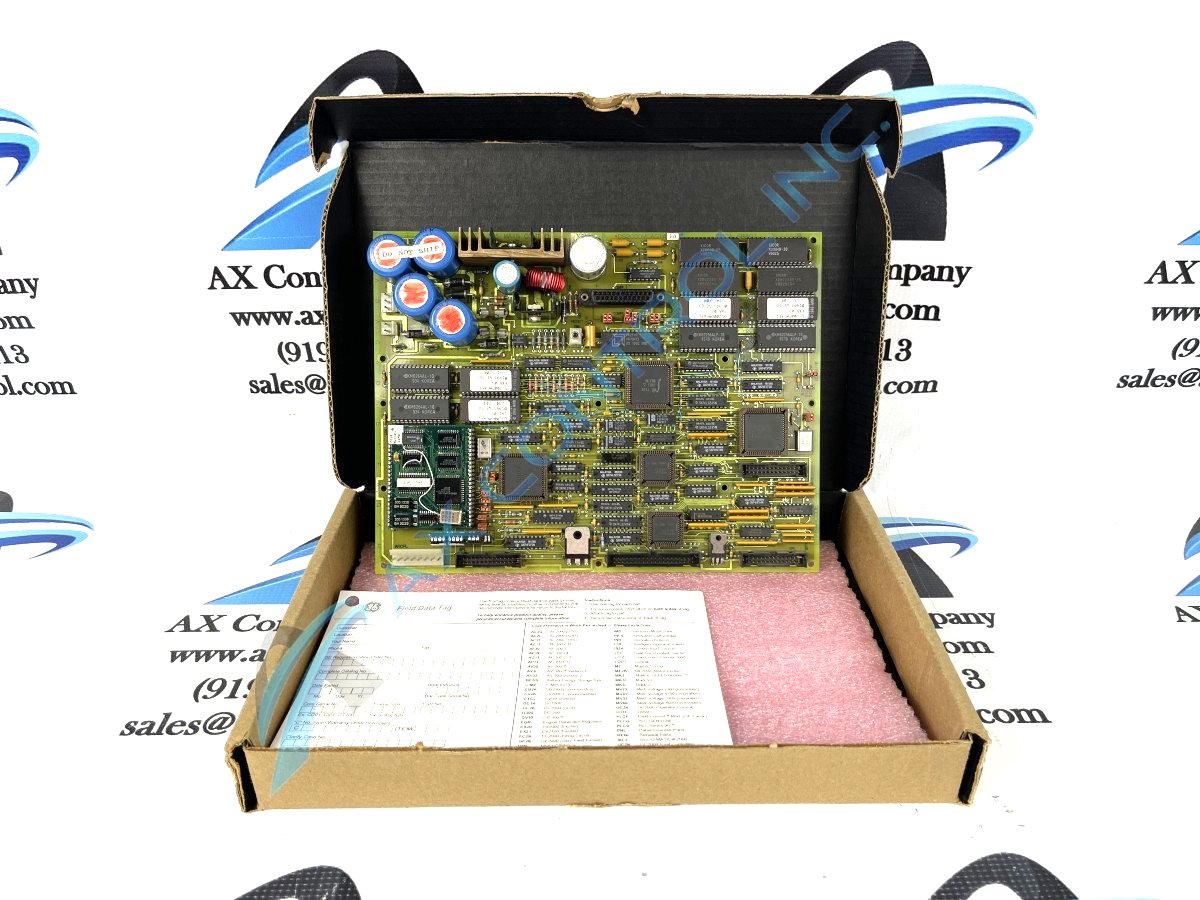

A member of the Mark V Series of turbine control systems, this DS200DMCAG1AEA Interface Board was designed by General Electric.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200DMCAG1AEA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200DMCAG1AEA
  • SKU: DS200DMCAG1AEAGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200DMCAG1AEA Technical Specifications

Original Manufacturer GE General Electric
Product Series Mark V Speedtronic
Functional Part Number DS200DMCAG1AEA
Functional Product Description Interface Board
Functional Acronym DMCA
PCB Coating Style Normal Coating
1st Functional Revision A
2nd Functional Revision E
Artwork Revision A

About the DS200DMCAG1AEA

The DS200DMCAG1AEA is a General Electric Interface board that was originally manufactured for use within the company’s Speedtronic systems like the Mark IV.  The Mark IV was the first of these systems to offer TMR (triple modular redundant) control that reduced downtime caused by equipment issues, before being quickly followed by the optimized Mark V Series, of which this DS200DMCAG1AEA Interface Board is a member. The DS200DMCAG1AEA is no longer manufactured by GE but is available for sale from AX Control as either a new-used liquidated part or as a refurbished used unit.

Hardware Tips and Specifications

The DS200DMCAG1AEA includes over fifty ICs ( integrated circuits), including those on the surface of the small auxiliary board attached to the bottom right of the DS200DMCAG1AEA. ICs include several FPGAs (field programmable gate arrays) and oscillating chips. The DS200DMCAG1AEA unit's assembly also has two heat sinks, an inductor coil, and multiple high-voltage electrolytic capacitors. Other capacitors present in the assembly of this DMCA-abbreviated Interface Board are made from polyester vinyl and ceramic material.  Board resistors tend to be made from metal film. The DS200DMCAG1AEA has fifteen resistor network arrays in total. Connections from the DS200DMCAG1AEA Interface Board to other boards or off-board components are made via three vertical pin header connectors, a single female cable connector, four male vertical pin cable connectors, and several stab-on connectors. The board can be user-configured via multiple jumper switches, and is protected by two fuse components mounted in fuse holders. Finally, this DS200DMCAG1AEA Interface Board also has a single reset switch and several LED indicators. All of these aforementioned hardware components should receive at least a rudimentary level of protection from the normal style of PCB coating utilized by this General Electric printed circuit board, which exists as a thick basic layer of protection that prioritizes central hardware components to the normative function of this Mark V Series product.

This DS200DMCAG1AEA printed circuit board's normal style of PCB coating was only discoverable upon a thorough analysis of the DS200DMCAG1AEA functional product number, which is necessary given this DS200DMCAG1AEA PCB's insertion in a now-obsolete Mark V Turbine Control System Series. The DS200DMCAG1AEA functional product number codes for different DS200DMCAG1AEA Board hardware components and component specifications in several functional naming chunks. For example, the DS200DMCAG1AEA functional product number begins with the DS200 series tag dictating this DS200DMCAG1AEA PCB's normal Mark V Series assembly as well as its domestic location of original manufacture. Some of this DS200DMCAG1AEA Interface Board's hardware details revealed in the DS200DMCAG1AEA functional product number include:

  • The DMCA functional product abbreviation
  • A Group one Mark V Series product grouping
  • A normal style of PCB coating as mentioned before
  • An A-rated primary functional product revision
  • An E-rated secondary functional product revision
  • An A-rated artwork configuration revision

Frequently Asked Questions about DS200DMCAG1AEA

Are this DS200DMCAG1AEA Mark V Interface Board's three significant product revisions backwards-compatible?

No. The three product revisions made to this DS200DMCAG1AEA Interface Board are not backwards-compatible, as the third revision exists as an artwork revision different from the other two functional revisions.

What Mark V Series Group does this DS200DMCAG1AEA Interface Board belong to?

This DS200DMCAG1AEA Interface Board belongs to the first group or group one of General Electric's Mark V Series of turbine control system products.

Reviews For DS200DMCAG1AEA

Internal Review
(5.0)

This DS200DMCAG1AEA Interface Board, while only somewhat lacking in terms of its available instructional manual materials for research purposes on the internet, still exists as a robustly-supported General Electric product; with its full range of accepted significant revisions utilized. This DS200DMCAG1AEA Interface Board seems to feature a printed circuit board assembly jammed-packed with various voltage-limiting components for safe normative use as well. Finally, this DS200DMCAG1AEA Interface Board can be repaired here at AX Control, with a standard lead time of one to two weeks. - AX Control Lead Technician
