DS200DCVAG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product

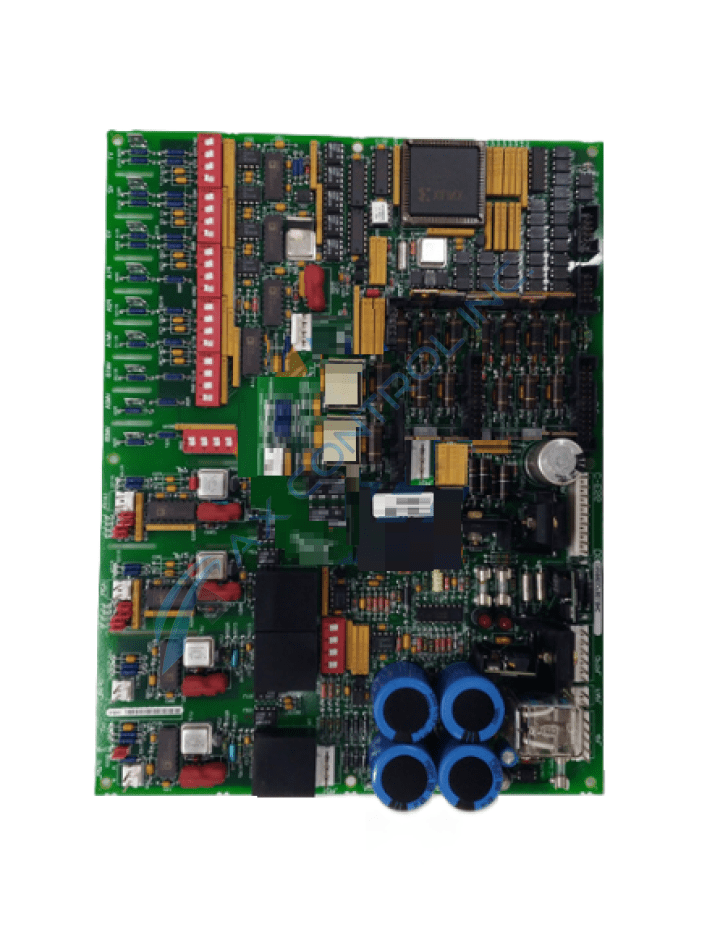

General Electric Mark V DC Power and Instrument Board DS200DCVAG1A. This board can be used in a programmable turbine control system. The DS200DCVAG1A board has a software-implemented fault tolerance application.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a DS200DCVAG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200DCVAG1A
  • SKU: DS200DCVAG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200DCVAG1A Technical Specifications

Altitude Max. of 2000 M
Ambient Temperature 0 to 45°C
Manufacturer GE General Electric
Redundancy Modes TMR, Simplex, and Dual
Thermocouple Types 10 Ω Copper, 200 Ω Platinum, 100 Ω Nickel, and 120 Ω Nickel
Series Mark V
Part Number DS200DCVAG1A
Product Type DC Power and Instrumentation Board

Product Description

The DC Power and Instrument Board DS200DCVAG1A is part of the Speedtronic Mark V Series produced by General Electric. This model can be used in a completely programmable turbine system to meet the needs of the different behaviors of the steam and gas turbines. Some features of this board are as follows:

  • Built-in Diagnostics

  • Direct Sensor Interface

  • Triple Modular Redundant Architecture

  • Software Implemented Fault Tolerance

These are just a few of the many features on the DS200DCVAG1A board. The other features of this board can be found in the GEI-10040 Speedtronic Mark V Instruction Guide.

The analog inputs and outputs for the DS200DCVAG1A board will be received through transducers on the turbine for speed and vibration sensors. The inputs for this board can be used as either current or voltage inputs depending on the jumper setting.

While the DS200DCVAG1A board is no longer in production it can still be found in both used and new surplus. For more information regarding the shipping and pricing of this board, please contact AX Control’s sales department for quotes on both shipping and pricing information at (919) 372-8413 or at sales@axcontrol.com. If you need this board to be shipped on the day of purchase please reach out before 3 p.m. that day.

Reviews For DS200DCVAG1A

Internal Review
(4.0)

It is known that the DS200DCVAG1A board has a variety of built-in diagnostics. If this board is dropped or receives any damage it will immediately need to be replaced to ensure that the board does not malfunction if the board is damaged. - AX Control Technician

Repair Services For DS200DCVAG1A

Type Lead Time Price Action
Repair Service 1-2 weeks $1145

Our highly skilled technicians can repair your DS200DCVAG1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
