DS200DCFBG2BNC

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.93 (15)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.93 (15)
  • Click a star to rate this product

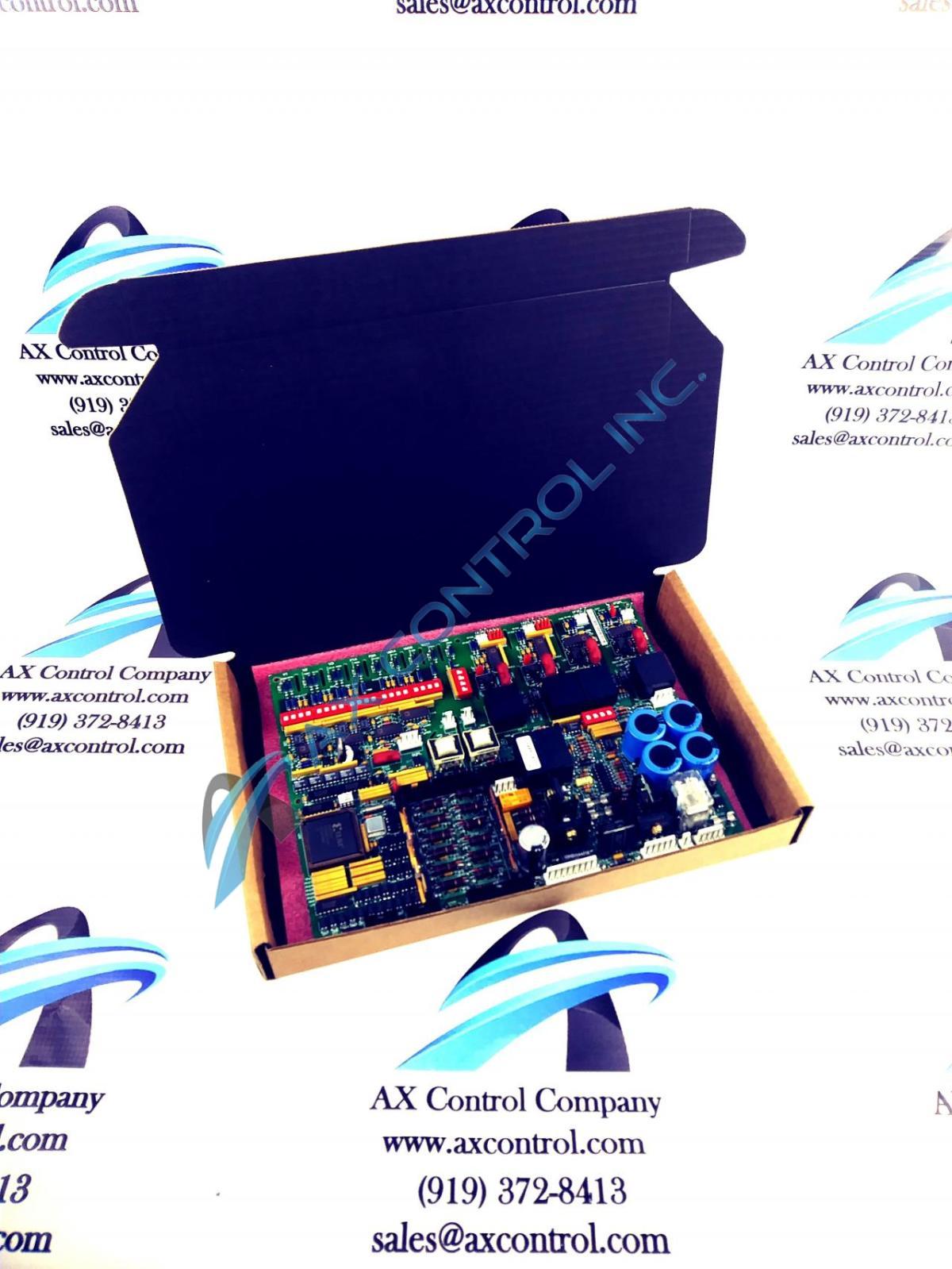

The DS200DCFBG2BNC DC2000 DC Feedback Board was manufactured for General Electric's Mark V Series. Worldwide Shipping Available. All boards come with our 3 Year Warranty.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200DCFBG2BNC to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200DCFBG2BNC
  • SKU: GBTC-19032
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200DCFBG2BNC Technical Specifications

Manufacturer General Electric
Model Number DS200DCFBG2BNC
Abbreviation DCFB
Product Type DC Power Supply Board
Revision Quantity 3 Revisions
Backwards-Compatibility 1st two revisions
Assembly Type Normal Assembly
Weight 3.85 lb

About the DS200DCFBG2BNC

  • The DS200DCFBG2BNC is a Power Supply Board designed for GE's Mark V system.
  • The Mark V is a version of GE's Speedtronic gas and steam turbine management system, which has seen continuous development since the late 1960s.
  • The Mark V series is now considered an obsolete legacy GE product series due to its manufacturing discontinuation.
  • The DS200DCFBG2BNC is a revised version; the original device for this functionality was the DS200DCFBG2 parent Power Supply Board, which lacks the three significant product revisions found in the DS200DCFBG2BNC.

Hardware Features and Specifications
  • Connectors: Sends and receives signals via eighteen plug connectors and nine stab connectors.
    • Stab Connectors: Located in the upper left corner, labeled V1-V3, P1A, P2A, VM1A, VM1B, VB2A, and VM2BA.
    • Plug Connectors: Located throughout the board, ranging from 2-pin to multi-pin.
  • Functional Product Number Insights (due to limited manual availability):
    • DS200 series tag: Indicates normal Mark V Series assembly and domestic original manufacture.
    • DCFB: Functional product abbreviation.
    • Normal PCB coating style.
    • Group 2 Mark V Series product grouping.
    • B-rated: Primary functional revision.
    • N-rated: Secondary functional revision.
    • C-rated: Artwork configuration revision.
  • Onboard Components:
    • Seven DIP switches (for selecting AC line voltage and voltage applied to DC bridge/motor voltage feedback VCO circuits).
    • Five TP test points.
    • Twelve jumpers.
    • Three fuses for power supply protection (indicators will light if blown, including two LED lights and one neon indicator).
    • Various components: seven transformers, oscillating chips, a relay, over fifty resistor network arrays, heat sinks, integrated circuits, capacitors, and resistors.
    • Resistors include CCR (carbon composite) and metal film materials.

Important Considerations
  • Original instructional manual materials are scarce online due to the product's obsolete status.
  • Technical support was historically provided by GE. Refer to manuals, data sheets, or other publications for safety data.
  • Performance specifications and general dimensions have almost certainly been altered due to its three-fold revision history. Consider this before purchasing.

Frequently Asked Questions about DS200DCFBG2BNC

Why are only this DS200DCFBG2BNC PCB's first two revisions considered backwards-compatible?

Only this DS200DCFBG2BNC PCB's first two revisions can be considered backwards-compatible as they both exist as functional styles of product revisions.

Where specifically was this DS200DCFBG2BNC PCB manufactured?

This DS200DCFBG2BNC DC Power Supply Board's specific original manufacture location can be traced to GE's Salem, Virginia factory plant location.

Reviews For DS200DCFBG2BNC

Internal Review
(5.0)

This board includes a single neon light, two LED indicators, and five TP test points. The test points will allow users to check voltage signals, board common, and ACCT signal status. The LEDs and neon light indicate fuse state. This DS200DCFBG2BNC PCB is far from the original Mark V Series product of its functionality; possessing a full revision history including the less-than-common N-rated secondary functional product revision. Available here today with repair and replacement options at the ready. - AX Control Lead Technician
