DS200DCFBG1BUN

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.92 (12)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.92 (12)
  • Click a star to rate this product

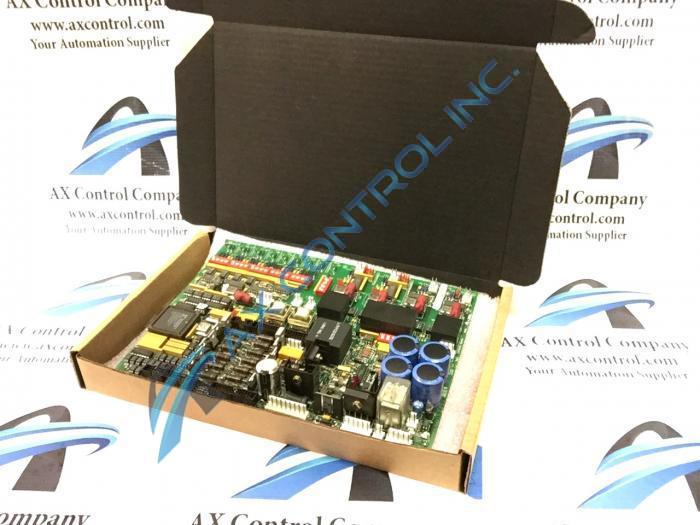

This DS200DCFBG1BUN Power Supply Board was manufactured for General Electric's Mark V Turbine Control System Series.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a DS200DCFBG1BUN to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200DCFBG1BUN
  • SKU: DS200DCFBG1BUNGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200DCFBG1BUN Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200DCFBG1BUN
Product Type Power Supply Board
Instruction Manual GEI-100028
Assembly Type Normal Assembly
Backwards-Compatibility 1st two revisions

About the DS200DCFBG1BUN

General Electric’s DS200DCFBG1BUN is a power supply board. This board is a member of the Mark V series of replacement and optional boards. Cards from this series are cross compatible, allowing for installation in a number of GE drives. Exciters and drives from the AC2000, DC2000, CB2000, ME2000, and FC2000 series can accept the card. The greater general Mark V Series that this DS200DCFBG1BUN product offering belongs to is classified as a General Electric Speedtronic series. The Speedtronic control system technology was first introduced alongside the rollout of the Mark I Series in the later 1960s, and extended through later iterations including this DS200DCFBG1BUN PCB's Mark V. While one of the later General Electric Speedtronic product series, this DS200DCFBG1BUN printed circuit board or PCB for short's greater Mark V Series is still classifiable as a now-obsolete General Electric Legacy product series, as it has been discontinued for manufacture in the many years since its original GE production. While this DS200DCFBG1BUN Mark V Turbine Control System Series product offering is definable as a Power Supply Board in its own right, the original product of this Mark V Series functionality is the DS200DCFBG1 parent Power Supply Board missing all three of the DS200DCFBG1BUN PCB's three significant product revisions.

Hardware Tips and Specifications

Sourced voltages fed to the board can rate no lower than 38 and no higher than 115 VAC. Five circuit systems are features on this card. DS200DCFBG1BUN includes the control level supply circuit, a motor field power circuit, both an AC and DC monitoring circuit, and a driver circuit. Monitoring voltages in these circuits is important to maintaining the board. Five test points are built into the card for users to test voltages and currents. Three protected fuses work to ensure that no circuits are disrupted. Should any fuse errors occur, the system’s LED and neon indicators will alert users to this. Should any configuration be required by the user, the seven DIP switches and the twelve jumpers can be modeled to fit user requirements. The three total LED or neon indicators in the assembly of this DS200DCFBG1BUN product offering have been listed icn the above-attached DS200DCFBG1BUN instructional manual for your convenience. As with any General Electric Mark V Series functional hardware component, these LEDs each correspond to their own specific factory-printed nomenclature label, as described above. The LEDs in this DS200DCFBG1BUN Power Supply Board's assembly include:

  • The CR51 Red FU2 Fuse Status Indication LED
  • The CR55 Red FU3 Fuse Status Indication LED
  • The LT1 FU1 Fuse Status Indication Neon Lamp

Each of the above-listed diagnostic indicator lights in the normal Mark V Series assembly of this DS200DCFBG1BUN product offering has been named through a combination of their aforementioned factory-printed nomenclature labels, their color if applicable, the specific pieces of DS200DCFBG1BUN Board hardware that they correspond to, and finally their application and what type of indicator they exist as. Both the DS200DCFBG1BUN and its installed drive feature installation parameters outlined by the manufacturer. These guidelines are provided to ensure that no accidental or avoidable damages happen to the device. Please refer to the device manual and datasheet for a complete guide on wiring and installing the board. The manufacturer, General Electric, originally provided all members of the Mark V board series with technical support. AX Control’s trusted sales team is ready to help with all of your DS200DCFBG1BUN needs. Current prices on this and other parts and repairs is available by contacting our sales team by phone or email.

Frequently Asked Questions about DS200DCFBG1BUN

What IGBT drive applications is DS200DCFBG1BUN used on?
DS200DCFBG1BUN is used in several IGBT drive applications. DS200DCFBG1BUN is used with: DC2000, CB2000, EX2000, FC2000, GF2000, ME2000, and AC2000.
How many protective fuses does DS200DCFBG1BUN have?
DS200DCFBG1BUN has three protective fuses. DS200DCFBG1BUN's fuses are FU1, FU2, and FU3. These fuses on DS200DCFBG1BUN are for power supply protection. When a fuse blows on DS200DCFBG1BUN, an indicator on DS200DCFBG1BUN will light up red.
What is included in DS200DCFBG1BUN's hardware?
DS200DCFBG1BUN's hardware consists of: 13 configurable jumpers, 7 dip switches, 2 LED indicators and a neon light indicator, 5 testpoints, 3 fuses, and wiring connectors, which are DS200DCFBG1BUN's 18 plug connectors and stab connectors.
Which manual is used with DS200DCFBG1BUN?
Manual GEI-100028, the GE Industrial Control Systems Power Supply Board Manual. The manual is specific to DS200DCFBG1BUN. We're happy to send you a copy of the manual for DS200DCFBG1BUN if you need it.

Reviews For DS200DCFBG1BUN

Internal Review
(5.0)

This is one of several DCFB boards available in our inventory. DCFB boards provide control-level power to drives, as well as 115 VAC power to enclosure fans. They are used in a number of different IGBT drive applications. Since boards can vary slightly from between iterations, it is typically best to reorder the exact board you are currently using. Reach out to our team if you have any questions. This DS200DCFBG1BUN PCB is normal in its normal style of PCB coating and its normal Mark V Series product assembly version. - AX Control Lead Technician

Repair Services For DS200DCFBG1BUN

Type Lead Time Price Action
Repair Service 1-2 weeks $1945

Our highly skilled technicians can repair your DS200DCFBG1BUN. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
