This DS200DCFBG1BLC DC Feedback Power Supply was manufactured for General Electric's Mark V Series of turbine control systems.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a DS200DCFBG1BLC to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200DCFBG1BLC
  • SKU: DS200DCFBG1BLCGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200DCFBG1BLC Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200DCFBG1BLC
Functional Description DC Feedback Power Supply Board

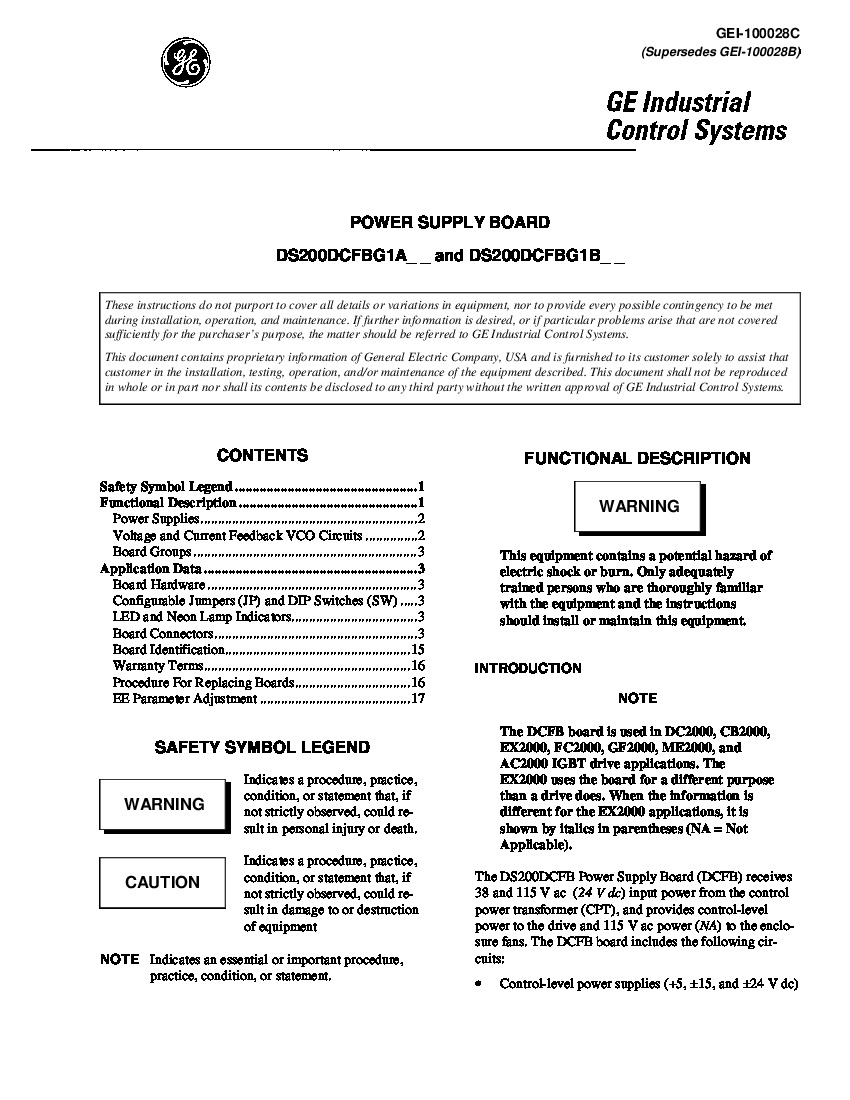

Instruction Manual GEI-100028
Functional Acronym DCFB
PCB Coating Normal Coating
Functional Revision 1 B
Functional Revision 2 L
Artwork Revision C

About the DS200DCFBG1BLC

The DS200DCFBG1BLC is a power supply board designed by General Electric for the Mark V series of optional and replacement boards. Members of this series are cross compatible with a number of GE brand exciters and drives. Drives from the DC2000, AC2000, CB2000, ME2000, and FC2000 can all accept this power board. This card provides system control level power to its installed drive, as well as electricity to the enclosure fan. Sourced AC inputs to this board can rate from 38 to 115 VAC. Frequencies accompanying this VAC can range from 0 to 500 kHz, depending on the strength of the inputted voltage. While this DS200DCFBG1BLC printed circuit board is definable as a Power Supply Board in its own right, the originally-developed Power Supply Board in the Mark V Turbine Control System Series is the DS200DCFBG1 Power Supply Board missing this DS200DCFBG1BLC product's three significant functional revisions. This DS200DCFBG1BLC Power Supply Board's greater Mark V Turbine Control System Series has, as its extended name hints, specific applications in the management and control systems of wind, steam, and gas turbine automated drive assemblies.

Hardware Tips and Specifications

DS200DCFBG1BLC contains a number of intricate circuit systems designed to power a majority of the drive. The card includes both an AC and DC monitoring circuit, the control level supply circuit, a motor field power circuit, and a driver circuit. Users can configure the twelve jumpers and seven DIP switches on the card to meet any external requirements. Board status is communicated to the user via the onboard indicators. Two LED and one neon indicators are built into the card, providing users with important diagnostic and status information. Three of the board’s fuses are protected, ensuring that any significant interruptions or surges will not disrupt the currents on the DS200DCFBG1BLC board or its greater Mark V Series automated drive assembly. Be sure to monitor voltage levels periodically using the five test points integrated into the board. Luckily enough for our sakes, the specific function of each of this DS200DCFBG1BLC product offering's five test points is described in the DS200DCFBG1BLC instructional manual embedded in the manuals tab above. This DS200DCFBG1BLC Power Supply Board's test points include:

  • The P5 +5 V dc Power Supply Testpoint
  • The DCOM 0 V Test Signals Common Reference Point
  • The P15 +15 V dc Power Supply Testpoint
  • The N15 -15 V dc Power Supply Testpoint
  • The ACCT DCFB to SDCC ACCT Signal Testpoint

All of the testpoints listed above in this DS200DCFBG1BLC board's assembly have been named through a combination of their factory-printed nomenclature labels, specific voltage ratings, and functionality in terms of the DS200DCFBG1BLC printed circuit board and its greater Mark V Turbine Control System Series automated drive assembly. The DCFB and SDCC boards accessed by this DS200DCFBG1BLC product's ACCT testpoint are additionally available here for both purchase and repair in a number of different revision styles. Following provided installation parameters from both DS200DCFBG1BLC and the drive is imperative. These guidelines will ensure that the board and its installed system operates as intended. Generally, this DS200DCFBG1BLC printed circuit board should be treated as a static-sensitive product that may possess potentially-lethal surface voltages during or after normative functional use. For a wiring and installation guide, please refer to the series manual as well as the device datasheet. Technical support for all boards in the Mark V series was originally provided by the manufacturer, General Electric. Our trusted team at AX Control is happy to help with all of your DS200DCFBG1BLC needs. Please contact a member of our team by phone or email to receive prices and availabilities on all parts and repairs.

Frequently Asked Questions about DS200DCFBG1BLC

How much input power does DS200DCFBG1BLC receive from the CPT?
DS200DCFBG1BLC receieves 38 and 115 VAC (24 VDC) input power from the control power transformer (CPT) connected to DS200DCFBG1BLC.
Where can I find descriptions of the connector pins on DS200DCFBG1BLC?
DS200DCFBG1BLC gets and sends input and output signals/power via 18 plug connectors and 9 stab connectors. Tables 6-22 in the manual for DS200DCFBG1BLC, Manual GEI-100028, provide descriptions for each of the connectors. The tables in the manual identify DS200DCFBG1BLC connectors by pin, nomenclature, and description. Figure 1 in the manual for DS200DCFBG1BLC, which is the GE Industrial Systems Power Supply Manual, also shows locations of the connectors via a DS200DCFBG1BLC board layout diagram.
How many jumpers does DS200DCFBG1BLC have?
DS200DCFBG1BLC has 12 configurable jumpers. For locations of the jumpers The jumpers on DS200DCFBG1BLC are jumpers JP1-JP14 but jumpers JP13 and JP14 have been deleted on DS200DCFBG1BLC. You can find locations of DS200DCFBG1BLC's jumpers in figure 1 in the manual and you can find descriptions of the jumpers on DS200DCFBG1BLC in table 1 of the manual - Manual GEI-100028. For a copy of the manual, request DS200DCFBG1BLC's manual.
What is stab P1A on a GE DS200DCFBG1BLC board?
Stab P1A on DS200DCFBG1BLC, one of DS200DCFBG1BLC's stab terminal connectors, is DS200DCFBG1BLC's connector for DC bridge positive voltage.

Reviews For DS200DCFBG1BLC

Internal Review
(5.0)

This board includes a relay (K2) that acts as a pilot relay for the MD contactor. The coil is driven by the SDCC/LDCC board via IPL-34, IPL-35 and IPL-36. JP2 (jumper 2) will decrease the AC contactor drop-out time for this relay from its normal operation (about 100 ms of delay) down to a minimum delay state. Before making a final purchase decision on this DS200DCFBG1BLC PCB, you must know that it is edited through three revisions. - AX Control Lead Technician
