The DS200DCFBG1BKC is a Power Supply Board manufactured by GE Industrial Control Systems compatible with DC2000, AC2000, FS2000, CB2000, and ME2000 drive series.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a DS200DCFBG1BKC to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200DCFBG1BKC
  • SKU: DS200DCFBG1BKCGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200DCFBG1BKC Technical Specifications

Original Manufacturer GE General Electric
Product Series Mark V
Functional Part Number DS200DCFBG1BKC
Functional Description Power Supply Board
Instruction Manual GEI-100028
Functional Abbreviation DCFB
PCB Coating Type Normal Coating
1st Functional Revision B
2nd Functional Revision K
Artwork Revision C

About the DS200DCFBG1BKC

The General Electric DS200DCFBG1BKC is a Mark V series power supply board. When installed in a drive, this board provides electricity to the enclosure fan as well as the system’s control level power. Of GE’s drive systems, this board is compatible with the DC2000, AC2000, FC2000, CB2000, and ME2000 series of drives. The Mark V Turbine Control System Series that this DS200DCFBG1BKC Power Supply Board belongs to has specific applications in the control and management systems of compatible steam, gas, and wind turbine automated drive assemblies, and is considered a General Electric legacy series as its manufacture has been discontinued in the many years following its initial release. This DS200DCFBG1BKC printed circuit board or PCB for short's Mark V Series is also considered to be one of the final General Electric product series to make use of the company's patented Speedtronic style of control system technology. This DS200DCFBG1BKC PCB, while definable as a Power Supply Board in its own right, is not the originally-developed product of this functionality to feature within the Mark V; this would be the DS200DCFBG1 parent Power Supply Board missing all three of this DS200DCFBG1BKC product's significant product revisions.

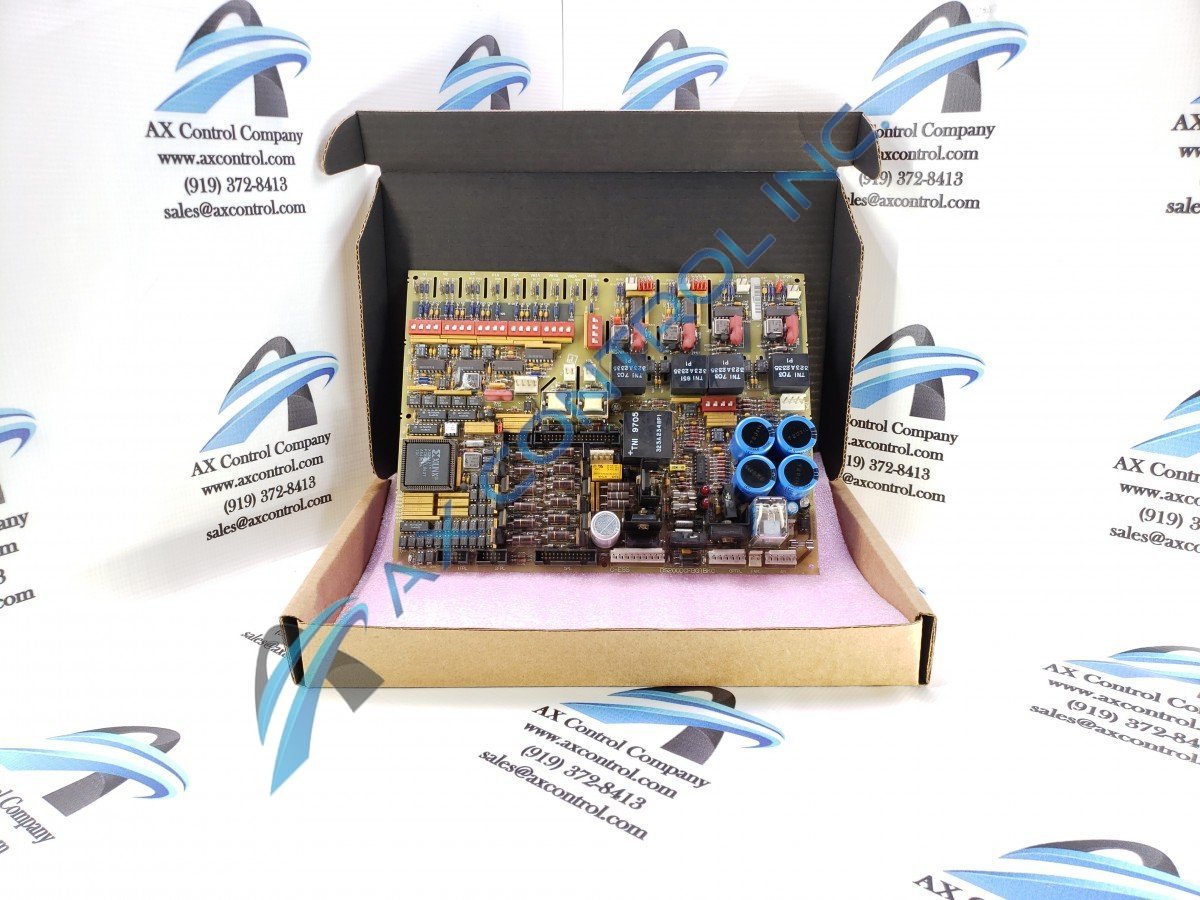

Hardware Tips and Specifications

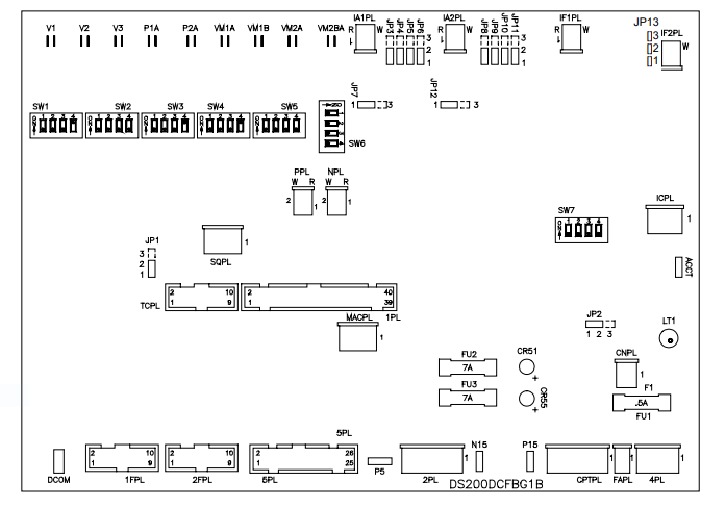

This DS200DCFBG1BKC printed circuit board, as with any product offering in the Mark V Series, differentiates itself from different Mark V Series PCBs through the insertion of various functionality-introducing hardware components and components specifications in its normal Mark V Series assembly. Nominally rated sourced inputs to the DS200DCFBG1BKC board can safely measure between 38 and 115VAC. Outputted frequencies generated by the card can measure anywhere from 0 and 500 kHz, depending on the inputted voltages. Five individual circuitries are found on DS200DCFBG1BKC. These include a control level supply circuit, a driver circuit, a motor field power circuit, and both an AC and DC monitoring circuit. Diagnostic information for the fuses on the drive is presented to the user via the two LED indicators and the one neon indicator. Three protective fuses are integrated into the board, protecting the currents from interruptions. Checking voltage levels in the board is simple when using one of the five test points found on the card. Users are provided a number of configurable settings to adjust to job specific needs. Twelve jumpers and seven DIP switches on the board can be configured to fit user requirements.

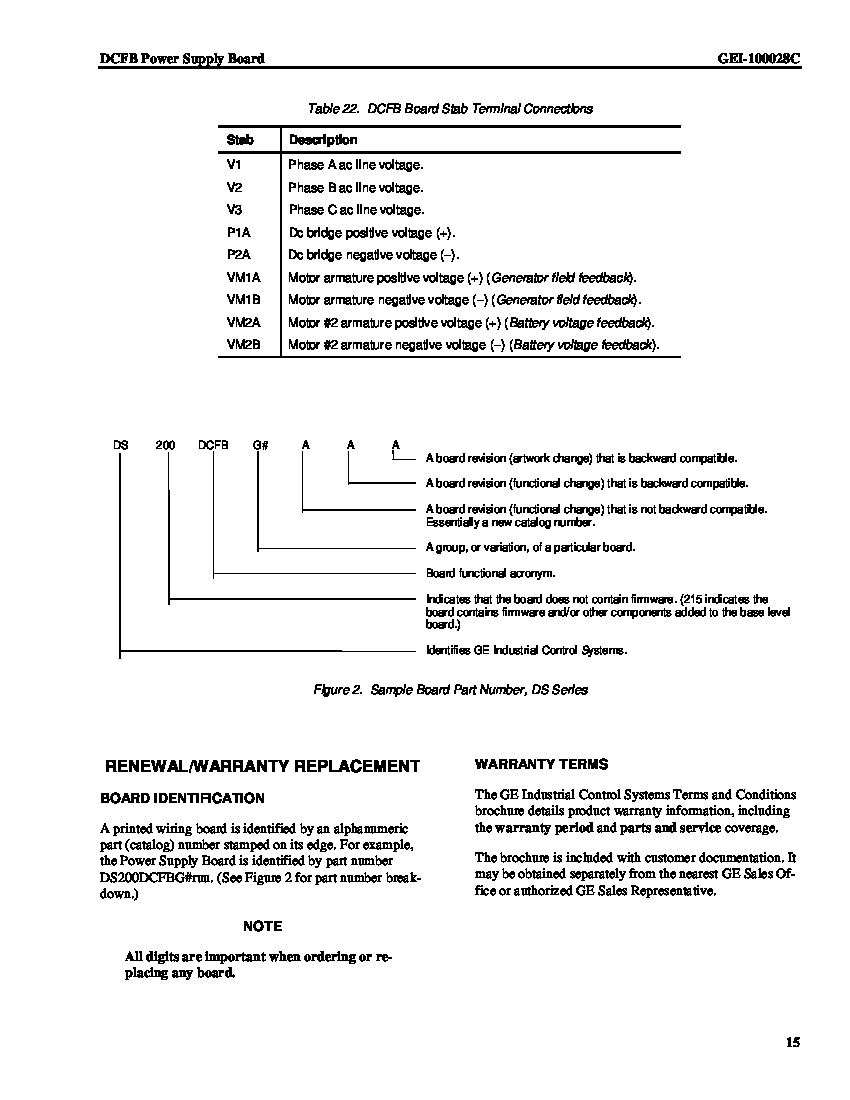

Boards and drives contain installation parameters outlined by General Electric that should be followed. These guidelines will protect the entire unit from any accidental damages. Please reference the device’s datasheet and manual for a complete guide to wiring and installing the board. Generally, it is crucial to remove all power to the DS200DCFBG1BKC printed circuit board and its greater Mark V Turbine Control System Series automated drive assembly before attempting an installation or replacement of the DS200DCFBG1BKC board. This particular installation parameter is crucial to recognize given the fact that potentially-lethal surface voltages may exists on the base circuit board of this DS200DCFBG1BKC product offering, even minutes after a power-off of its greater Mark V Series drive. Before making any final purchase decision, it is absolutely of the highest importance to consider this DS200DCFBG1BKC Power Supply Board's full revision history, which includes a B-rated functional product revision, a K-rated secondary functional product revision, and a C-rated artwork configuration product revision. All of these revisions may alter the originally-introduced performance specifications and basic dimensions of this DS200DCFBG1BKC product greatly. Members of the Mark V series were provided technical support by their original manufacturer, General Electric. AX Control’s experienced and knowledgeable sales team is happy to help with all of your automation needs. For prices and availabilities on DS200DCFBG1BKC and other parts and repairs, please contact a member of our staff by email or phone.

Frequently Asked Questions about DS200DCFBG1BKC

Where can I find information on DS200DCFBG1BKC's application data?

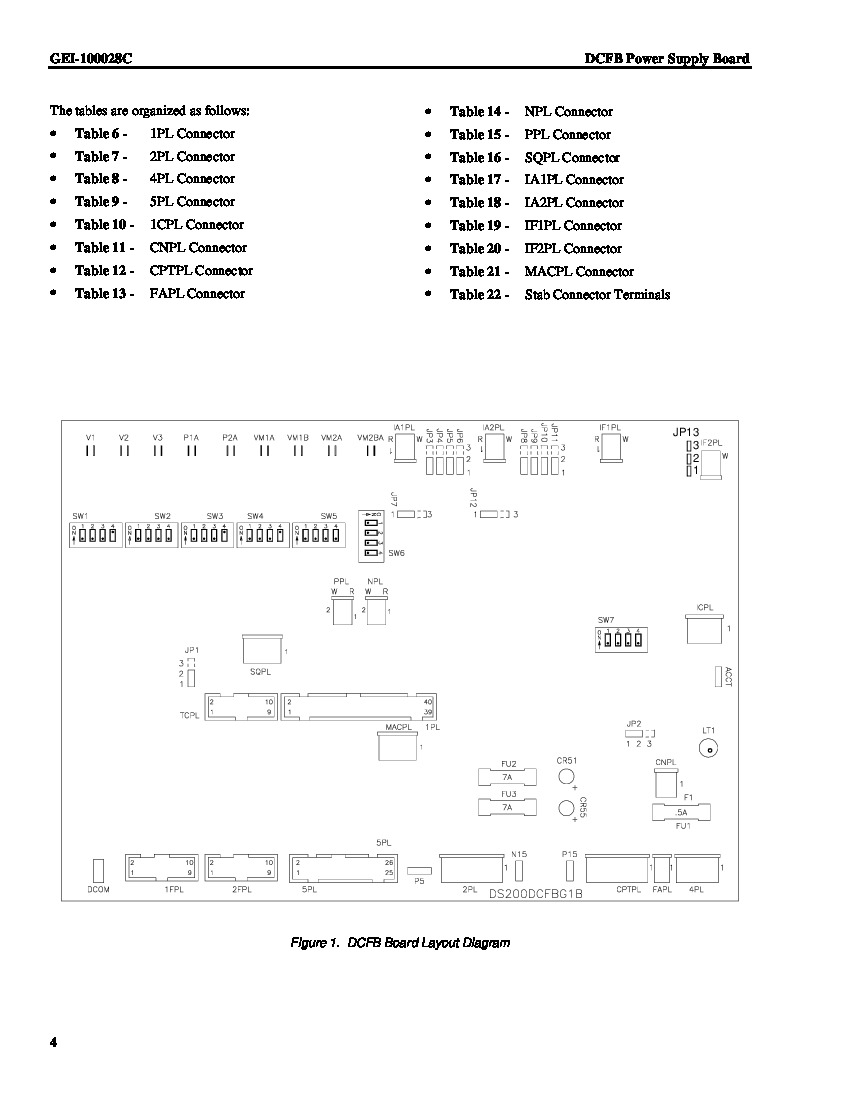

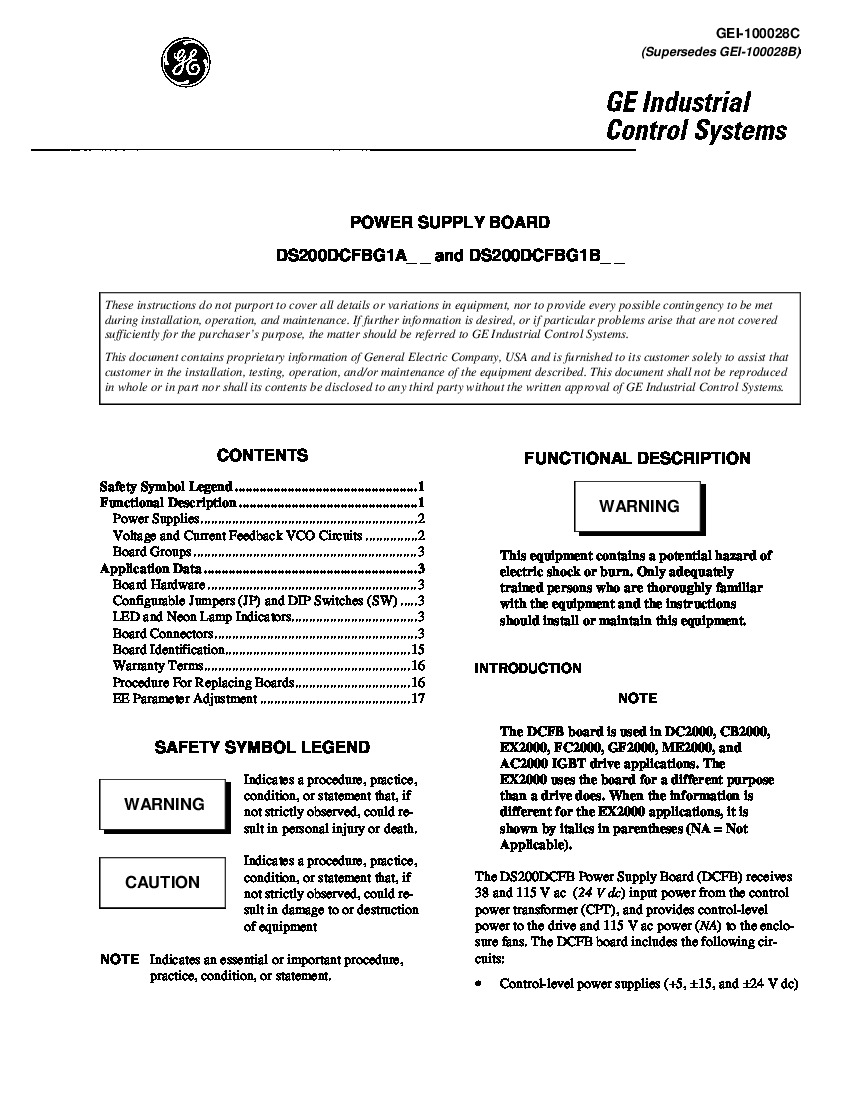

There is a chapter in the manual for DS200DCFBG1BKC, Manual GEI-100028, on Application Data. This chapter in the manual for DS200DCFBG1BKC includes information on: DS200DCFBG1BKC hardware, configurable jumpers and DIP switches, LED and neon lamp indicators on DS200DCFBG1BKC, DS200DCFBG1BKC connectors, DS200DCFBG1BKC identification, warranty terms for DS200DCFBG1BKC, procedure for replacing DS200DCFBG1BKC boards, and EE parameter adjustment for DS200DCFBG1BKC. For a copy of this manual, the GE Industrial Control Systems Power Supply Board Manual, request Manual GEI-100028.
What are the voltages of the control-level power supplies on DS200DCFBG1BKC?
The control-level power supply circuits on DS200DCFBG1BKC have voltages of +5, +/-15, and +/-24 VDC.
What are the power supply outputs protected against on DS200DCFBG1BKC?
The power supply outlets on DS200DCFBG1BKC are protected against short circuit fuses F2 and FU3.
Which manual is used with DS200DCFBG1BKC?
The manual used with DS200DCFBG1BKC is Manual GEI-100028- the GE Industrial Control Systems Power Supply Board Manual. The manual is specific to DS200DCFBG1BKC and the manual provides specific information about the installation, operation, and maintenance of DS200DCFBG1BKC, but GE notes that every possible aspect on installation, operation, and maintenance of DS200DCFBG1BKC is not included in the manual and that you should contact either GE Industrial Systems or our experts at AX Control for more installation, operation, and maintenance with DS200DCFBG1BKC.

Reviews For DS200DCFBG1BKC

Internal Review
(5.0)

In terms of a low failure rate and a long life cycle the BKC revision of the DS200DCFBG1B is extremely reliable. While the technicians at AX Control are more than capable of repairing the DS200DCFBG1BKC, generally these PCBs will continue to function without issue while other boards in the drive need to be replaced or repaired. With that being said, this DS200DCFBG1BKC PCB is available for repair or replacement here. - AX Control Lead Technician
