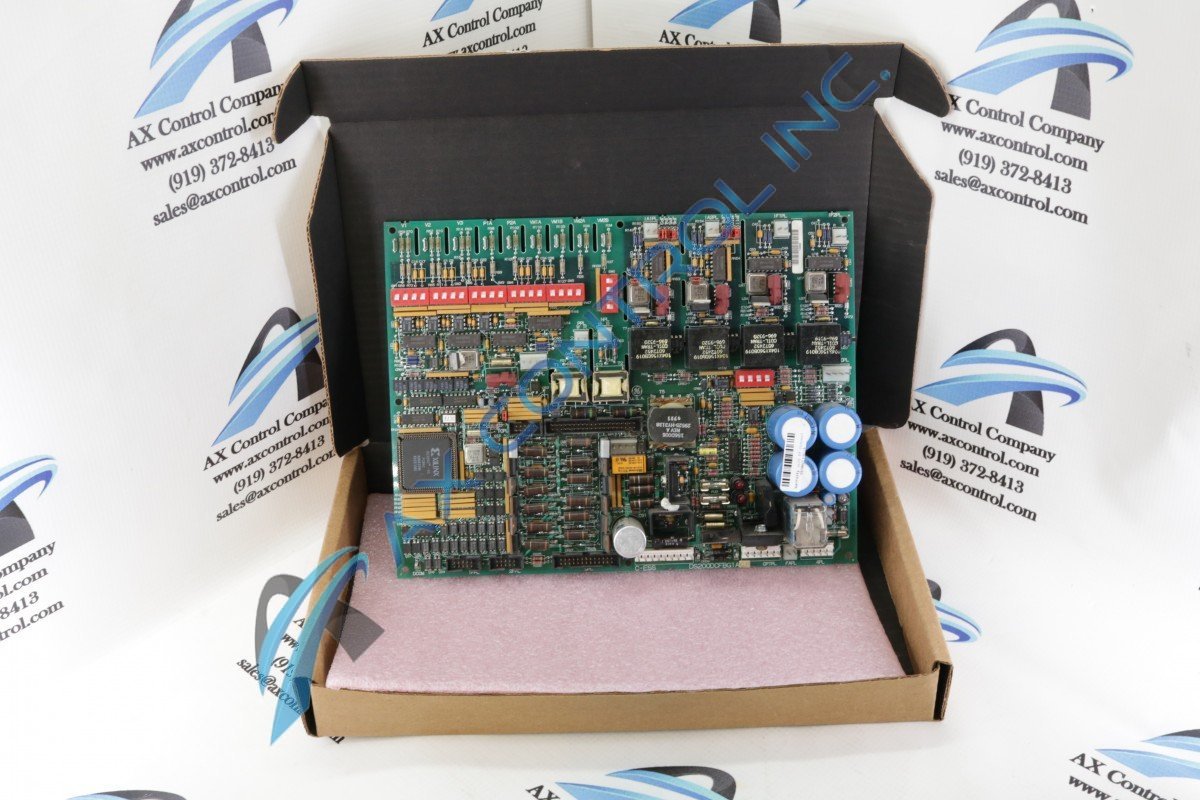

The GE Mark V DS200DCFBG1AGB is a power supply board manufactured for the Mark V Speedtronic series by GE.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a DS200DCFBG1AGB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200DCFBG1AGB
  • SKU: DS200DCFBG1AGBGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200DCFBG1AGB Technical Specifications

OEM General Electric
Series Mark V Speedtronic
Product Number DS200DCFBG1AGB
Functional Acronym DCFB
Revision Quantity 3 Revisions
Mark V Series Grouping Group 1
Assembly Type Normal Assembly

About the DS200DCFBG1AGB

The DS200DCFBG1AGB from General Electric is a PCB (printed circuit board) designed to be used within the Mark V Speedtronic series as a Power Supply Board. This board can be used within drive applications like AC2000, DC2000, EX2000,  CB2000, ME2000, and FC2000. Most of these applications are similar to one another but EX2000 applications sometimes vary from the others. This DS200DCFBG1AGB Power Supply Board's greater Mark V Series has specific applications in the control and management systems of wind, steam, and gas turbine automated drive assemblies, and is considered a General Electric legacy series given its eventual discontinuation by the original retailer. This DS200DCFBG1AGB product offering's Mark V Turbine Control System Series also exists as one of the final General Electric Mark product series to make use of the retailer's patented Speedtronic control system technology. While this DS200DCFBG1AGB printed circuit board is definable as a Power Supply Board in its own right, it is not the originally-developed product of this functionality to exist within the Mark V; that would be the DS200DCFBG1 parent Power Supply Board missing this DS200DCFBG1AGB product's full three-fold revision history.

Hardware Tips and Specifications

This DS200DCFBG1AGB PCB, like any other printed circuit board product offering in General Electric's Mark V Turbine Control System Series, is offered alongside its own particular set of hardware component inclusions and specifications.  The DS200DCFBG1AGB board is designed with driver, motor field power, AC/DC monitoring, and control level supply circuits, as described in detail in the original Mark V Series instructional documentation inserted in the manuals tab above. The DS200DCFBG1AGB board can be configured to user settings using the DIP switches and twelve jumper switches located on the board’s surface. The board also includes a neon light indicator and two LED indicators along with nine stab connectors and 18 plug connectors. The board also has five test points that are used to check voltage signals. Other DS200DCFBG1AGB board components include current transformers, contactor drive circuit run by relays, and a serial PROM connected to the field/armature SCR circuit. The DS200DCFBG1AGB is designed to receive 38 VAC power as full-wave rectified power that is filtered to then produce unregulated +/- unregulated 24 VDC outputs.

Twelve total jumpers are available to the assembly of this DS200DCFBG1AGB printed circuit board for customization purposes, although most of their selections are hard-wired and factory-set. These jumpers are not the only customizable piece of hardware available to the assembly of this DS200DCFBG1AGB PCB, as it also makes use of several DIP switches; which all exist specifically for the selection of this DS200DCFBG1AGB product's various ac line voltages. Please read through GE manuals or data sheets for information regarding proper handling of this board during installation. The DS200DCFBG1AGB board has potentially lethal voltages present when powered, and has been altered from its originally-introduced performance specifications and dimensions through the existence of its A-rated primary functional revision, G-rated secondary functional revision, and B-rated artwork configuration revision. AX Control typically ships in-stock products the same day your order is received. We ship Monday through Friday. If you have any special shipping needs, let our staff know. Circuit boards like the DS200DCFBG1AGB are shipped with an anti-static wrap to protect them from incidental static buildup during shipping.

Frequently Asked Questions about DS200DCFBG1AGB

Are this DS200DCFBG1AGB Power Supply Board's three significant product revisions all backwards-compatible?

No. Only this DS200DCFBG1AGB product offering's first two revisions are backwards-compatible, as they both exist as functional styles of product revision.

Does the assembly of this DS200DCFBG1AGB PCB make use of any factory-drilled installation holes?

Yes. This DS200DCFBG1AGB PCB's base circuit board has been factory-drilled in several locations to allow for easy and safe DS200DCFBG1AGB board installation; each of these factory-drilled holes has been ringed with an insulated material.

Reviews For DS200DCFBG1AGB

Internal Review
(5.0)

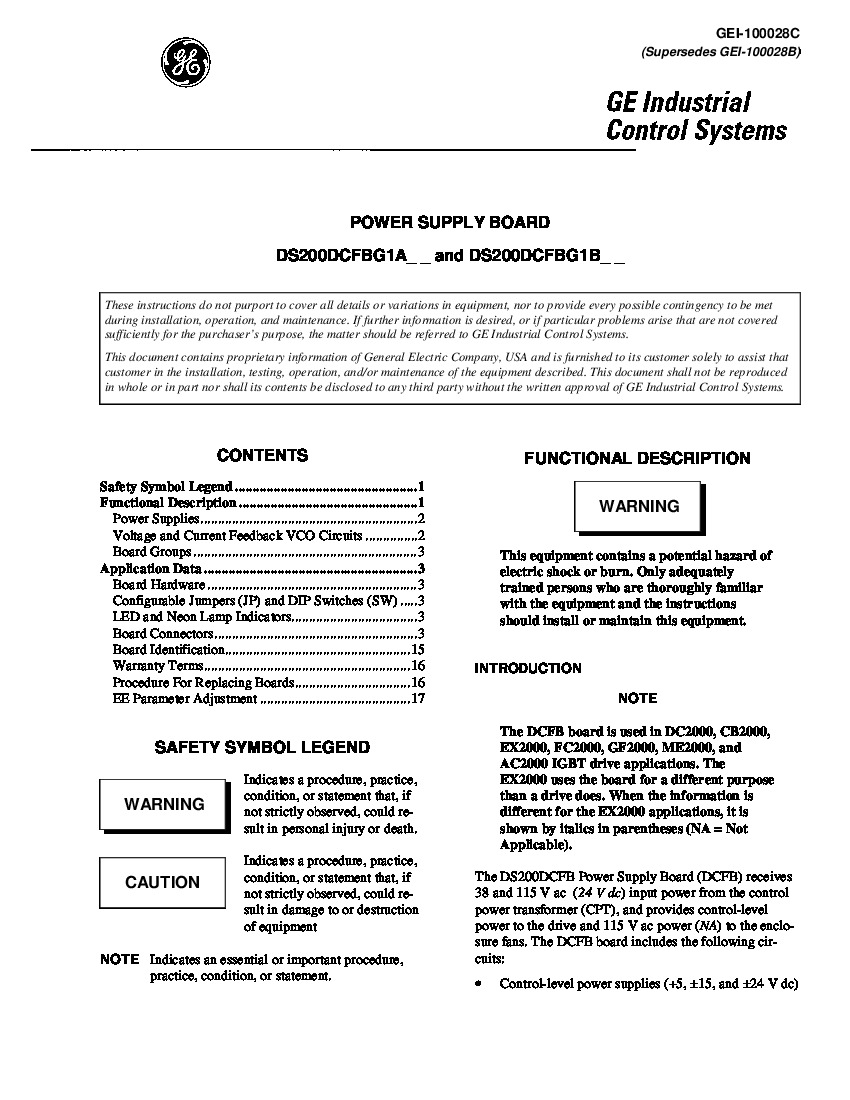

This board is built with seven switches on board. The switches are used to control ac and dc applied voltages and line currents. Read through associated information about these switches available in GE manual GEI-100028C, which may be hard to locate given this DS200DCFBG1AGB product's status as a legacy series member. This DS200DCFBG1AGB PCB is additionally altered from its original functional status through its three product revisions. - AX Control Lead Technician
