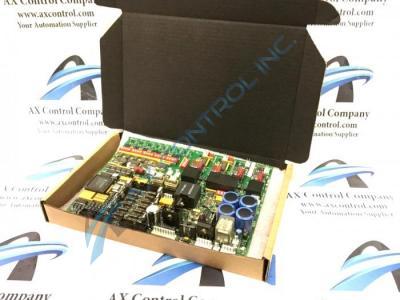

The DS200DCFBG1AAA DC Power Feedback Board was manufactured by General Electric for use in the Mark V Series of turbine control systems.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a DS200DCFBG1AAA to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200DCFBG1AAA
  • SKU: DS200DCFBG1AAAGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200DCFBG1AAA Technical Specifications

Original Manufacturer GE General Electric
Product Series Mark V
Functional Part Number DS200DCFBG1AAA
Functional Description DC Power Feedback Board
Instruction Manual GEI-100028
Functional Product Acronym DCFB
PCB Coating Style Normal Coating
1st Functional Revision A
2nd Functional Revision A
Artwork Revision A

About the DS200DCFBG1AAA

General Electric’s DS200DCFBG1AAA is a power supply board developed for the Mark V board series. The Mark V Turbine Control System Series that this DS200DCFBG1AAA product offering belongs to, as indicated by its full name, has specific applications in the management and control systems of wind, steam, and gas turbine automated drive assemblies, and is considered to exist as a legacy General Electric Mark Series given its eventual manufacturing discontinuation in the years following its initial release. While this DS200DCFBG1AAA product offering's greater Mark V Turbine Control System Series is classifiable as a General Electric legacy series, it is also attributed to be one of the final General Electric product series to feature their patented Speedtronic control system technology. This DS200DCFBG1AAA printed circuit board product offering, while certainly definable as a Power Supply Board in its own right, is more explicitly defined as an edited version of the original DS200DCFBG1 parent printed circuit board, which notable does not make use of this DS200DCFBG1AAA PCB's three A-rated significant product revisions.

Hardware Tips and Specifications

Supplies from this board provide control level power to the unit as well as to the enclosure fan. Drives from the AC2000, CB2000, DC2000, FC2000, and ME2000 can use this board. Members of the EX2000 series can also use this board, but this series interacts differently with the board than drives do. This power supply card sources inputs from the control power transformer rated between 38 and 115 VAC. Depending upon inputted voltages, frequencies for the board can range from 0 to 500 kHz. A number of onboard features allow DS200DCFBG1AAA to provide exceptional user experiences. Circuits found on the board include AC/DC monitoring, driver, motor field power, and control level supply circuits. Configurable system options can be set using the twelve jumpers and seven DIP switches found on board. Two LED status indicators and one neon indicator is featured on the board. Diagnostics regarding various fuse switches on the board are displayed using these indicators. Checking voltage levels on the board is simple using one of the five integrated test points. Protecting the power supply from interruptions is built into the three protective fuses found on the card. These fuses are not the only available piece of voltage-suppressing hardware in this DS200DCFBG1AAA PCB, as it possesses many voltage-limiting hardware components typical of the Mark V Series. These components include various diodes, capacitors, and resistors, as well as the aforementioned integrated circuits in this DS200DCFBG1AAA board's assembly.

The board as well as the drive include installation and storage parameters that must be followed to ensure both operate properly. DS200DCFBG1AAA’s manual and datasheet include complete installation and wiring guidelines for the board. Generally, this DS200DCFBG1AAA PCB should be treated as a static-sensitive printed circuit board that may possess potentially-lethal circuit board surface voltages even after power has been deactivated in its larger Mark V Series automated drive assembly. As indicated by this DS200DCFBG1AAA printed circuit board product offering's original instructional manual, this DS200DCFBG1AAA PCB typically mounts in the Mark V Series drive carrier behind the Mark V Series drive control card. This drive control card typically manifests itself in the form of the Mark V Series' SDCC Drive Control Card, another GE product available in our inventory of new and refurbished Mark V Series circuit boards. General Electric, the manufacturer, was the original provider of technical support for this board. Before making any singular final purchase decision on this DS200DCFBG1AAA product offering, its is important to understand that its originally-introduced dimensions and basic performance specifications have no doubt been altered through its possession of three A-rated product revisions; including two functional product revisions and an artwork configuration revision specifically. Our trusted and friendly sales staff at AX Control is ready to help with all of your DS200DCFBG1AAA and automation needs. Please contact our office by phone or email to receive current prices on all parts and repairs.

Frequently Asked Questions about DS200DCFBG1AAA

What's in the manual for DS200DCFBG1AAA?
In the manual for DS200DCFBG1AAA, Manual GEI-100028, you will find manual contents on safety symbol legend, functional description of DS200DCFBG1AAA, and application data. This manual is the GE Industrial Control Systems Power Supply Board Manual and is specific to DS200DCFBG1AAA. Within the manuals contents, the functional description of DS200DCFBG1AAA includes DS200DCFBG1AAA power supplies, voltage and current feedback VCO circuits, and board groups. In the application data section of the DS200DCFBG1AAA manual, you'll find information on DS200DCFBG1AAA hardware, configurable jumpers and DIP switches on DS200DCFBG1AAA, LED and neon lamp indicators on DS200DCFBG1AAA, DS200DCFBG1AAA connectors, DS200DCFBG1AAA identification, warranty terms for DS200DCFBG1AAA, procedure for replacing DS200DCFBG1AAA boards, and EE Parameter Adjustment for DS200DCFBG1AAA. For a copy of the manual, send us a request for Manual GEI-100028
What are some of the AC line and DC motor signals DS200DCFBG1AAA's circuits monitor?
DS200DCFBG1AAA has circuits that monitor several AC line and DC motor signals. Some signals DS200DCFBG1AAA's circuits monitor are: armature current and voltage, motor field currents, AC line current, and AC line voltage magnitude and phase sequence.
How much power does DS200DCFBG1AAA receive from the control power transformer?
DS200DCFBG1AAA receives 38 VAC from the CPT. This voltage received by DS200DCFBG1AAA is full-wave rectified and filtered to produce the unregulated +/-24 VDC outputs.
What do the amplifier circuits on DS200DCFBG1AAA do?
DS200DCFBG1AAA has amplifier circuits that process the AC line-to-line voltages.

Reviews For DS200DCFBG1AAA

Internal Review
(5.0)

The DCFB board receives 24 VDC power from the CPT. This is full-wave rectified and filtered. The DS200DCFBG1AAA board includes three protective fuses that include indicator lights to let you know when any of the three have been blown. As mentioned before, this DS200DCFBG1AAA PCB's three A-rated product revisions are not identical as they seem, as two styles of revision exist in this DS200DCFBG1AAA Board's assembly. - AX Control Lead Technician
