DS200DACAG1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.94 (16)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.94 (16)
  • Click a star to rate this product

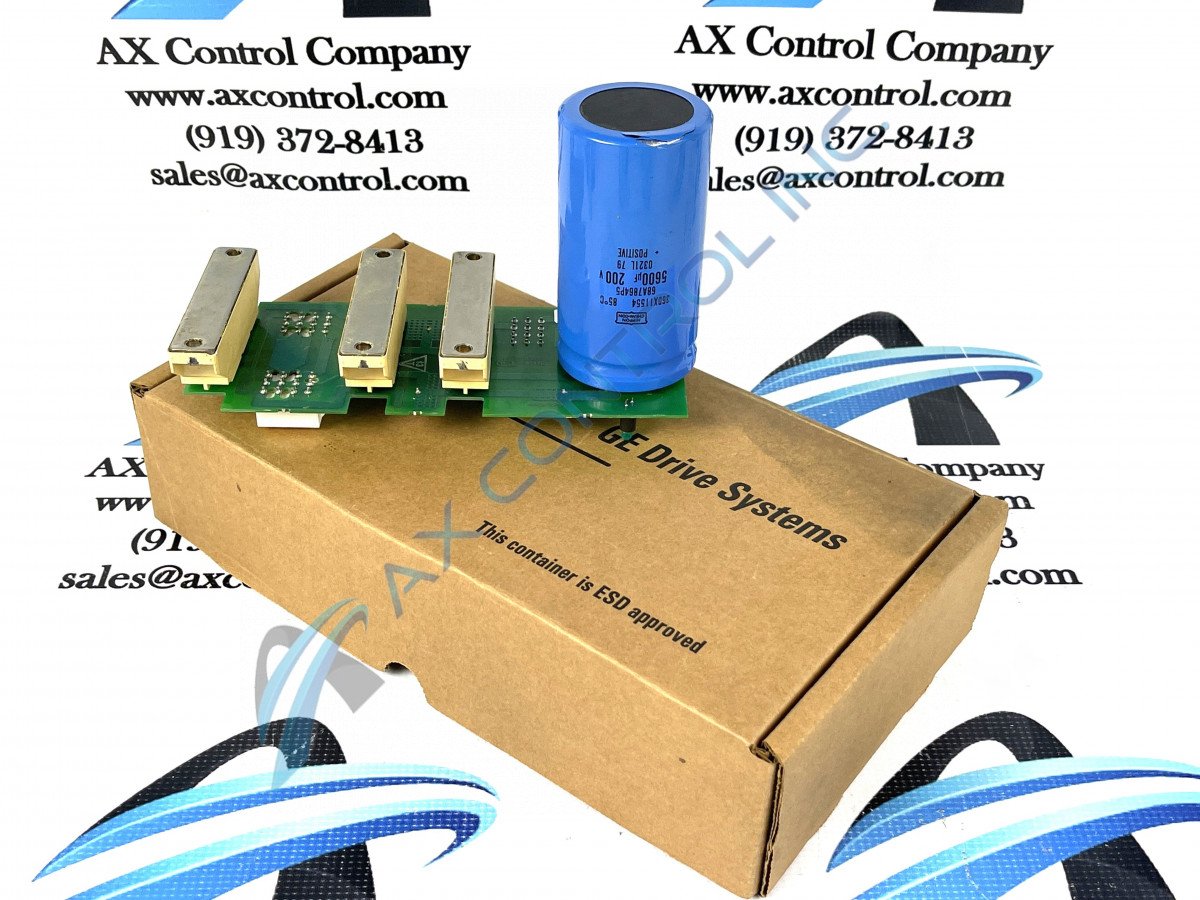

The DS200DACAG1A is a TC2000 AC/DC Converter Board used as part of the GE Mark VI Turbine Control System.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200DACAG1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200DACAG1A
  • SKU: DS200DACAG1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200DACAG1A Technical Specifications

Original Manufacturer GE General Electric
Product Series Mark V, TC2000, DC2000
Part Number DS200DACAG1A
Functional Description TC2000 AC/DC Converter Board
Functional Abbreviation DACA
PCB Coating Normal-Style Coating
1st Functional Revision A

About the DS200DACAG1A

The DS200DACAG1A is a Mark V, TC2000, DC2000 AC to DC Converter Board manufactured by GE (General Electric) as part of their turbine control systems. The DS200DACAG1A is designed as a component for the GE EX2100 Excitation Control Module. This module provides field excitation current for generators (gas/steam/hydro) as a way to control their AC terminal voltage and reactive volt-amperes. The EX2100 DS200DACAG1A TC2000 AC/DC Converter Board's modular design makes it easy to create a system that works for the user, whether they need to draw from a compound, potential, or auxiliary source, or need simplex or redundant controls. The DS200DACAG1A board is no longer manufactured by GE but can be purchased through AX Control as a refurbished/reconditioned unit or as a liquidated never-used part.

Hardware Tips and Specifications

The DS200DACAG1A is used primarily as an AC/DC converter.  It is powered by a 115 V AC source that is then converted by the circuit board’s components to produce a 125 V DC output.  The board and its corresponding battery source can also provide a redundant VDC supply for the EPDM power board.  If redundancy is needed, two DACA boards can be hooked up to one EPDM. Unfortunately for our purposes, the previous information concerning this DS200DACAG1A TC200 AC/DC Converter product is the sole information derivable from original Mark V, EX2000, or TC2000 Series instructional manuals detailing the product. With this in mind, most of the following product-specific information will be reminiscent of a visual inspection of the product, paired with a breakdown of the functional DS200DACAG1A General Electric product number.

The DS200DACAG1A product number assigned to this Mark V Series PCB from General Electric begins with the dually-functional DS200 series tag. This series tag is important as it outlines the DS200DACAG1A TC2000 AC/DC Converter Board's status as a normal assembly printed circuit board that has been manufactured domestically in General Electric's Salem, Virginia factory location. This is followed in the DS200DACAG1A product number by an instance of the DACA functional abbreviation that represents the lengthy DS200DACAG1A product number. This itself is followed too in the DS200DACAG1A number, by the additional dual-functional G1 series grouping tag. This Mark V series grouping tag informs the DS200DACAG1A PCB owner of this device's normal style of PCB protective coating, as well as its allegiance to the first group of Mark V Series products. The final alphanumeric digit in the DS200DACAG1A functional product number informs of this printed circuit board's singular, A-rated functional product revision.

Frequently Asked Questions about DS200DACAG1A

What type of revision does this DS200DACAG1A TC2000 AC/DC Converter Board have?

This DS200DACAG1A TC2000 AC/DC Converter Board has a functional product revision, which elevates the standard performance specifications of this device without making any sacrifices for durability or aesthetic purposes.

What does this DS200DACAG1A PCB's normal style of PCB coating entail?

As stated before this DS200DACAG1A PCB has protection offered by a normal style of PCB coating; a thick rudimentary layer of base protection that should cover every surface of every hardware element in this Mark V Series product.

Reviews For DS200DACAG1A

Internal Review
(5.0)

The DS200DACAG1A has a few revisions of board, the most common being the DS200DACAG1ACD. This model of AC/DC Converter Board is not an intricate board and has very few components, resulting in a highly reliable PCB with a low failure rate. If this DS200DACAG1A board requires replacement, it generally simply requires a few connectors being fixed to the board for it to be properly installed in the fixture. - AX Control Lead Technician
