The DS200ACNAG1ACC Arcnet Connection Card was manufactured by General Electric for the Mark V Control System Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS200ACNAG1ACC to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS200ACNAG1ACC
  • SKU: DS200ACNAG1ACCGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark V DS200

DS200ACNAG1ACC Technical Specifications

Manufacturer GE General Electric
Series Mark V
Part Number DS200ACNAG1ACC
Functional Description ARCNET Connection Card
Functional Acronym ACNA
PCB Coating Normal Coating
Functional Revision 1 A
Functional Revision 2 C
Artwork Revision C

About the DS200ACNAG1ACC

The DS200ACNAG1ACC is a GE Mark V component that functions as an Attached Resource Computer Network Card,  or ARCNET. The Mark V is a gas/steam turbine management system developed by GE in the 1990s as part of their successful Speedtronic line.  While Speedtronic systems have been managing heavy-duty turbines since the 1960s, significant advancements in technology allowed the MKV to have features like on-line repair of its triple-redundant controllers, full turbine-generator monitoring, digital valve positioning, and enhanced diagnostics that help technicians isolate a fault to the card level. The Mark V Series is one of the final General Electric product series offered, although it also exists as a now-obsolete legacy product series due to its eventual manufacturing discontinuation that took place in the numerous years following its release. This DS200ACNAG1ACC product offering is not the originally-developed PCB of its specific Mark V Series functionality; that would be the DS200ACNAG1 parent printed circuit board missing all three of this DS200ACNAG1ACC device's three significant revisions.

Hardware Tips and Specifications

The DS200ACNAG1ACC facilitates ARCNET LAN communications within the larger system.  The board is placed to accept signals from the main processor board (LDCC) and pass them on to the turbine control operator interface, or vice-versa.  This system uses coaxial cables. The ACNA card is designed to accept two coaxial cables, with internal termination processes within this DS200ACNAG1ACC product's assembly being handled by said cables. It is also important to note the <Status> S data link connection to the turbine controller is made on this board. Given this DS200ACNAG1ACC product's initial legacy series product status, it should come as no surprise that it is not offered alongside any meaningful suppository of original instructional manual materials. With this being true, the DS200ACNAG1ACC functional product number itself can be considered a main source of DS200ACNAG1ACC Board hardware component and component specification information, detailing these facts in functional naming chunks. For example, the DS200ACNAG1ACC functional product number begins with the DS200 series tag delegating this DS200ACNAG1ACC PCB's normal Mark V Series assembly version as well as its domestic location of original General Electric manufacture. Some of the other relevant hardware details revealed through the DS200ACNAG1ACC functional product number include this device's:

  • ACNA functional product abbreviation
  • Normal PCB Protective Coating
  • Group one Mark V Series product grouping
  • A-rated primary functional revision
  • C-rated secondary functional revision
  • C-rated artwork configuration revision

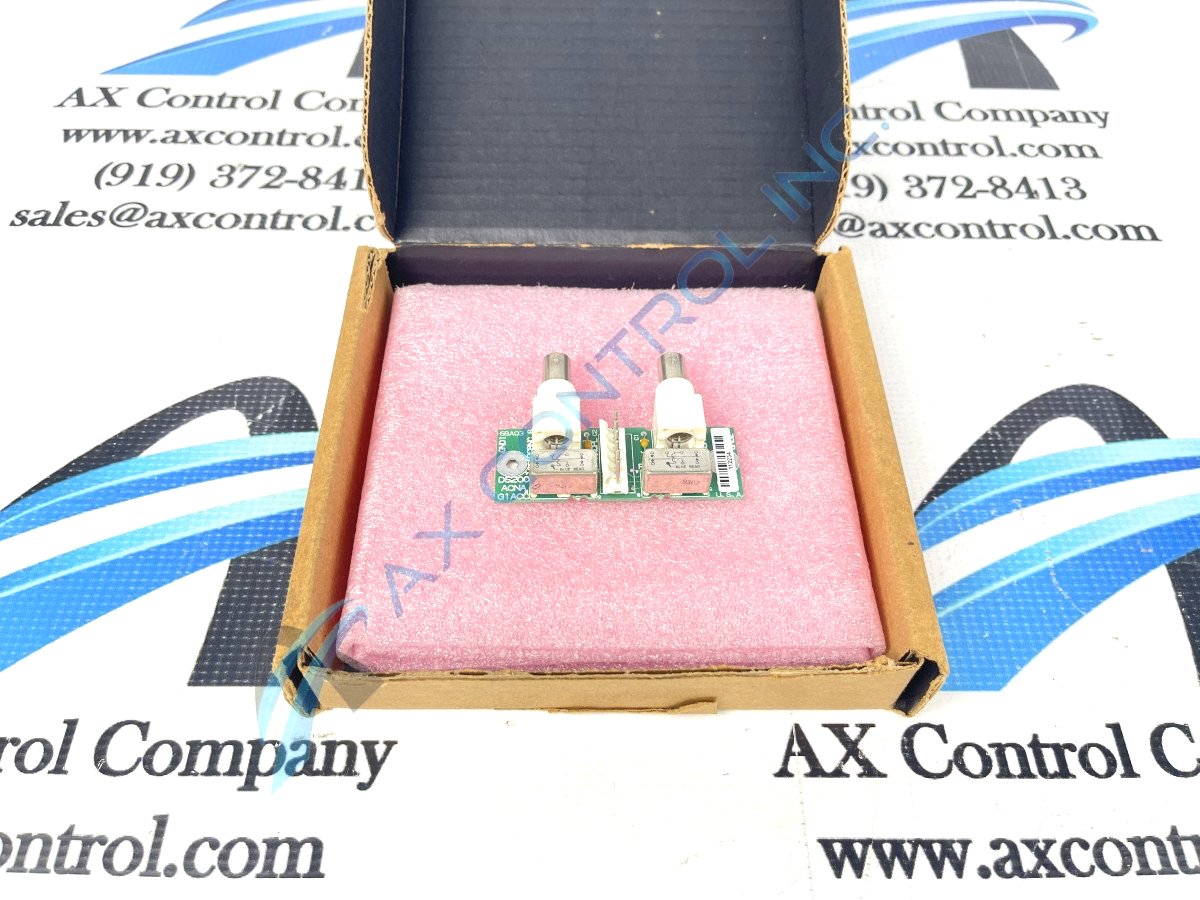

Very few components are located on the DS200ACNAG1ACC, as it is a small board. Board components include three capacitors that are marked as C1, C2 and C3, four resistors made of metal film marked R1, R2, R3 and R4, a single diode, and two relays.  Each relay has a printed relay diagram on one surface. The board also includes two factory-made openings that have metal rings inserted inside. These openings have been marked as GND1 and GND2. The DS200ACNAG1ACC  has two BNC plugs located along the top edge. These are right-angled female plugs and are designed to accept LAN coaxial cables. The board also has one vertical pin (6-pin) male terminal connector located in its center.

Frequently Asked Questions about DS200ACNAG1ACC

What are the connectors on DS200ACNAG1ACC?
DS200ACNAG1ACC has two BNC connectors. DS200ACNAG1ACC also has connectors: C1, C2, C3, D1, R1, and R2.
How many relays are on DS200ACNAG1ACC?
DS200ACNAG1ACC has two relays. The relays on DS200ACNAG1ACC are both 58614 relays.

Reviews For DS200ACNAG1ACC

Internal Review
(5.0)

This DS200ACNAG1ACC ARCNET Board is something of a simply-named Mark V Turbine Control System Series product; an attribution that may sell short its true significance to the greater now-obsolete General Electric legacy series. This DS200ACNAG1ACC PCB is well-supported for its functional role through its adoption of three product revisions, although only its first two A and C-rated product revisions can be considered backwards-compatible as they are both functional styles of Mark V Series product revision. - AX Control Lead Technician
