The DS3820TIMCRF Isolation Module

Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a DS3820TIMCRF to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: DS3820TIMCRF
SKU: GBTC-13107

Manufacturer: GE Boards & Turbine Control
Series: Mark IV DS3800

Description
Repairs
Warranty
Manuals

DS3820TIMCRF Technical Specifications

Manufacturer	General Electric
Series	Mark IV Speedtronic
Personal Functional Description	DS3820TIMCRF Isolation Module
DS3820TIMCRF Isolation Module Number	DS3820TIMCRF

About the DS3820TIMCRF

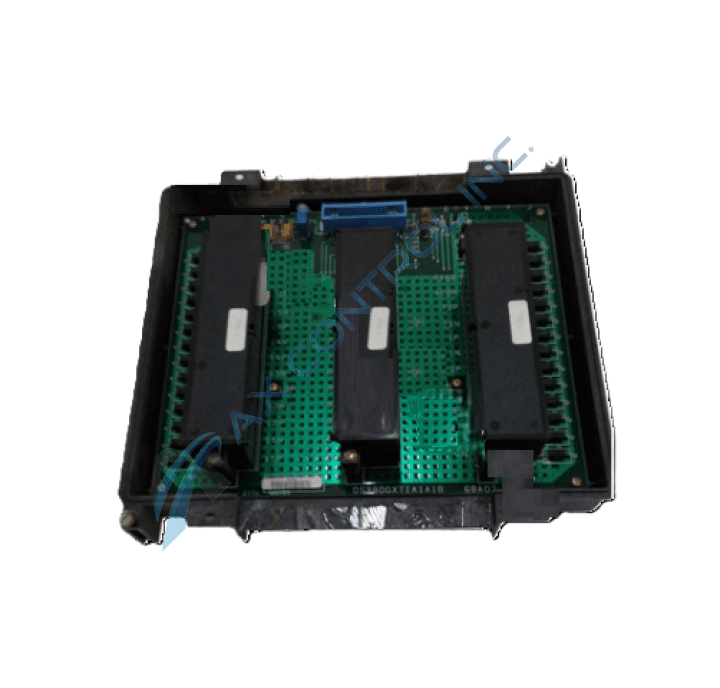

The DS3820TIMCRF is an Isolation Module. The module includes a circuit board component that has been mounted within a carrier. The circuit board is populated by three terminal strips mounted to the circuit board in parallel. Each of these terminal strips has a small barrier bar attached to the board to one side of the terminal strip. Other board components include:

jumper switches
a potentiometer
transistors
a stab-on connector
resistors
capacitors
diodes
a single vertical pin male connector

The circuit board is screw mounted to the carrier. The carrier portion of the DS3820TIMCRF has short right-angled walls that protect the edges of the circuit board. These walls are shorter in the center of the front and back of the carrier. At either side of this lower section, the carrier has two right-angled flanges attached to a right-angled extruding lip. More information about the DS3820TIMCRF may be found through data sheets, user guides, and manuals. GE was responsible for all original technical support for the DS3820TIMCRF, as well as all other Mark IV components.

Frequently Asked Questions about DS3820TIMCRF

How many revisions does this DS3820TIMCRF employ?

The DS3820TIMCRF Isolation Module here has two total revisions asserted in the DS3820TIMCRF number; at grades of R and F to be specific.

Was this DS3820TIMCRF Module manufactured domestically?

Yes. The bulk majority of early GE-made PCBs and modules within the Mark IV Series are all made in the U.S.A.

Reviews For DS3820TIMCRF

Internal Review

(5.0)

This DS3820TIMCRF Isolation Module is a simply-named GE Mark IV Series product offering that plays an important and specialized role in the greater Mark IV Series assembly. This DS3820TIMCRF device specifically is responsible for isolation processes of course, and its modular status is indicated by the start to the DS3820TIMCRF catalog number itself. Buy, Sell, Repair with confidence here. - AX Control Lead Technician

Repair Services For DS3820TIMCRF

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$316

Our highly skilled technicians can repair your DS3820TIMCRF. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.

All PLCs, HMIs, and Turbine Control Boards:	3 Years
All AC/DC and Servo Drives:	2 Years
