DS3815PABA1A1B

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The DS3815PABA1A1B is a printed circuit board from GE

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a DS3815PABA1A1B to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

The DS3815PABA1A1B is a smaller PCB (printed circuit board) created by GE for the Mark IV system.  The MKIV, which is for steam/gas turbine control, has interconnected microcomputers built with intentional redundant backups on all critical controls.   The MKIV is designed to control applications like startup, shutdown, control sequencing, temperature, power supply, and speed control. This system has an improved interface and decreased turbine outage rate compared to the MKI and MKII,  GE’s first Speedtronic systems.

The DS3815PABA1A1B is a daughter board for a larger PCB.  It communicates and connects to the larger board by way of a 278A4702P3B ribbon connector.  The board is factory-drilled in all corners to connect to the larger PCB.

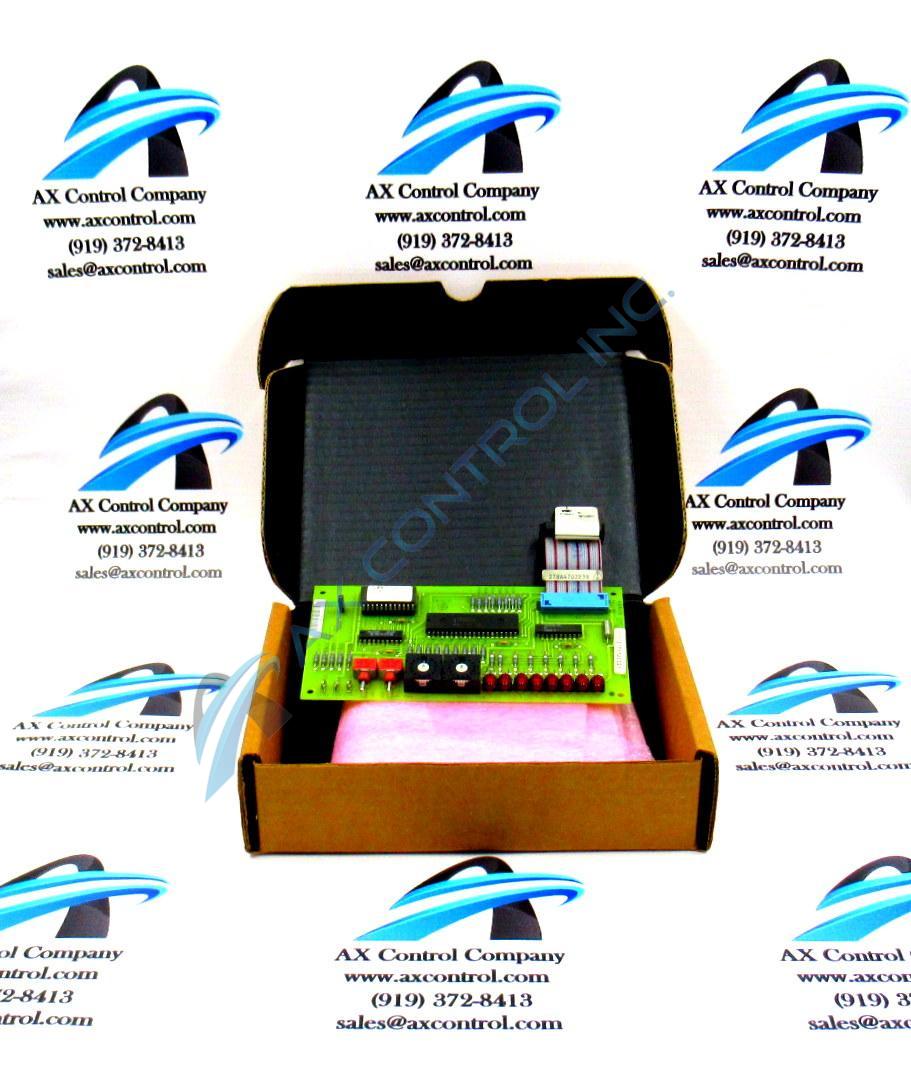

The DS3815PABA1A1B is built with three TP test points.  The test points are labeled SIM2, COM, and SIM1. These are located next to two toggle switches.  The first of these switches may be set to CONT or SS and the second to WR or LADR. The board also is populated with two thumbwheel switches (1A213034GF) that have ten legend locations.  These components have special rotor markings and stop pins to let the user create customized interfaces.

The DS3815PABA1A1B has eight LEDs (light emitting diodes.)  All are red. The LEDs are numbered from zero to seven.

The DS3815PABA1A1B is built with four circuits.  The code 9172 P0191 has been added to one circuit.  Octal buffers/line drivers are included among the other circuits.  The single jumper switch located on the board may be set to 2732 or to 2716.

GE provided all technical support for the DS3815PABA1A1B.  This included end-user publications like manuals or datasheets.

The team at AX Control is here to help keep your older Speedtronics system running.  Ask about details on our various programs (sales, service, exchange.)



Repair Services For DS3815PABA1A1B

Type Lead Time Price Action
Repair Service 1-2 weeks $442

Our highly skilled technicians can repair your DS3815PABA1A1B. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
