Product Description

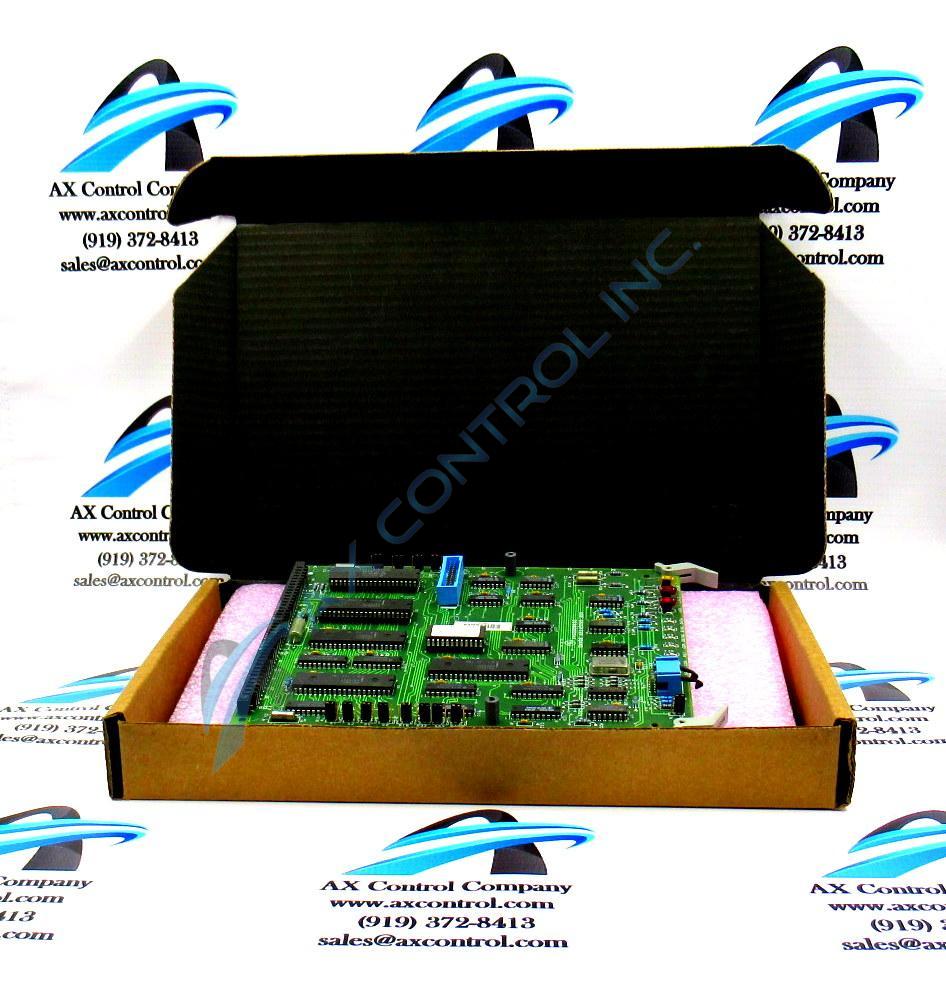

The DS3815PAAA1D1A is a PCB designed by GE for the Mark IV series.  This series was created for gas or steam turbine management and uses triple-redundant backups to carry out diagnostics.  If ever one section of these diagnostics fail, the turbine system continues to run under control of the remaining sections, giving the operator time to repair and put back into service the section with the issue.  With this two-out-of-three voting redundancy in place on critical controls, turbine outage rate on the Mark IV is dramatically lower than on previous Speedtronic systems.

The DS3815PAAA1D1A accepts the DS3815PABA as an optional daughterboard.  When this board is installed it gives the DS3815PAAA1D1A access to more components, including four switches and four circuits.  The two boards communicate via a ribbon cable which connects into a vertical pin male PCB mating connector located toward the center of  DS3815PAAA1D1A. Two other connectors are on the board, including one 218A4637P1 five-pin connector, and one 218A4553-1 A/mp connector.

The DS3815PAAA1D1A has one amber and two red light emitting diodes (LEDs.)  The board has seven test points, which are labeled “Data,” “Sync,” “Dsync,” “Com,” “Rst,” “Com,” and “Test.”  The board also has fourteen jumper switches. One jumper (J6) allows the operator to choose between IN or OUT.  Others allow the choice between zero and one.

The DS3815PAAA1D1A is built with twenty-five circuits.  This includes HMOS RAM and HMOS microprocessors with on-chip clock generator and system controller, octal buffers and line drivers, and oscillating chips.  It is worth noting one circuit has been updated with the code “68A9172P0191.”

GE was responsible for providing all manuals, datasheets and technical support for the DS3815PAAA1D1A.



Repair Services For DS3815PAAA1D1A

Type Lead Time Price Action
Repair Service 1-2 weeks $468

Our highly skilled technicians can repair your DS3815PAAA1D1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
