The DS3800NSCC1E1D is a printed circuit board by GE

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS3800NSCC1E1D to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800NSCC1E1D
  • SKU: DS3800NSCC1E1DGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

DS3800NSCC1E1D

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The DS3800NSCC1E1D is a printed circuit board by GE

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS3800NSCC1E1D to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800NSCC1E1D
  • SKU: DS3800NSCC1E1DGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

Product Description

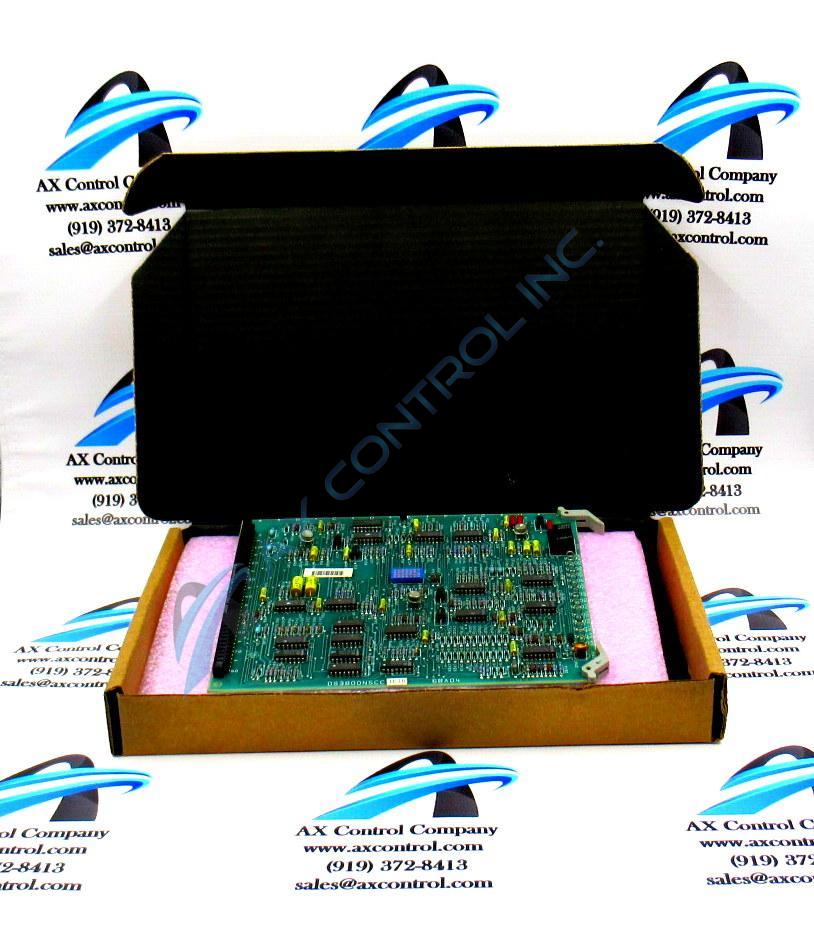

The DS3800NSCC1E1D was manufactured by GE as part of their Mark IV Speedtronic line.  This PCB functions as a Speed/current regulator card, and has the following specs and components:

  • It is built with three transistors. Transistors are located at multiple points across the board.

  • It has one light emitting diode.  This LED is labeled ‘Imok,’ and is amber in color.  It is placed along the right edge.

  • It is built with fourteen (TP) test points.  Each test point is labeled. From top to bottom, the labels are ACOM, FCL, SRA, TSTN, SP, TSTT, OUT, RCL, FC1, TSTC, SUS, RLT, RLA, SUA.

  • It is built with one right-angled male connector on its right edge.  This connector is marked 218A4637P1.

  • It is built with one right-angled PCB mating connector on its left edge.  This connector is marked 218A4553-1 A/mp 533002-1. The board is marked by tens directly behind this connector (ten through eighty.)

  • It is marked 6BA06.

  • It has one Augat connector.  This is 28-pin female connector.

  • It has extractor clips (nylon) installed.  These clips aid in both extraction and installation by giving technicians both a handle the boards with and a lever point to pull the boards out with.

  • It is built with capacitors made of polyester film and ceramic.

  • It has over twenty circuits, including 3-input NAND gates, quad differential comparators, and quad 2-input positive-nand gates.

All technical support for components of the Mark IV, including the DS3800NSCC1E1D, was originally provided by General Electric.  This included publications like manuals and data sheets.

While the OEM no longer supports older Speedtronic systems, AX Control will help you keep yours running through our repair services, exchange programs, and our extensive catalog of Mark IV parts.



Repair Services For DS3800NSCC1E1D

Type Lead Time Price Action
Repair Service 1-2 weeks $402

Our highly skilled technicians can repair your DS3800NSCC1E1D. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
