GE Mark IV Board DS3800NPSY1E1D

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a DS3800NPSY1E1D to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800NPSY1E1D
  • SKU: DS3800NPSY1E1DGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

About the DS3800NPSY1E1D

The DS3800NPSY1E1D was manufactured by General Electric. This product is a printed circuit board. The DS3800NPSY1E1D was designed as a part in the Speedtronic Mark IV series which is used for turbine control.

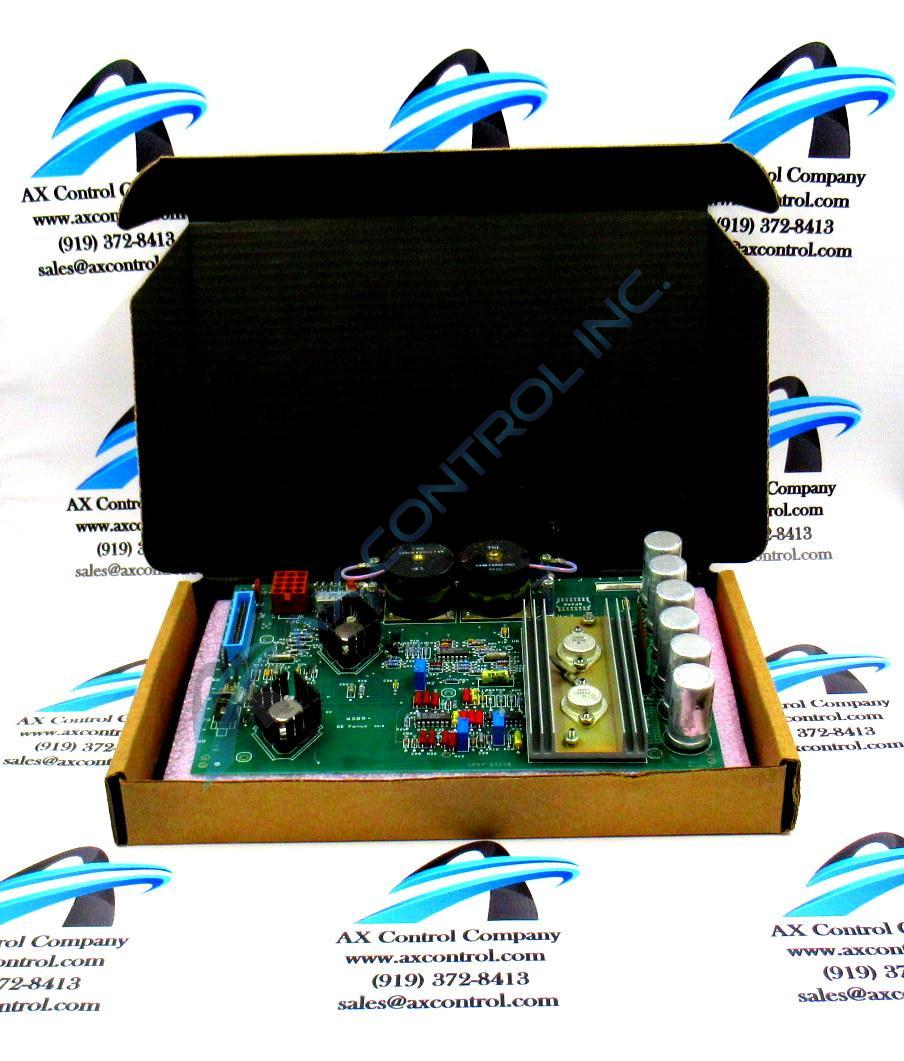

Six (6) large capacitors which are silver in color are sitting on the right side of the DS3800NPSY1E1D. These capacitors are placed vertically on the surface of the board. Four (4) large silver transistors are located on the DS3800NPSY1E1D. Two of the transistors are attached to a silver metal plate. These transistors are connected to the DS3800NPSY1E1D by a grey wire. The other two transistors are on the other side of the circuit board. These transistors are mounted on small black plates. Five (5) small transistors are on the left half of the DS3800NPSY1E1D. Every transistor is labeled with the designator Q. Two (2) inductors, or coils, are situated at the top of the DS3800NPSY1E1D. These two inductors are cased in black. These inductors are identified by the part name 448373823-001 8709. A blue connector port is positioned on the left side of the DS3800NPSY1E1D. This port is a forty (40) point male connector port. The connector port is positioned vertically on the DS3800NPSY1E1D. A large silver metal diode is also on the left side of the circuit board. This diode is connected to the board with grey wires. Five (5) integrated circuits are located in the center of the DS3800NPSY1E1D. Also close to the middle of the circuit board are four (4) blue potentiometers. The dials on these potentiometers can be used to alter the resistance of the devices.
