The DS3800NPSE1E1G Power Supply Board

Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a DS3800NPSE1E1G to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: DS3800NPSE1E1G
SKU: GBTC-12704

Manufacturer: GE Boards & Turbine Control
Series: Mark IV DS3800

Description
Repairs
Warranty
Manuals

DS3800NPSE1E1G Technical Specifications

Manufacturer	General Electric
Series	Mark IV Speedtronic
Functional Description	DS3800NPSE1E1G Power Supply Board
Functional Part Number	DS3800NPSE1E1G

About the DS3800NPSE1E1G

The DS3800NPSE1E1G was manufactured by General Electric (GE). This printed circuit board (PCB) was designed to be an important component in the Speedtronic Mark IV system. Mark IV is one in a series of controls for turbine automation and regulation. Mark IV is responsible for automating a turbine system and protecting it against any unsafe operating conditions.

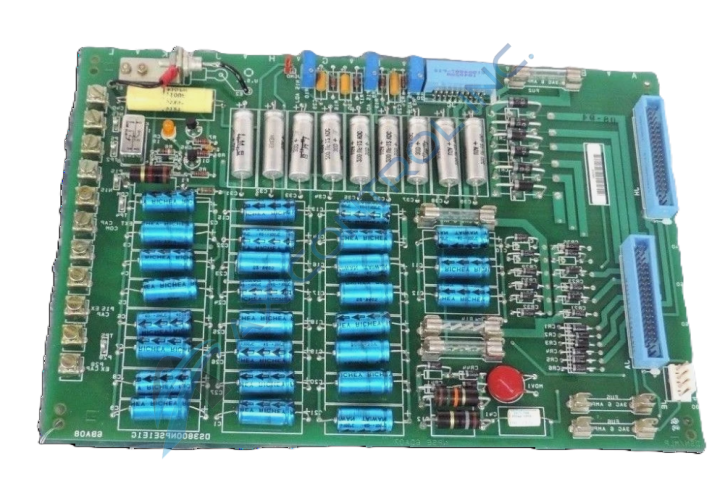

DS3800NPSE1E1G Power Supply Board Components

The DS3800NPSE1E1G contains many various types of circuit board components, including but not limited to its:

two light blue connector ports
- both “male” connector ports
- positioned vertically on the DS3800NPSE1E1G
another light blue connector port
- smaller than the other two
twenty-seven (27) medium-sized blue capacitors
- labeled from C1 to C27
- aligned in vertical rows
nine (9) silver capacitors
- aligned in a horizontal row
- named C31 to C39
four fuses
spaces available for two more fuses
three (3) potentiometers
- each has a dial to adjust resistance

Twenty-four small diodes, which are black and grey in color, are lined up in vertical rows on the DS3800NPSE1E1G. Near the bottom of the DS3800NPSE1E1G circuit board, there is one (1) metal oxide varistor (MOV).

Frequently Asked Questions about DS3800NPSE1E1G

Is the DS3800NPSE1E1G Board a diode-heavy device?

Yes. As alluded to before, over one third of this DS3800NPSE1E1G product's base circuit board is coated in blue diode components.

Has this DS3800NPSE1E1G Power Supply Board been factory-drilled?

Yes. This DS3800NPSE1E1G Board has been both factory drilled and insulated in four locations.

Reviews For DS3800NPSE1E1G

Internal Review

(5.0)

This DS3800NPSE1E1G Power Supply Board is a fine Mark IV Series offering with a unique product revision table including both an E and a G-rated product revision. This ensures a large functional difference from the NPSE base product. Large female ports are available on the left side of the board relative to its printed part number as pictured above. Buy or Repair. - AX Control Lead Technician
