The DS3800NOAB1C1B Mark IV Operation Amplifier Board

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a DS3800NOAB1C1B to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800NOAB1C1B
  • SKU: GBTC-12653
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

DS3800NOAB1C1B Technical Specifications

Functional Description DS3800NOAB1C1B Operational Amplifier Board
Functional Part Number DS3800NOAB1C1B
Revision Total 2 Revisions
Functional Revision 1 C
Functional Revision 2 B
Assembly Type Normal DS3800

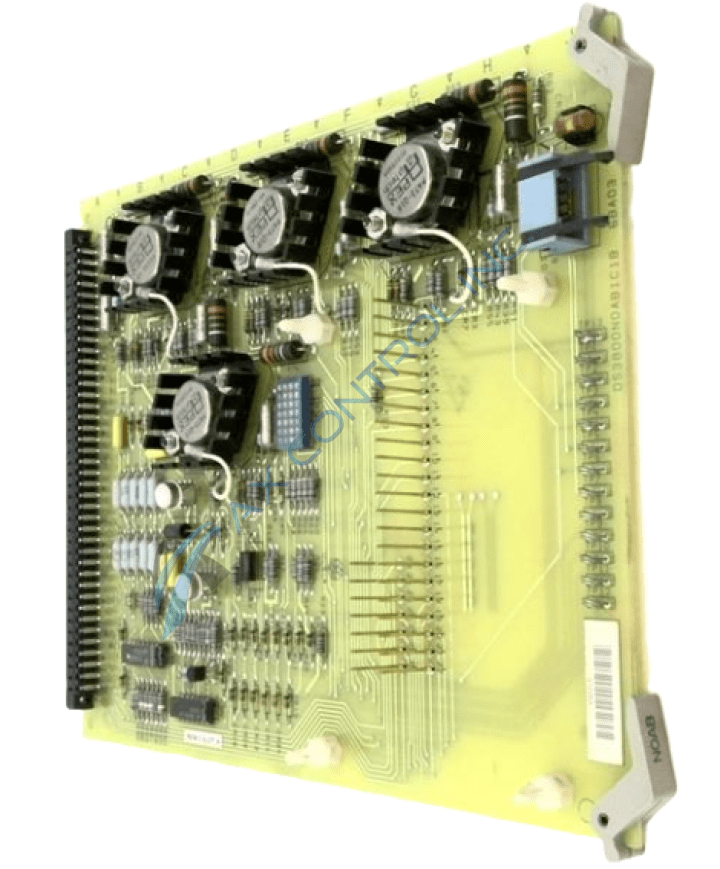

About the DS3800NOAB1C1B

GE developed the DS3800NOAB1C1B as an operational amplifier board for their Mark IV series.  This series was created for the management and control of gas and steam turbines. The Mark IV improves the efficiency of these systems by automating some procedures (startup/shutdown,) as well as minimizing downtime caused by electronics failure.  This is done through intentional design features such as overlapping responsibilities within integrated chipsets. The DS3800NOAB1C1B is designed to:accept an optional auxiliary board.  This board:

  • fits over the right side of the DS3800NOAB1C1B
  • attaches via twenty-nine board-to-board vertical pins
  • is supported further through four nylon pins

DS3800NOAB1C1B Operational Amplifier Board Communication

The DS3800NOAB1C1B can communicate with other PCBs via a 10-pin male connector located on the right side of the board.  It also has:

  • another PCB mating connector (218A4553-1 AMP 533002-1)
  • one 28-pin female Augat connector
  • one transistor
  • four circuits
  • one LED
  • thirteen TP test points,
  • both ceramic-covered metal film and carbon composite resistors
  • four Burr-Brown high current, high power operational amplifiers

Those specialized DS3800NOAB1C1B Operational Amplifier Board amplifiers have an output current of +/-5 Amps peak, +/-2 amps continuous. They use 100 watts of power peak and 40 watts continuous. They are internally frequency compensated and are unconditionally stable with capacitive loads to 3300pF. All technical support for the DS3800NOAB1C1B including manuals and datasheets came from General Electric.


Frequently Asked Questions about DS3800NOAB1C1B

Does this DS3800NOAB1C1B device mount in a rack?

Yes. This DS3800NOAB1C1B Operational Amplifier Board utilizes its two retention clips to mount in a rack-style installation assembly.

How much does this DS3800NOAB1C1B device weigh?

This DS3800NOAB1C1B PCB weighs about 3/4ths of a pound, not including shipping materials.

Reviews For DS3800NOAB1C1B

Internal Review
(5.0)

This DS3800NOAB1C1B printed circuit board product offering is best described by its functional description as an Operational Amplifier Card. Despite General Electric's prescribed printed circuit card status, this DS3800NOAB1C1B PCB still seems to possess something of a large base printed circuit board. Four possible diode components marked "Apex" are available on its surface. - AX Control Lead Technician

Repair Services For DS3800NOAB1C1B

Type Lead Time Price Action
Repair Service 1-2 weeks $421

Our highly skilled technicians can repair your DS3800NOAB1C1B. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
