GENERAL ELECTRIC MARK IV BOARD

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS3800NLBA1D1D to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800NLBA1D1D
  • SKU: DS3800NLBA1D1DGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

Product Description

The DS3800NLBA1D1D is part of the Speedtronic Mark IV series. General Electric is the producer of the DS3800NLBA1D1D. Turbines are a simple way to create energy using an internal combustion engine. In the internal combustion engine, there is a mixture of fuel and air used to create an explosion causing a gas mixture that turns the turbine.

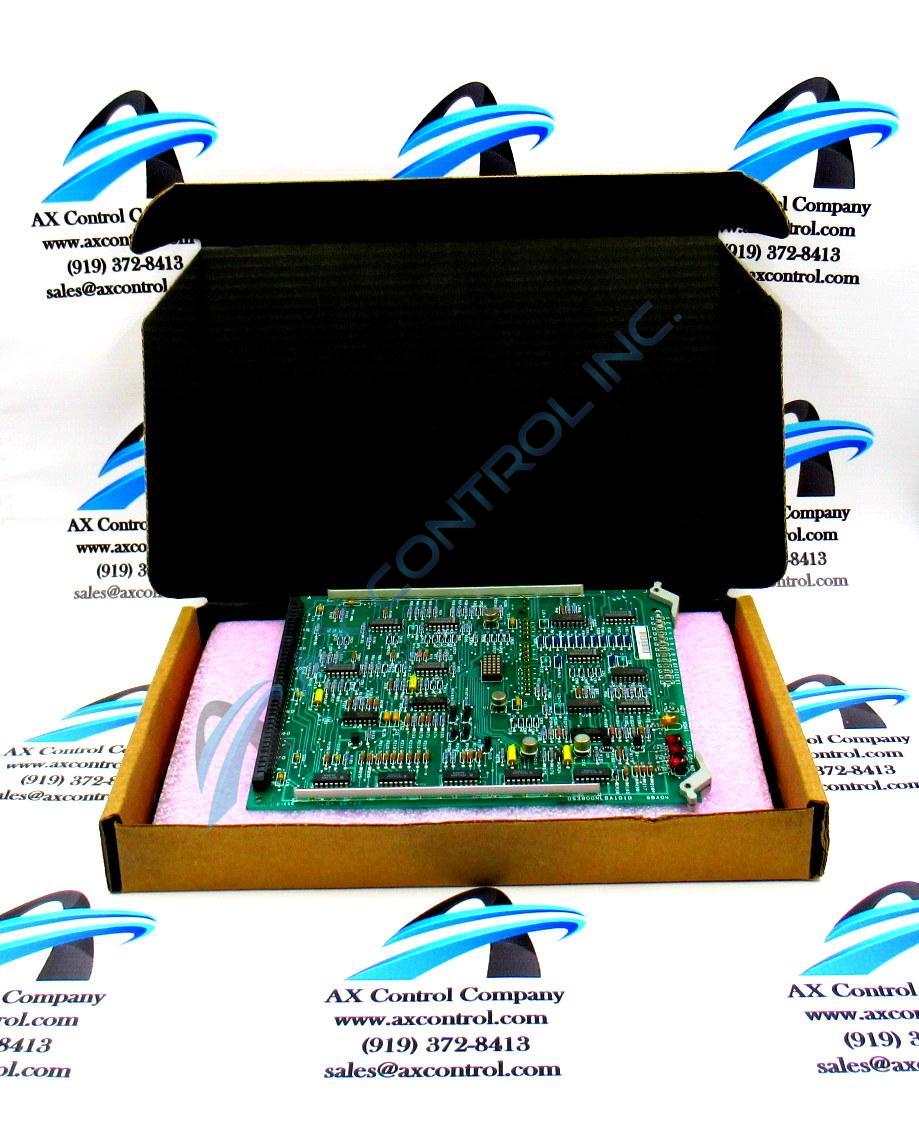

 The DS3800NLBA1D1D has four small grey diodes, four large grey didoes, six large red diodes, two teal diodes, two deep red diodes, thirty orange diodes, two light blue diodes, four silver and black diodes, and six large black didoes. The DS3800NLBA1D1D has seventeen black rectangles called EEPROM. An EEPROM is used to hold all the programming information for the DS3800NLBA1D1D to work. Each EEPROM comes pre-programmed and cannot be updated. The DS3800NLBA1D1D has four yellow capacitors. The capacitors hold extra energy in an electric field. The DS3800NLBA1D1D has a twenty-eight hole female port in the center of the board. The DS3800NLBA1D1D also has a long female port along one of the short edge of the board. The DS3800NLBA1D1D has two metal barriers along the longer edges of the boards. The DS3800NLBA1D1D has two-hundred and sixteen resistors. Each resistor has multi-colored bands to indicate how much energy the resistor can hold. The DS3800NLBA1D1D has seven small black transistors and four silver circle transistors. The transistors are used to amplify or switch electric signals and electrical power.

If you are interested in additional information on this product or would like a quote, please call please AX Control.

Repair Services For DS3800NLBA1D1D

Type Lead Time Price Action
Repair Service 1-2 weeks $316

Our highly skilled technicians can repair your DS3800NLBA1D1D. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
