DS3800NHVN1A1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
MARK IV GE HIGH VOLTAGE CIRCUIT BOARD

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS3800NHVN1A1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800NHVN1A1A
  • SKU: DS3800NHVN1A1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

DS3800NHVN1A1A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
MARK IV GE HIGH VOLTAGE CIRCUIT BOARD

AVAILABILITY:

IN STOCK
SHIPS TODAY

3 Year Warranty: Learn More
Sell Surplus: Have a DS3800NHVN1A1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800NHVN1A1A
  • SKU: DS3800NHVN1A1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

Product Description

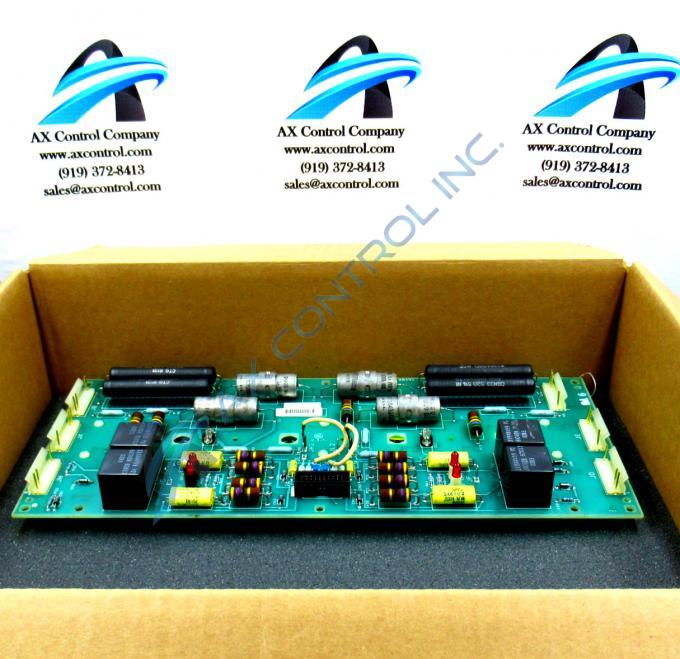

The DS3800NHVN1A1A is a high voltage circuit board used in  GE’s Speedtronic(Mark IV) Turbine line. The DS3800NHVN1A1A is used to manage a gas turbine. Turbines are a great creator of energy around the world. A gas turbine is made up of numerous parts from circuit boards such as the DS3800NHVN1A1A all the way to large parts like the internal combustion engine that makes the turbine move. The internal combustion engine uses a mixture of fuel and air to cause an internal combustion to create a mixture of gasses that are under pressure and push their way out by forcing the turbine spin, which then generates power that is harnessed for various purposes. The DS3800NHVN1A1A has eight ashen diodes, six LEDs four are crimson and two are translucent diodes. The DS3800NHVN1A1A has seven masculine ports that are used to hook the DS3800NHVN1A1A to other surrounding circuit boards. There are three along each short edge and a single one in the middle of the long edge at the bottom. The DS3800NHVN1A1A also has sixteen resistors. The resistors restrict energy flow at those points. The amount of energy each resistor can handle is specified by the colored bands on the external covering of the resistor.  The DS3800NHVN1A1A has four black towers referred to as relays which regulate the amount of energy the circuit board accepts in at one time. Each relay is adjustable. The DS3800NHVN1A1A also has the ability to store extra energy in an electrical field using its capacitors. The DS3800NHVN1A1A has four small yellow capacitors, four metal capacitors, and four long black capacitors.

For additional information or a price quote please call AX Control.

Repair Services For DS3800NHVN1A1A

Type Lead Time Price Action
Repair Service 1-2 weeks $417

Our highly skilled technicians can repair your DS3800NHVN1A1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
