GENERAL ELECTRIC MARK IV HIGH VOLT BOARD

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a DS3800NHVM1B1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800NHVM1B1A
  • SKU: DS3800NHVM1B1AGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

About the DS3800NHVM1B1A

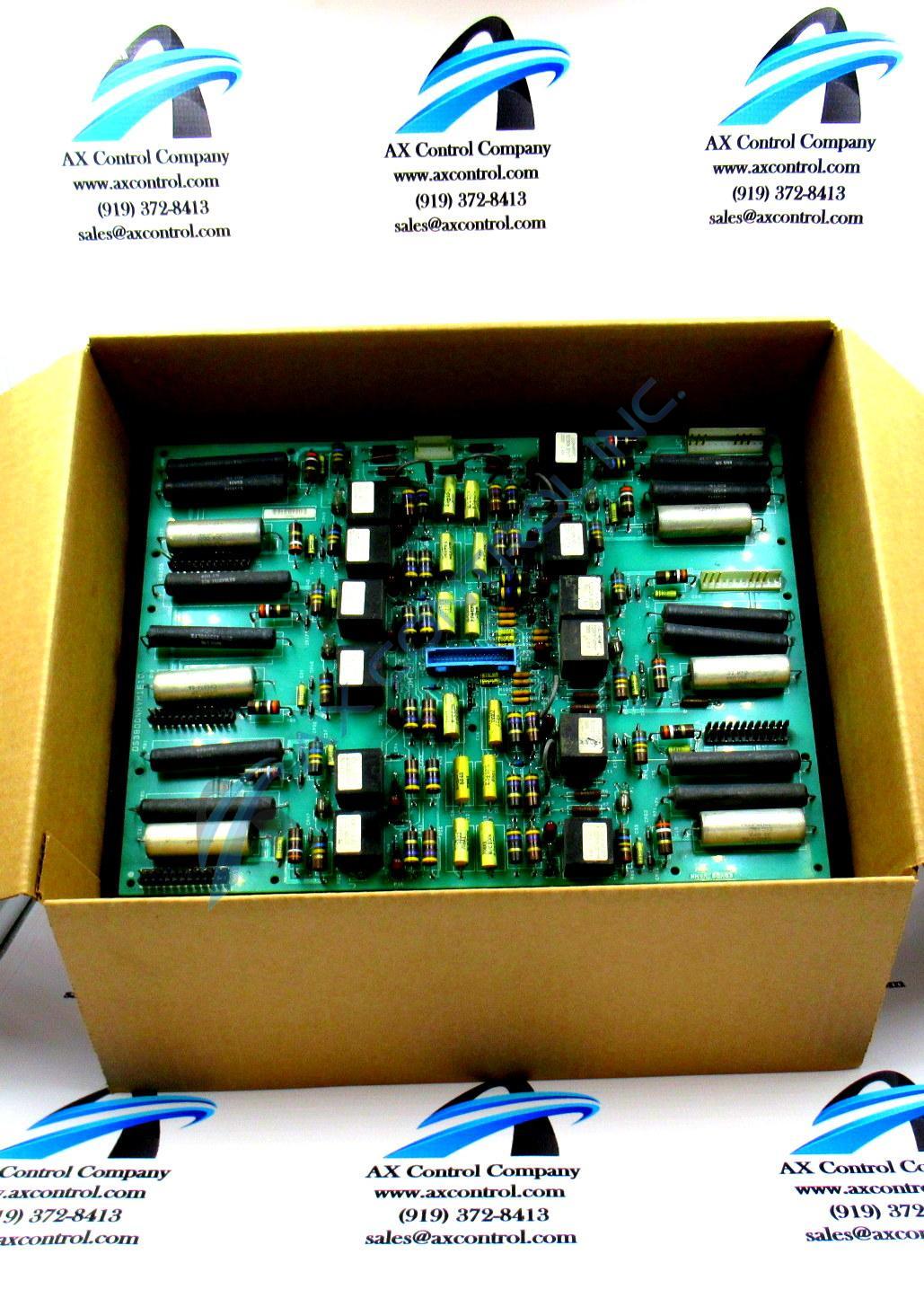

The DS3800NHVM1B1A is a very detailed circuit board produced by GE and is featured in the Mark IV Speedtronic Turbine series.

The DS3800NHVM1B1A also stores energy in electric fields using capacitors. The DS3800NHVM1B1A has six large metal capacitors, twelve large black capacitors, and twelve average-sized white capacitors.

The DS3800NHVM1B1A also features thirteen relays. The relays are large black boxes that regulate how much energy the board takes in and allows the DS3800NHVM1B1A to still function even if the energy current is too strong.

The DS3800NHVM1B1A has forty-eight big resistors. The base color of the resistors ranges between DS3800NHVM1B1A brown, grey, and black. The DS3800NHVM1B1A also has seventeen average size resistors whose base color is light blue. The DS3800NHVM1B1A also has eleven tiny resistors whose base color is also light blue. Every resistor on the board has a set of up to five different colored stripes over its base color. These stripes show how much energy can go through each resistor.

The DS3800NHVM1B1A has eight male ports that allow it to be connected with other circuit boards.

The DS3800NHVM1B1A has seventeen average-sized burgundy diodes, twenty-six small dark and grey diodes, ten average-sized dark diodes, and six transparent diodes. A diode is used to have the energy flow in only one direction on the board. The DS3800NHVM1B1A also has twelve raised ruby LEDs. An LED is also referred to as a light emitting diode. These diodes light up as the current flows through them.

If you’re interested in a quote or more information please call AX Control.

Repair Services For DS3800NHVM1B1A

Type Lead Time Price Action
Repair Service 1-2 weeks $450

Our highly skilled technicians can repair your DS3800NHVM1B1A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
