The DS3800NHVK High Voltage Board from General Electric was originally designed for the Mark IV Turbine Control System Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS3800NHVK to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800NHVK
  • SKU: GBTC-12578
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

DS3800NHVK Technical Specifications

OEM General Electric
Functional Description DS3800NHVK High Voltage Board
Series Mark IV Speedtronic
Functional Part Number DS3800NHVK

About the DS3800NHVK

General Electric’s Turbine series Mark IV (Speedtronic) includes the DS3800NHVK circuit board. Gas Turbines are a widely used form of energy production. Gas turbines use a fuel and air mixture in an internal combustion engine to ignite and create a gas mixture. This gas mixture builds pressure and makes the turbine spin, which generates the energy.

DS3800NHVK Device Hardware Components Detailed

The DS3800NHVK has:

  • four large black capacitors
  • four large silver capacitors
  • four average sized yellow capacitors
  • two tiny yellow capacitors (these store excess energy)
  • twelve large brown diodes with stripes
  • six tiny blue diodes with stripes (limit energy flow)
  • seven small black diodes
  • ten average sized grey diodes, and two white diodes (allow energy to flow in one direction).

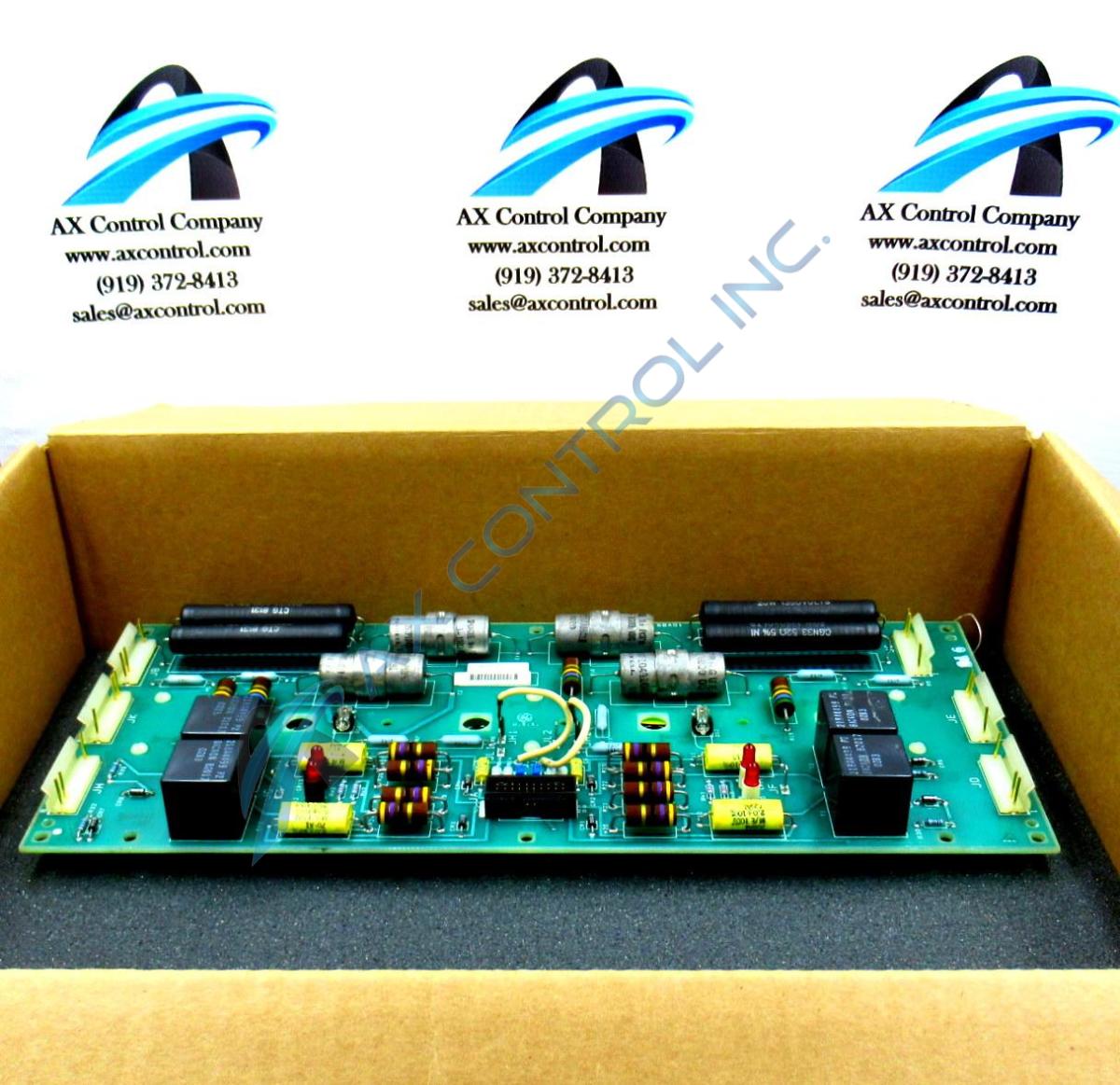

The DS3800NHVK also has four red LEDs (light emitting diodes) which illuminate when current passes through them. The DS3800NHVK has four large black squares. These squares are called relays and control the amount of energy the board takes in, especially if the energy current is more than the circuit board can handle. There are six male ports with white plastic casings and three prongs in each port on the DS3800NHVK. The DS3800NHVK has twenty holes throughout the circuit board. These holes are used to secure the DS3800NHVK in place. The DS3800NHVK has every piece labeled with its respective letter and number combination for easy identification. The circuit board also has its part number (DS3800NHVK) printed along the edge of the board.

If you require more information or are looking for a quote give AX Control a call.


Frequently Asked Questions about DS3800NHVK

What style of revision has this DS3800NHVK been edited through?

The DS3800NHVK Circuit Board here has no singular revision applied to its assembly.

Which Mark Series product grouping does the DS3800NHVK Circuit Board here make use of (based on product number)?

This DS3800NHVK offering's unique product functional acronym and number actually makes no mention of a specific GE Mark Series grouping.

Reviews For DS3800NHVK

Internal Review
(5.0)

This DS3800NHVK Mark IV Series printed circuit board is only definable through the basic product description as a High Voltage Board. While this may be the case, it is still quite the sophisticated GE Mark Series offering, with its standard assembly usually utilizing a series of DS3800NHVK device voltage limits, such as general diodes, rectifiers, tachometers, and other relevant GE Mark Series offerings. - AX Control Lead Technician
