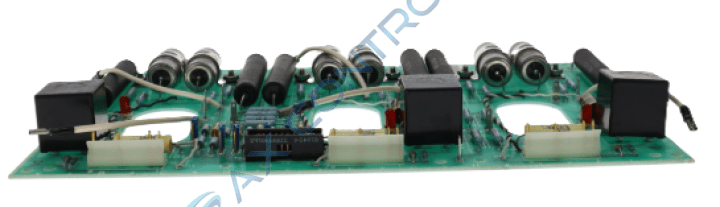

The DS3800NHVJ1A1A High Voltage PLC Board

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS3800NHVJ1A1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800NHVJ1A1A
  • SKU: GBTC-12577
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

DS3800NHVJ1A1A Technical Specifications

Manufacturer GE General Electric
Functional Description DS3800NHVJ1A1A High Voltage PLC Board
PCB Status Add-On PCB
Functional Revision 1 A
Mark IV Series Grouping Group 1

About the DS3800NHVJ1A1A

The DS3800NHVJ1A1A is featured in the Speedtronic Mark IV line created by General Electric. The Speedtronic Mark IV series was fashioned to control gas turbines. The DS3800NHVJ1A1A has five pairs of tips referred to as Jumper Ports. Using the shelters provided the worker can change the energy current around the board using the shelters on the Jumper Ports. The DS3800NHVJ1A1A has six large sized dark brown resistors and two tiny pale blue resistors. The DS3800NHVJ1A1A has, six big silver capacitors, three average sized yellow capacitors, five little yellow capacitors, ten little red capacitors, and six big black capacitors. Each capacitor holds a diverse amount of energy in an electric field. The DS3800NHVJ1A1A has nearly twenty grey diodes, two small ball like diodes and two small brown diodes The DS3800NHVJ1A1A also has:

  • three red LEDs (light emitting diodes)
    • two LEDs next to two of the three relays
    • the final LED is a little lower than the final relay
    • each LED light ups as an electrical current flow through it
  • three pairs of twisted black and white wires
  • small short white wire arches
  • three large relays
  • three male terminal ports
  • three oval cut outs in the board

Frequently Asked Questions about DS3800NHVJ1A1A

What is the purpose of the DS3800NHVJ1A1A High Voltage Board's three oval slots?

The three oval-shaped slots in this DS3800NHVJ1A1A device's assembly are installation-intended, as the DS3800NHVJ1A1A is an add-on board product.

Does this DS3800NHVJ1A1A have a normal Mark IV Series assembly?

Yes and no. While the DS3800NHVJ1A1A functional product number asserts a standard Mark IV Series assembly type, this DS3800NHVJ1A1A's makeup is not similar to many standard rectangular PCBs also available for purchase or repair through us.

Reviews For DS3800NHVJ1A1A

Internal Review
(5.0)

This DS3800NHVJ1A1A product offering is a High Voltage PLC Circuit Board made for a legacy series in General Electric's Mark IV Turbine Control System Series. While it may have an elevated number of voltage suppression-intensive hardware elements, it does not have any alternative energy capabilities other than that, as these were introduced with the later release of the Mark VI Series. - AX Control Lead Technician
