DS3800NGRC1H1G

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product

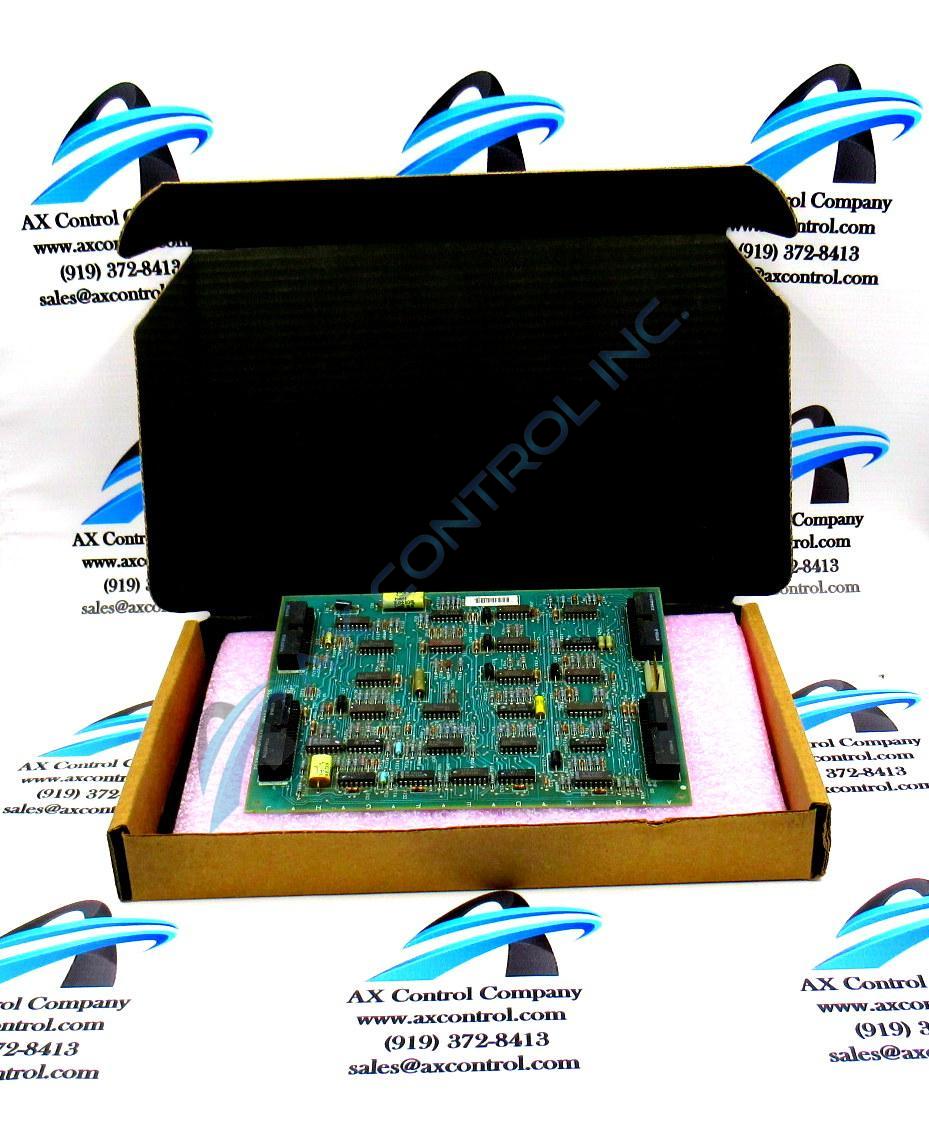

The DS3800NGRC1H1G is a printed circuit board from GE

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a DS3800NGRC1H1G to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800NGRC1H1G
  • SKU: DS3800NGRC1H1GGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

About the DS3800NGRC1H1G

The DS3800NGRC1H1G is a PCB from GE manufactured as a regulator board for their Mark IV system. This system, designed for gas or steam turbine management, can automate some processes such as cool down and shut down. It can also be used for air, water, and fuel emissions control, and to maintain safe operating conditions within the turbine system.

The DS3800NGRC1H1G is drilled in all corners for mounting. Alignment marks have been added to its top edge (A through J.) Other markings include identifiers such as '6BA08' and the GE stamp. All components are marked.

The DS3800NGRC1H1G includes one 6-pin header. It has four communication connectors from the 218A4637 series. All are placed along edges of the board. This includes two 218A4637P4 8925 connectors as well as two P6 connectors from the series.

Both ceramic covered metal film and CCR (carbon composite) resistors are used on the DS3800NGRC1H1G. Capacitors vary in their capacitance, but many are made of polyester film and designed with through-hole axial leads.

The DS3800NGRC1H1G has twenty-five integrated circuits. Circuits have different tasks which include super gain amplifiers, voltage comparators, and quad 2-input exclusive-OR gates.

Technical support for the DS3800NGRC1H1G was originally provided by the manufacturer. GE published a variety of datasheets and manuals for the Mark IV series and its components. These publications are the best resource for maintenance schedules and installation guidelines. Only qualified electrical personnel should install or maintain this or any other Mark IV components. Please follow all safety recommendations.
