The DS3800NGDC1A1A Mark IV Ground Detector Module

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a DS3800NGDC1A1A to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800NGDC1A1A
  • SKU: GBTC-12517
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

DS3800NGDC1A1A Technical Specifications

Manufacturer General Electric
Series Mark IV Speedtronic
Functional Description DS3800NGDC1A1A Mark IV Ground Detector Module
Part Number DS3800NGDC1A1A
Assembly Type Modular; Standard

About the DS3800NGDC1A1A

The DS3800NGDC1A1A is a ground detector board manufactured by GE as a component for their Mark IV/Speedtronic series. This series, designed for gas/steam turbine control, can automate some procedures for the turbine system including shut down and startup. It can also help maintain safe operating parameters and help keep the turbine system running within those parameters. The DS3800NGDC1A1A is built with three transistors.

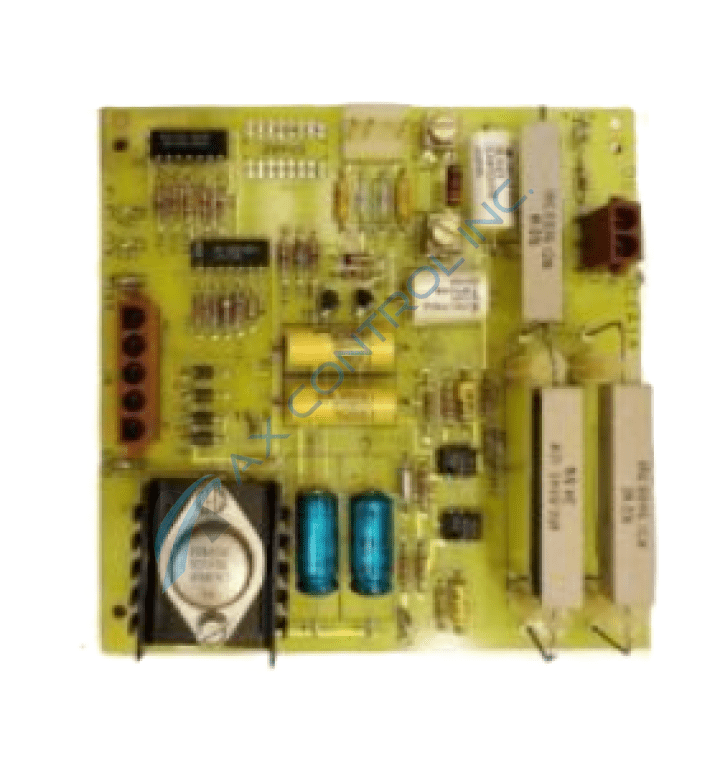

Two of these transistors are small, but the third is a larger Motorola NPN power transistor with a heat sink installed. It has four integrated circuits. It is also built with six test points (TPs.) It is worth noting these TP test points are labeled TP0 through TP5, as TP0 acts as a ground. The DS3800NGDC1A1A is built with one male 3-pin header. This is located along one edge of the board. Ninety degrees from this component, placed opposite each other, is one two-position PCB terminal block, and one five-position PC mount terminal strip. Other components on the DS3800NGDC1A1A include:

  • spare PTH
  • snap-in PCB screw mounts
  • multiple capacitors, resistors, and diodes
  • Seacor polyester DC foil and film capacitors (600V) with axial leads
  • capacitors rated 25V 100 μf
  • cement wire wound resistors
  • nylon pins

Frequently Asked Questions about DS3800NGDC1A1A

Is the DS3800 Assembly typical?

Yes. This DS3800NGDC1A1A product has the Mark IV Series' most common DS3800 style of product assembly.

Are any installation holes in the DS3800NGDC1A1A's base board?

Yes. Several holes have been drilled in this DS3800NGDC1A1A device's base PCB for mounting purposes.

Reviews For DS3800NGDC1A1A

Internal Review
(5.0)

This DS3800NGDC1A1A product offering is a printed circuit board or printed circuit card originally designed for the modular assembly of the Mark IV Turbine Control System Series. This DS3800NGDC1A1A Ground Detector Module has a faded base PCB with several individually-labeled components such as diodes. It has a repair option and a warranty both available for your convenience today here. - AX Control Lead Technician
