About the DS3800NFCF1J1F
The DS3800NFCF1J1F by GE is a firing circuit board designed as part of the Mark IV/Speedtronic line. The Mark IV was created for gas and steam turbine control management and can automate routine such as shutdown and startup. It can also keep the system from operating outside of safe parameters. This DS3800NFCF1J1F printed circuit board's Mark IV Series, as you have probably been able to guess based on its full extended Mark Series name alone, retains a series of crucial functional applications within the control and management systems of General Electric-compatible gas and steam turbine automated drive assemblies. With this being true, this DS3800NFCF1J1F printed circuit board or PCB for short's greater Mark IV Series does not encompass the potential alternative energy-geared wind turbine control system applications seen in soon to come General Electric Mark Series iterations such as the Mark VI Turbine Control System Series. While this may be the case, this DS3800NFCF1J1F product's greater Mark IV Turbine Control System Series has still consistently been able to attract some concerted demand on its greater automated industrial promotional marketplace, as it is one of the brand's final-developed Mark Series to insert the esteemed Speedtronic control system technology into the internal assemblies of many of its different offerings.
Hardware Tips and Specifications

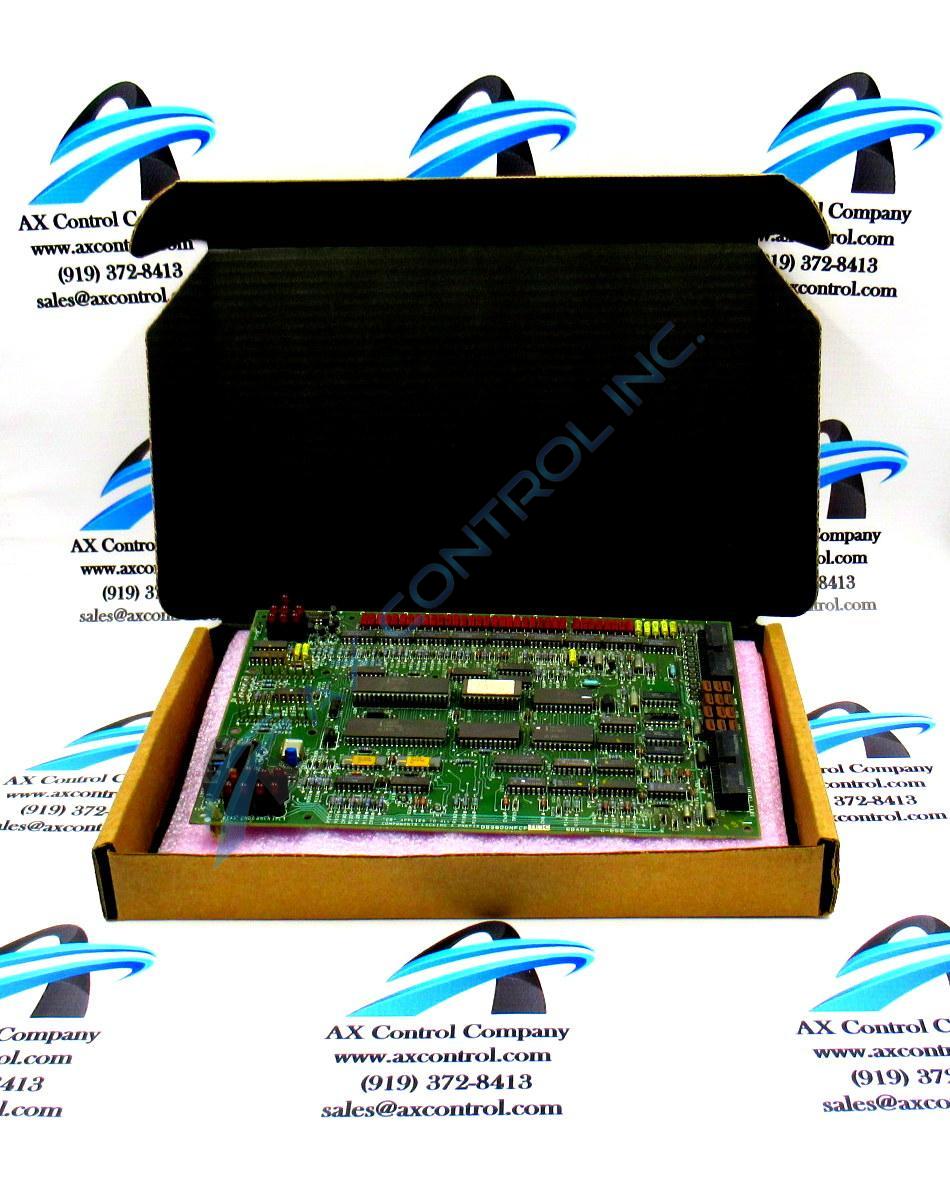

The DS3800NFCF1J1F is a larger printed circuit board designed with an auxiliary daughter board (DS3800DFCF.) When this board is attached the motherboard has access to more components including ammeters. Four nylon pins and seventeen metal pins support the daughter board and hold it in place when it is installed. The DS3800NFCF1J1F has 42 integrated circuits including 4-bit up/down counters, J/K negative edge triggered flip-flops which are buffered for maximum isolation from disturbance, crystal oscillators, and 8-bit static MOS RAM chips. The DS3800NFCF1J1F is built with one amber LED and fourteen red LEDs, which are grouped in the corners of the board. The PCB has twenty-one transistors and two jumper switches. The jumper switches complete circuits and allows for custom settings. There are three connectors on the board which allow the DS3800NFCF1J1F to communicate with other printed circuit boards; this includes one 10-pin vertical male connector and two 218A4637-P4s. All of these components are individually labeled. The DS3800NFCF1J1F also has a number of capacitors, resistors, and diodes of differing values. Given this DS3800NFCF1J1F product's possession of a DS3800NFCF1J1F functional product number, it is not conformable whether or not this DS3800NFCF1J1F PCB is the originally-developed device of its specific Mark Series Suite functionality.
Installation guidelines for the DS3800NFCF1J1F were published in data sheets and manuals provided by GE. Please refer to these publications for safety recommendations. Maintenance schedules may also be found within the manual. While referencing this DS3800NFCF1J1F device's various installation and replacement procedures are certainly important, it has honestly been included on this DS3800NFCF1J1F personalized product page here due to a concerted lack of online-available and originally-printed DS3800NFCF1J1F Board instructional manual materials from GE, with this lack more than likely being due to this DS3800NFCF1J1F device's legacy product series status. With this lack being identified, the DS3800NFCF1J1F functional product number itself stands to serve as a decent source of DS3800NFCF1J1F Board hardware component and component specification information, as it codes for these details through a series of consecutive functional naming segments. For example, this particular DS3800NFCF1J1F functional product number starts off with the dual-functional DS3800 series tag describing this DS3800NFCF1J1F device's normal Mark IV Series assembly as well as its domestic location of original manufacture. Some of the other relevant hardware details in the DS3800NFCF1J1F functional product number include this DS3800NFCF1J1F PCB's DS3800 series tag as well as its domestic location of original General Electric manufacture. Some of the other relevant hardware details revealed in this manner include this DS3800NFCF1J1F product's NFCF functional product abbreviation as well as its group one Mark IV Series product grouping.
