DS3800NFCF1D1D

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The DS3800NFCF1D1D is a printed circuit board from GE

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a DS3800NFCF1D1D to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

DS3800NFCF1D1D

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The DS3800NFCF1D1D is a printed circuit board from GE

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a DS3800NFCF1D1D to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

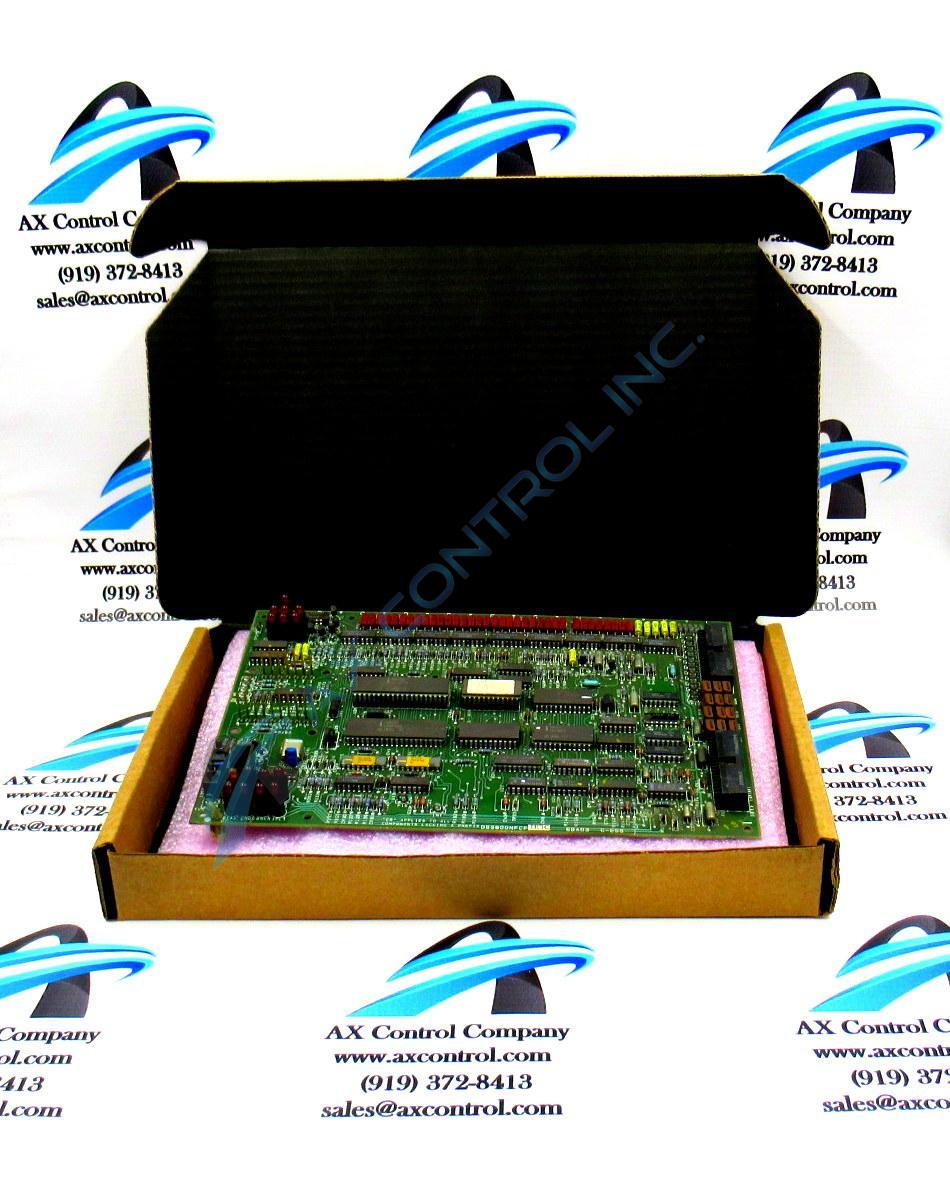

The DS3800NFCF1D1D is designed to function as a firing board within the Speedtronic/Mark IV series. This series was created for gas/steam turbine control management. It can automate procedures such as cool down and shut down, and can also protect the turbine system from operating in unsafe conditions.

The DS3800NFCF1D1D has the following specifications:

  • -factory-drilled at all corners. Marked for alignment.

  • -accepts the auxiliary board DS3800DFCF. When installed, this auxiliary gives access to extra components including jumpers and ammeters. The auxiliary is held in place by board-to-board connector pins.

  • -two plunge switches, located in the lower left corner. These switches are marked "rest" and "step."

  • -seven LEDs at upper edge. Eight LEDs at lower edge.

  • -three connectors for communicating with other boards. This includes two 218A4637-P4 0027 connectors and one vertical male 10-pin connector.

  • -two jumper switches.

  • -twenty-nine test points. Each test point is labeled.

  • -twenty-one transistors.

  • -forty-two integrated circuits. This includes 8-bit static MOS RAM chips, flip-flops, crystal oscillators (11.00MHz KDS 5L,) and binary counters.

  • -eight 8542 +/-2 M/E 0022 200V capacitors. There are various other capacitors located on the board.

  • -built with resistors of differing values. The majority of these capacitors tend to be ceramic covered metal film.

Installation and maintenance guidelines for the DS3800NFCF1D1D can be found by referencing manuals or datasheets for this product. Technical support publications were originally distributed by GE.

Our team is here to help you with all your automation needs. Our staff can provide pricing information on the DS3800NFCF1D1D or any other part or service.

Repair Services For DS3800NFCF1D1D

Type Lead Time Price Action
Repair Service 1-2 weeks $416

Our highly skilled technicians can repair your DS3800NFCF1D1D. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
