The DS3800NFCD1S1H is a printed circuit board from GE

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a DS3800NFCD1S1H to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

DS3800NFCD1S1H

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
The DS3800NFCD1S1H is a printed circuit board from GE

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a DS3800NFCD1S1H to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

GE manufactured the DS3800NFCD1S1H as a firing circuit board component for the Mark IV (Speedtronic) series. The Mark IV was designed for gas and steam turbine control management.

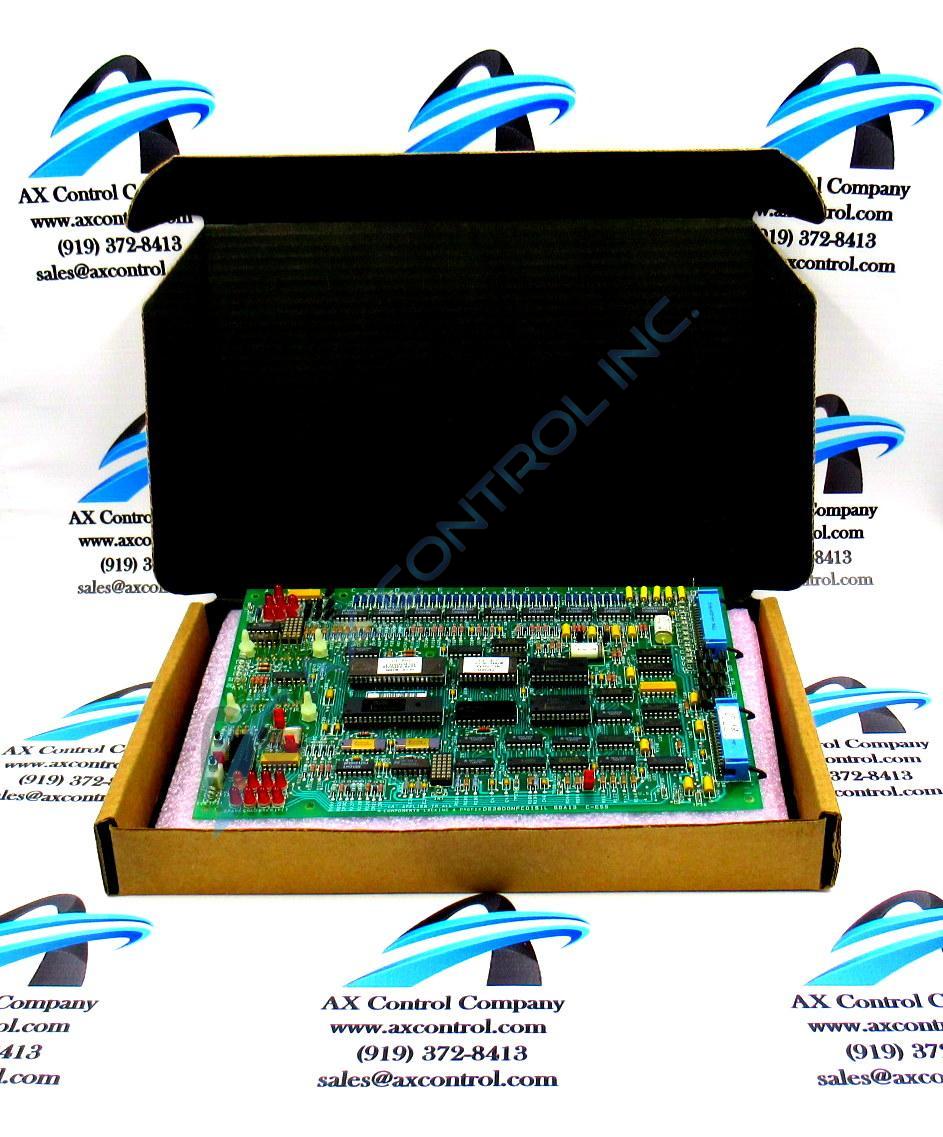

The DS3800NFCD1S1H has been factory drilled in all corners. It has been drilled twice in each left corner. There are three other factory drill holes located on the board. It is alignment-marked along its top edge. It has two connectors along its right edge: 218A4637-P4 11492BR and 218A4637-P4 32694AR. It has one vertical 5-pin (male) connector in its lower left quadrant. It has two Augat DIP plugs, one located in its upper left quadrant and the other located along the lower middle edge.

The DS3800NFCD1S1H has been built with four nylon pins and 17 brass nickel plated pins to support or lock in the auxiliary board DS3800DFCD, which is designed to work with the DS3800NFCD1S1H. These pins are located along the right edge of the board.

Other components populating the DS3800NFCD1S1H include two plunge switches, fourteen red LEDs, and one amber LED, 44 integrated circuits including circuits from Motorola and Intel, four jumper switches, thirty test points, and over twenty transistors. The board is built with multiple ceramic covered metal film resistors of differing values, diodes, and various capacitors. All components are individually labeled except diodes, which may or may not be labeled.

If installation guidelines are required, these may be found in technical support publications such as data sheets and manuals that reference DS3800NFCD1S1H. All technical support publications were originally provided by General Electric.

Repair Services For DS3800NFCD1S1H

Type Lead Time Price Action
Repair Service 1-2 weeks $467

Our highly skilled technicians can repair your DS3800NFCD1S1H. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
