GE Boards - Mark IV DS3800 - DS3800NBID
3 year warranty

GE Boards - Mark IV DS3800 - DS3800NBID
GE BRIDGE INTERFACE BOARD | Image

DS3800NBID

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
GE Mark IV Board DS3800NBID

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS3800NBID to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800NBID
  • SKU: DS3800NBIDGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

Product Description

The DS3800NBID is a bridge interface circuit board. It was produced as a part of the Speedtronic Mark IV turbine control series. The DS3800NB1D was manufactured for the series by General Electric.

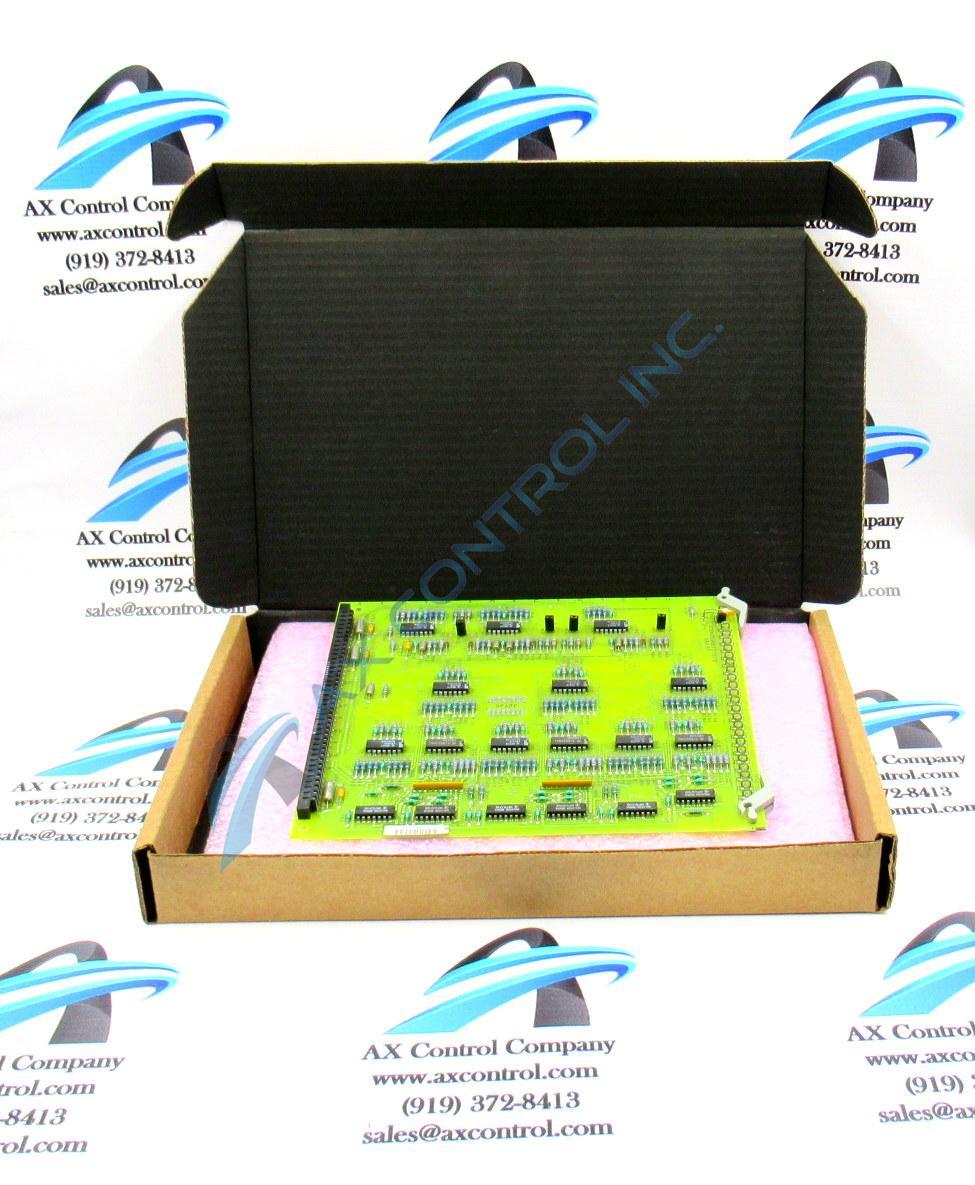

The DS3800NBID has a total of eighteen integrated circuits. These integrated circuits cover a lot of space on the board and are labeled with the letter U. Many capacitors in colors like blue, silver, and red are located all around the DS3800NBID. These capacitors are labeled with the initial C. Many resistors are located on the DS3800NBID and have different colored bands. These resistors can be identified with the letter R. The bands on each resistor symbolize the device’s resistance capability. The DS3800NBID has one orange LED, alternately known as a light-emitting diode, in the upper part of the card. This diode is labeled with the initials CR and is known as CR5. All of the other diodes around the board are non-light-emitting. These diodes are also labeled with the initials CR. In a line on the upper edge of the board are twenty-two test points labeled with the initials TP. The DS3800NBID features a couple of resistor networks that are identifiable with the initials RN, as RN1 and RN2. Featured near the bottom of the DS3800NBID is a connector port. Using this port, extra boards or extra parts can be attached to the card.

AX Control is committed to customer service and ships all products in a manner which will dispel any static energy before the product is handled by the operator.

Repair Services For DS3800NBID

Type Lead Time Price Action
Repair Service 1-2 weeks $304

Our highly skilled technicians can repair your DS3800NBID. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
