DS3800HSCJ1B1B

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product

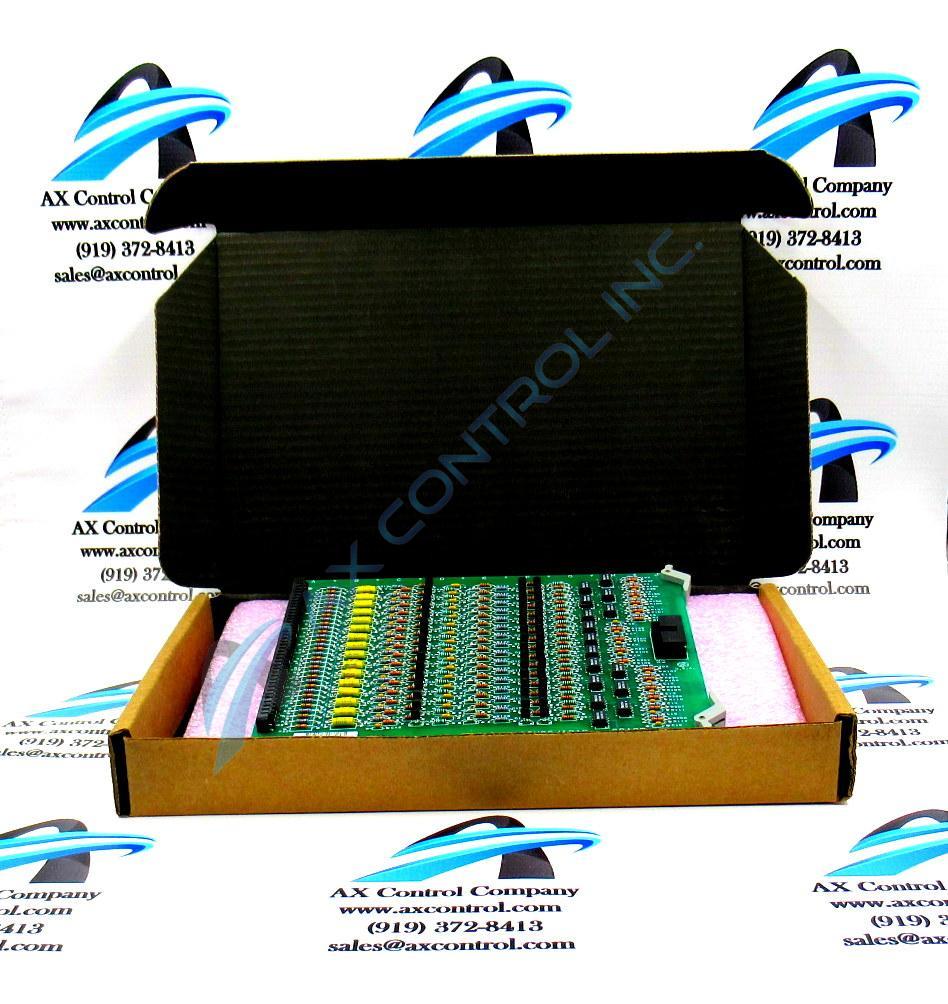

This DS3800HSCJ1B1B Hi Level Isolator Card was originally produced for the Mark IV Turbine Control System Series.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS3800HSCJ1B1B to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800HSCJ1B1B
  • SKU: DS3800HSCJ1B1BGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

DS3800HSCJ1B1B Technical Specifications

Manufacturer General Electric
GE Mark Series Mark IV Speedtronic
Functional Description DS3800HSCJ1B1B Hi Level Isolator Card
Functional Part Number DS3800HSCJ1B1B

About the DS3800HSCJ1B1B

Mark IV Series Information

The DS3800HSCJ1B1B printed circuit board, or PCB, is a circuit board in the Mark IV series manufactured by General Electric (GE). The Speedtronic Mark IV is a series that regulates the operations of both steam and gas turbines. The Mark systems have been relied on to automate turbine operations since the first Mark system (Mark I) was created in the late 1960s. The development of the Mark IV was the result of developing technology for several decades. The processes used in the Mark IV series have been developed since the late 1940s.

The Mark IV turbine control series automates many different processes in a turbine system. The Mark IV is responsible for the control of fuels in different forms and does so according to the speed and load control requirements of the turbine. Mark IV is responsible is in charge of the control of temperatures, sequencing automatic startup, cooldown, and shutdown. This system protects the turbine and the turbine’s operators from adverse operating conditions and as well as dangerous situations.


Hardware Tips and Specifications

DS3800HSCJ1B1B is a circuit board which is a high level isolator. Using the isolator circuit card, circuits, equipment, and people can be protected from shock and short circuits. Ground loops are reduced by the isolator cards. With an isolator board, the circuits are protected from faults. Conducted noise is also reduced and accurate and safe measurements can be taken.

Positioned on the DS3800HSCJ1B1B are a variety of different circuit board components. Several capacitors, resistors, and diodes, as well as transformers and transistors in various sizes and colors, may be found on the DS3800HSCJ1B1B.


DS3800HSCJ1B1B Hi Level Isolator Card Part Number

The DS3800HSCJ1B1B Hi Level Isolator Card part number, in this case, can also be accessed to describe this DS3800HSCJ1B1B Hi Level Isolator Card device here. Some of the important qualities included in this specific medium would have to be the DS3800HSCJ1B1B Hi Level Isolator Card's:

  • DS3800 Normal Assembly Style
  • Domestic GE Manufacture
  • HSCJ Functional Acronym
  • Group One Mark Series Grouping
  • Unique Revision History

Frequently Asked Questions about DS3800HSCJ1B1B

What length of warranty would apply to this DS3800HSCJ1B1B after I buy it through the site here?

This DS3800HSCJ1B1B device would accept a complete three-year device warranty following any original purchase made here today.

Could the DS3800HSCJ1B1B here slot into a VME Rack Mounting Assembly?

Yes. The presence of an installation faceplate in this DS3800HSCJ1B1B device's product makeup is telling of its VME Rack intended product placment.
