Product Description

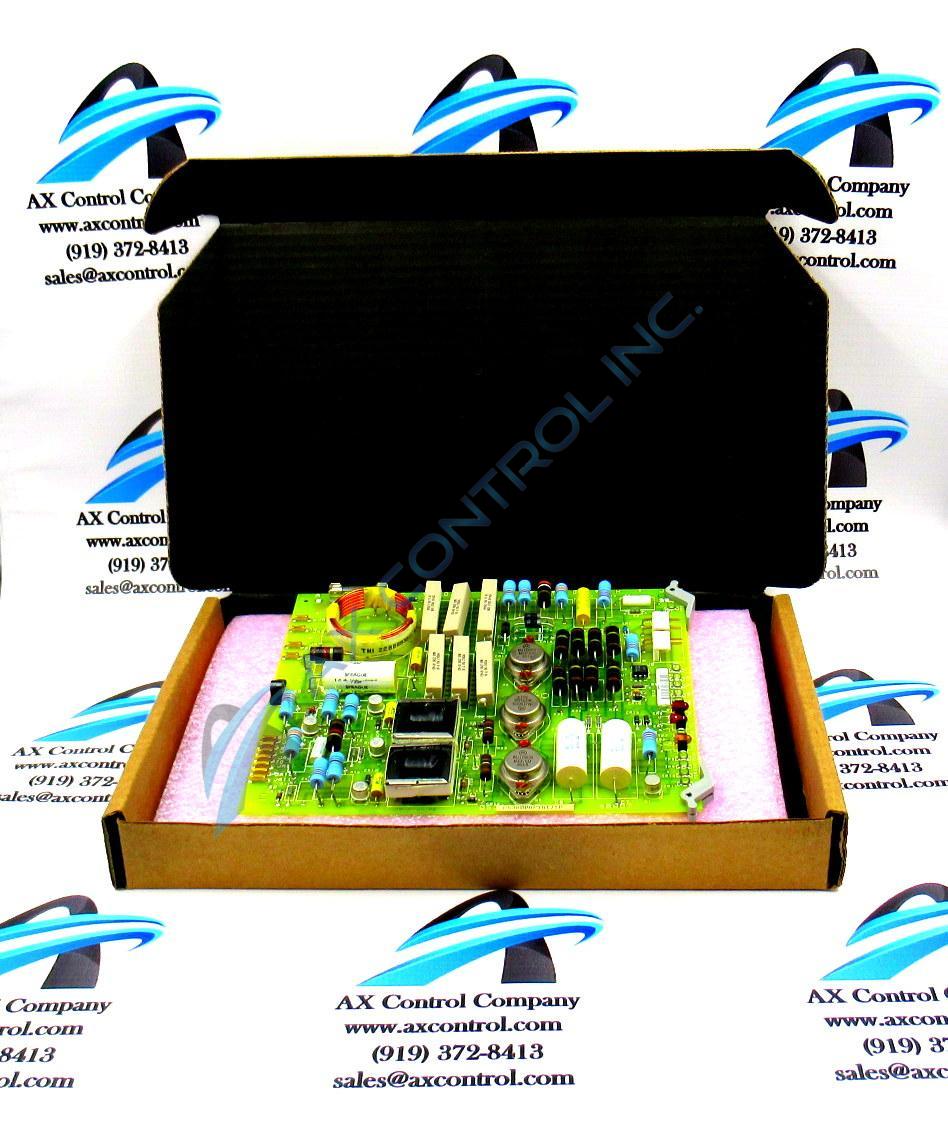

The DS3800HPTN1J1H is for the Mark IV Speedtronic Turbine line constructed by GE (General Electric). The one edge of the DS3800HPTN1J1H has A through H on one side. All components on the DS3800HPTN1J1H board are distinguishable with an alphanumeric label. There are ten connector prongs split between the two short edges of the board. There are over twenty black and blue colored resistors. The DS3800HPTN1J1H has six extended resistors that have a power rating of eighteen ohms with a variance of five percent up or down and are also has a ten-watt rating as well. The DS3800HPTN1J1H has three light emitting diodes (LED) one is amber and two are red. The DS3800HPTN1J1H has numerous capacitors.  There are five little capacitors, one normal size capacitor, and three bulky capacitors. There nearly twenty-five diodes in an array of shades. The DS3800HPTN1J1H has two transformers one placed above the other. Transformers are used to handover electrical energy amongst multiple circuits by means of electromagnetic induction. To the side of the transformers are four golden thin spines. There are five petite column-shaped transistors and three larger round transistors with wings to allow them to be attached to the board. Transistors are applied to aid in escalating or exchanging an electrical power or electronic signals. The DS3800HPTN1J1H has an orange and red circular coil which retains energy in a magnetic field it creates when an electric current flows through it. There is also a clear fuse. The DS3800HPTN1 has a pair of hooks and a few places to insert a few screws to mount the board in place.



AX Control has a diverse selection of automation supplies. Call AX Control today.

Repair Services For DS3800HPTN1J1H

Type Lead Time Price Action
Repair Service 1-2 weeks $500

Our highly skilled technicians can repair your DS3800HPTN1J1H. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
