DS3800HPIB

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
PANEL INTERFACE BOARD

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a DS3800HPIB to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: DS3800HPIB
  • SKU: DS3800HPIBGBTC
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark IV DS3800

About the DS3800HPIB

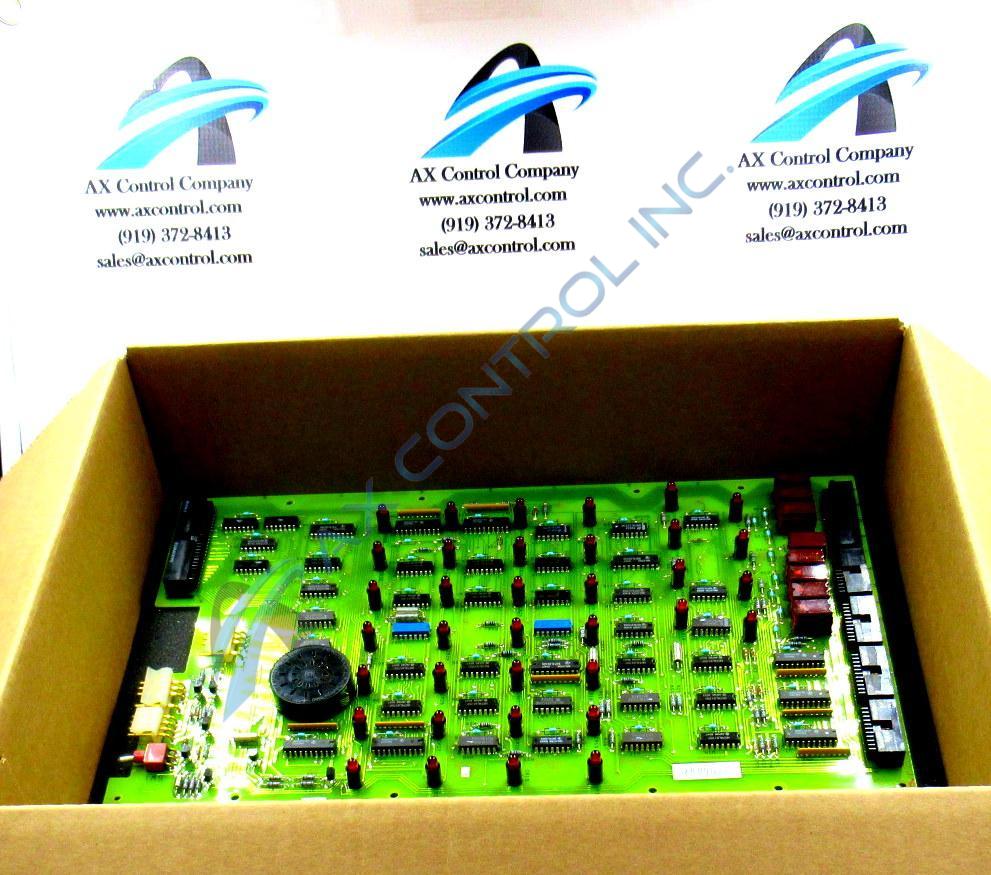

The DS3800HPIB is part of the Speedtronic Mark IV Line by General Electric (GE). The DS3800HPIB is a large circuit board that features eight connection terminals, varying in size along both sides of the circuit board. There is a small red square on the bottom left with a toggle switch. The DS3800HPIB has around fifty small sky blue colored diodes. The DS3800HPIB also has around half a dozen silver diodes. The DS3800HPIB also has a mixture of around forty-five EPROM and EEPROMS. The EPROM and EEPROMs store all the programming for the circuit board to perform its task efficiently. The EPROMs are able to be re-programmed/ updated as needed. The EEPROM, however, cannot be changed. The DS3800HPIB has eight bar-shaped capacitors that connect to the circuit board with ten prongs each. These capacitors are a golden yellow color. The DS3800HPIB also features thirty-six LEDs or light-emitting diodes. These LEDs light up at various times as the energy current flows across the board and as the programming deems necessary. The DS3800HPIB also features around forty-five resistors. The resistors are small and light blue in color. Each resistor has a unique banding pattern of various colors. These colored stripes indicate the number of Ohms that each resistor can handle. Each piece on the DS3800HPIB is labeled with an alphanumeric combination. General Electric's (GE) stamp is also present on the board along with the part number DS3800HPIB.

AX Control has a dedicated team ready to give you a simple fast quote today.

Repair Services For DS3800HPIB

Type Lead Time Price Action
Repair Service 1-2 weeks $453

Our highly skilled technicians can repair your DS3800HPIB. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
